Index name |
Indicator parameters |
|
Load rating |
20kg |
|
Angular position range |
Continuous unlimited |
|
Triaxial angular position positioning accuracy |
±5" |
|
Triaxial Angle position repeatability |
±3" |
|
Triaxial angular position resolution |
±0.36" |
|
Angular rate accuracy, rate smoothness |
ω<1°/s, 5e-003(1° average), 1°≤ω<10°/s, 5e-004 (10° average); 10°/s≤ω, 5e-005 (360° average) |
|
Three axis minimum speed |
0.01°/s |
|
Maximum angular rate |
Inside axis: 450°/s; Middle axis: 250°/s; Outer axis: 150°/s |
|
Maximum angular acceleration |
Inside frame: 400°/S²; Middle box: 300/S²; Outer box: 200°/S² |
|
Countertop size |
250mm×250mm×200mm |
|
Countertop flatness |
0.02mm |
|
Mesa leakage |
1mT (10mm from countertop) |
|
Axis perpendicularity |
Inner frame and middle frame: ±5"; Middle frame and outside frame: ±5" |
|
Angle turning accuracy |
±5" |
|
Angular position control accuracy |
±12" |
|
Average operating time |
MTBF≥1000h |
|

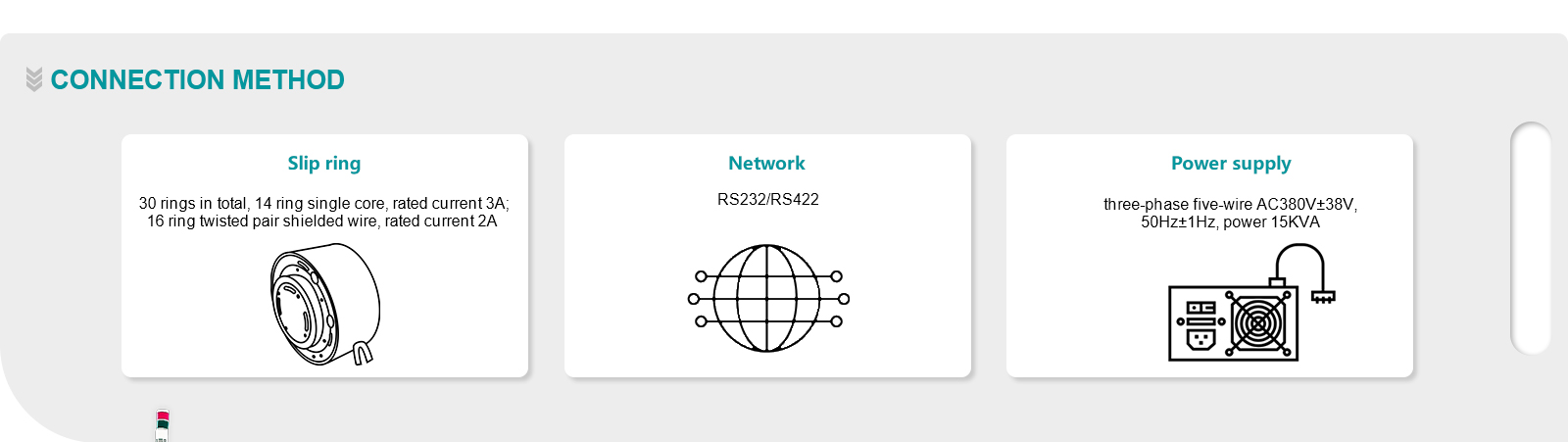

Electric slip ring user channel |
25 ring, 3A |
