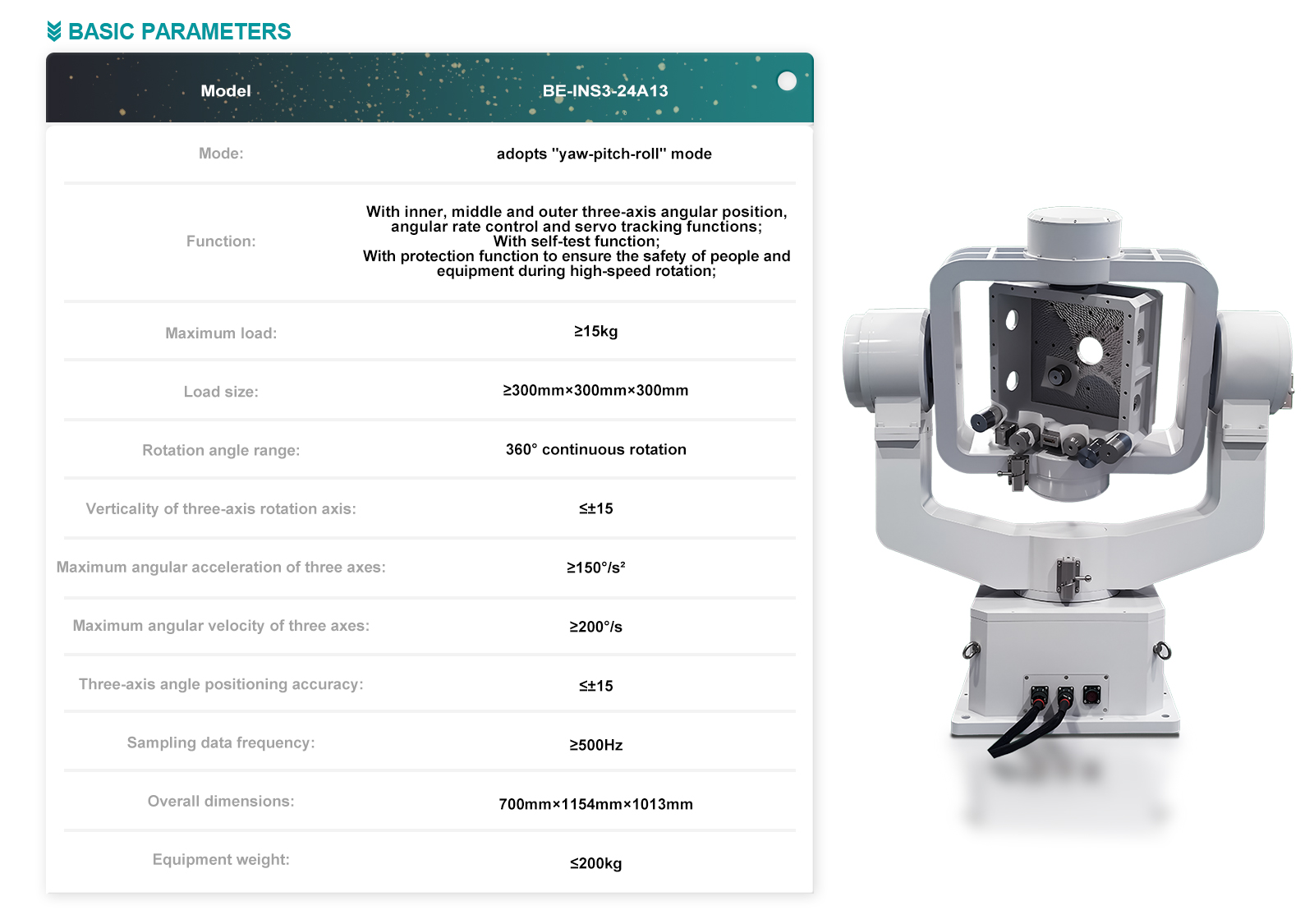

| Technical parameter | |
|---|---|
| Mode: | adopts "yaw-pitch-roll" mode; |
| Function: | With inner, middle and outer three-axis angular position, angular rate control and servo tracking functions; With self-test function; With protection function to ensure the safety of people and equipment during high-speed rotation; |
| Maximum load: | ≥15kg |
| Load size: | ≥300mm×300mm×300mm; |
| Rotation angle range: | 360° continuous rotation |
| Verticality of three-axis rotation axis: | ≤±15" |
| Maximum angular acceleration of three axes | ≥150°/s² |
| Maximum angular velocity of three axes | ≥200°/s |
| Three-axis angle positioning accuracy | ≤±15" |
| Sampling data frequency | ≥500Hz |
| Overall dimensions: | 700mm×1154mm×1013mm; |
| Equipment weight: | ≤200kg |
