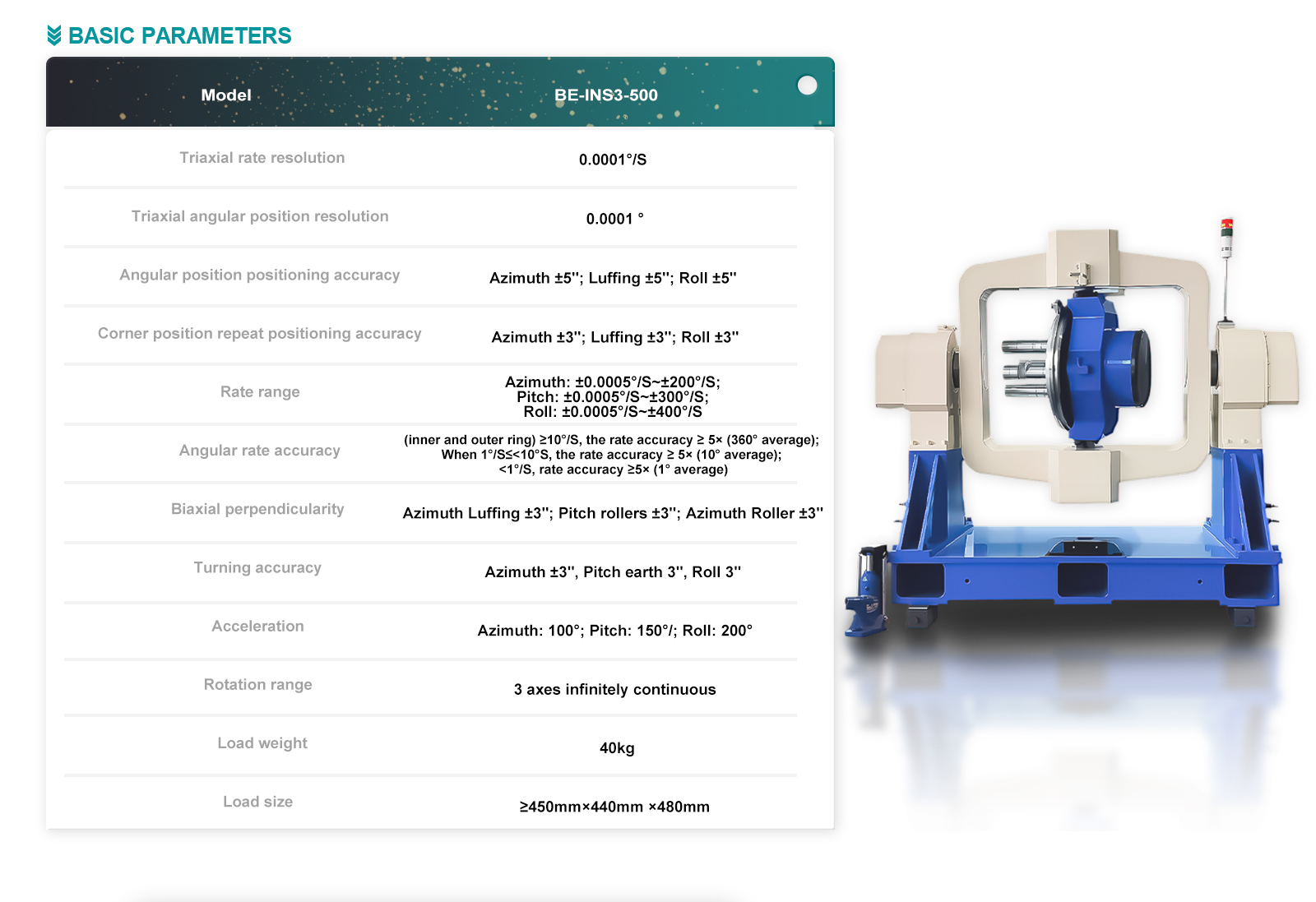

——Technical parameter——
|
Index name |
Indicator parameters |
|
Triaxial rate resolution |
0.0001°/S |
|
Triaxial angular position resolution |
0.0001 ° |
|
Angular position positioning accuracy |
Azimuth ±5"; Luffing ±5"; Roll ±5" |
|
Corner position repeat positioning accuracy |
Azimuth ±3"; Luffing ±3"; Roll ±3" |
|
Rate range |
Azimuth: ±0.0005°/S~±200°/S; Pitch: ±0.0005°/S~±300°/S; Roll: ±0.0005°/S~±400°/S |
|
Angular rate accuracy |
(inner and outer ring) ≥10°/S, the rate accuracy ≥ 5× (360° average); When 1°/S≤<10°S, the rate accuracy ≥ 5× (10° average); <1°/S, rate accuracy ≥5× (1° average) |
|
Biaxial perpendicularity |
Azimuth Luffing ±3"; Pitch rollers ±3"; Azimuth Roller ±3" |
|
Turning accuracy |
Azimuth ±3", Pitch earth 3", Roll 3" |
|
Acceleration |
Azimuth: 100°; Pitch: 150°/; Roll: 200° |
|
Rotation range |
3 axes infinitely continuous |
|
Load weight |
40kg |
|
Load size |
≥450mm×440mm ×480mm |
