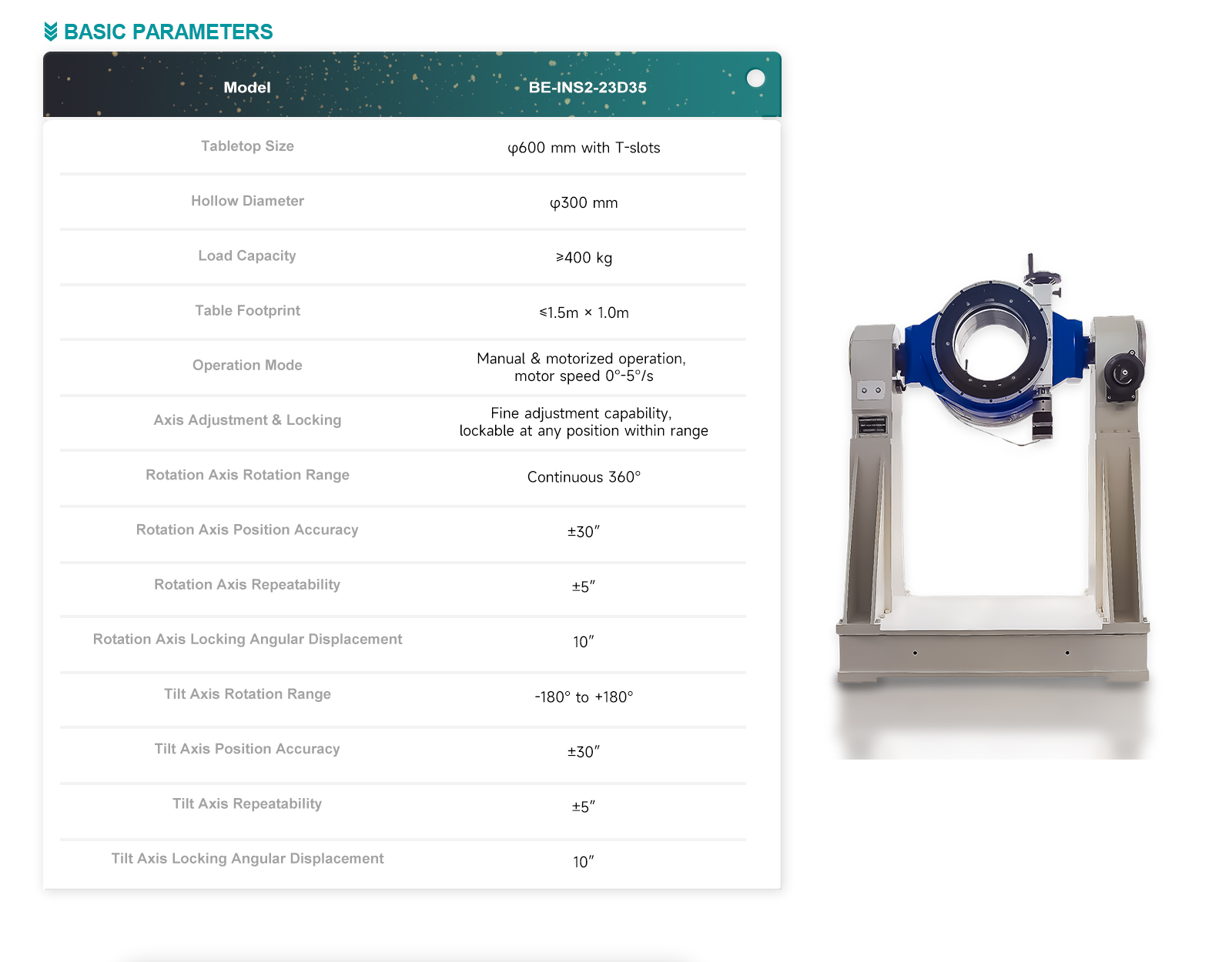

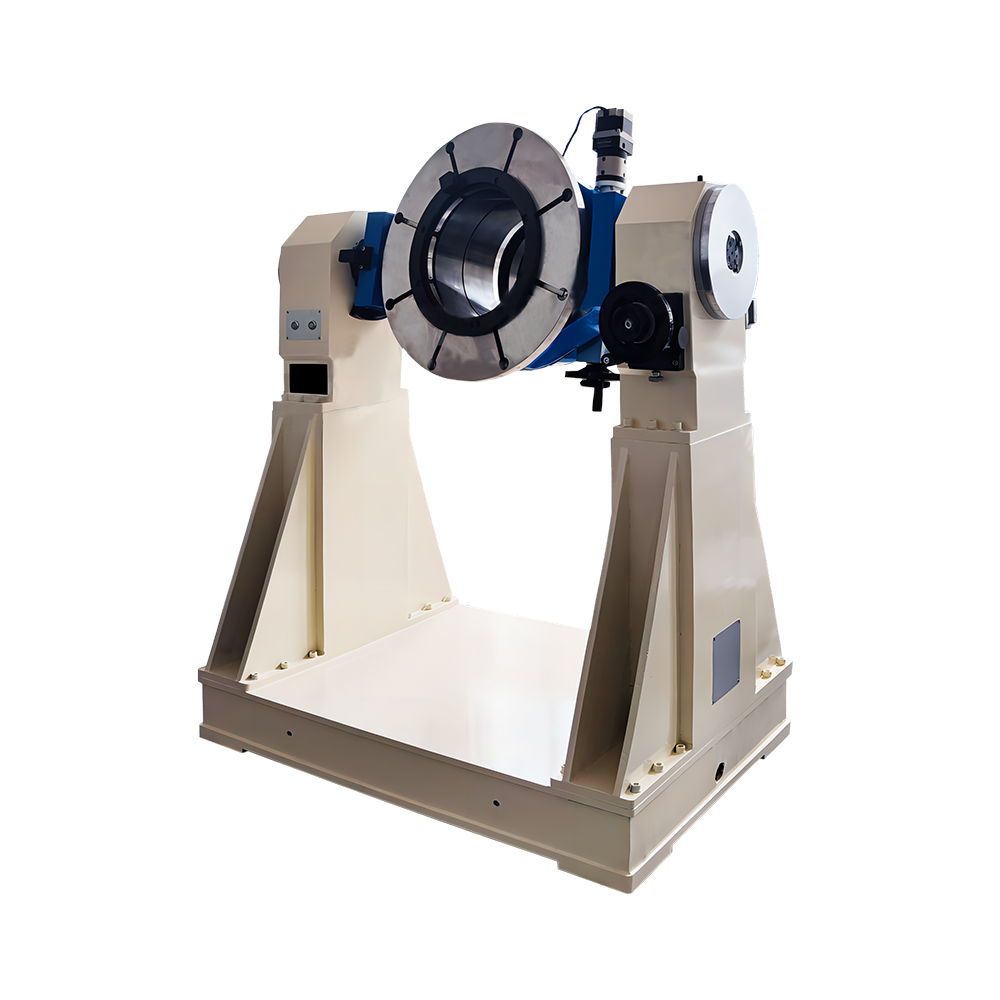

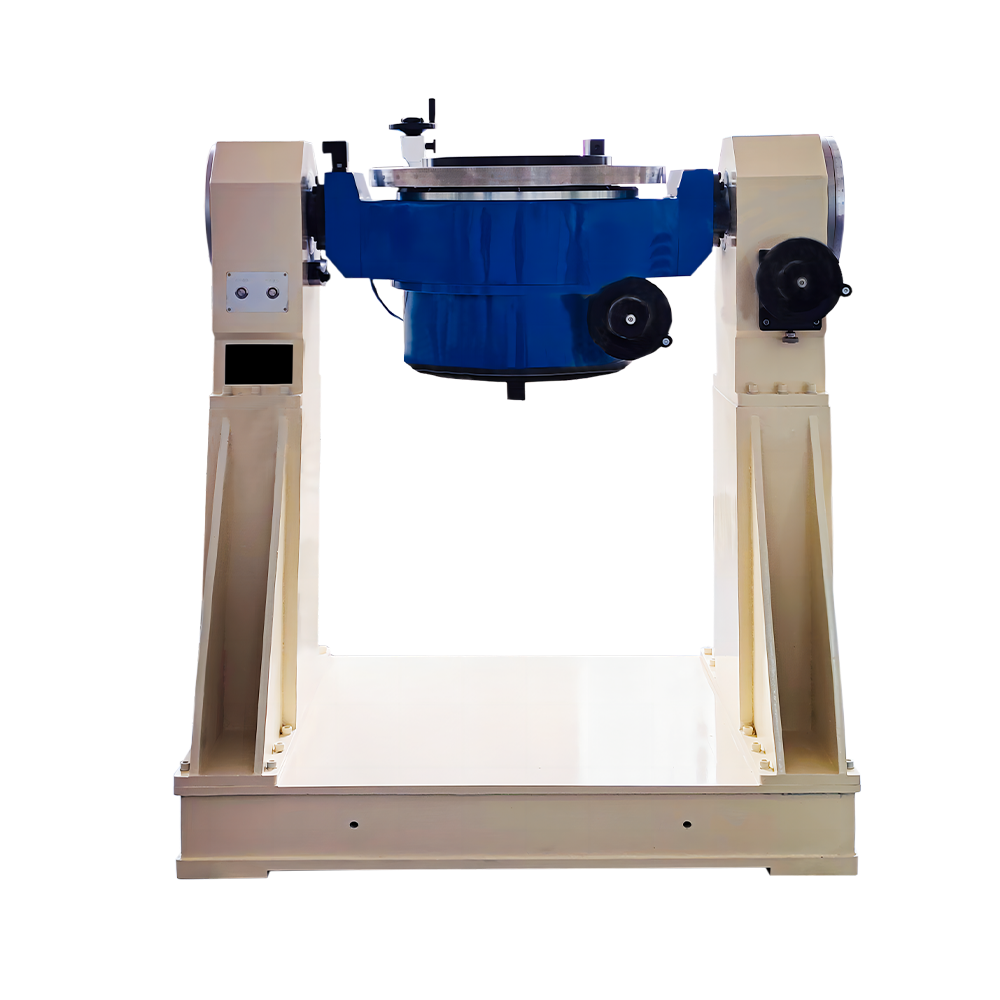

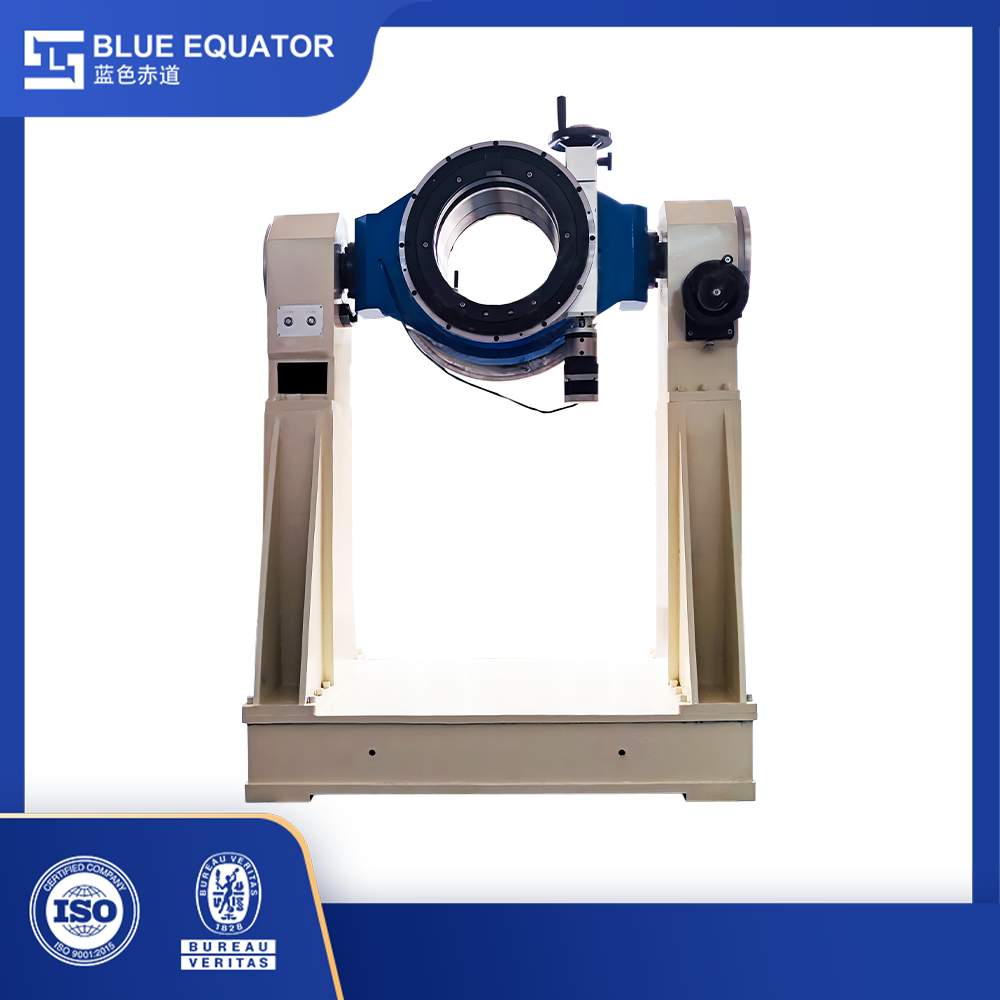

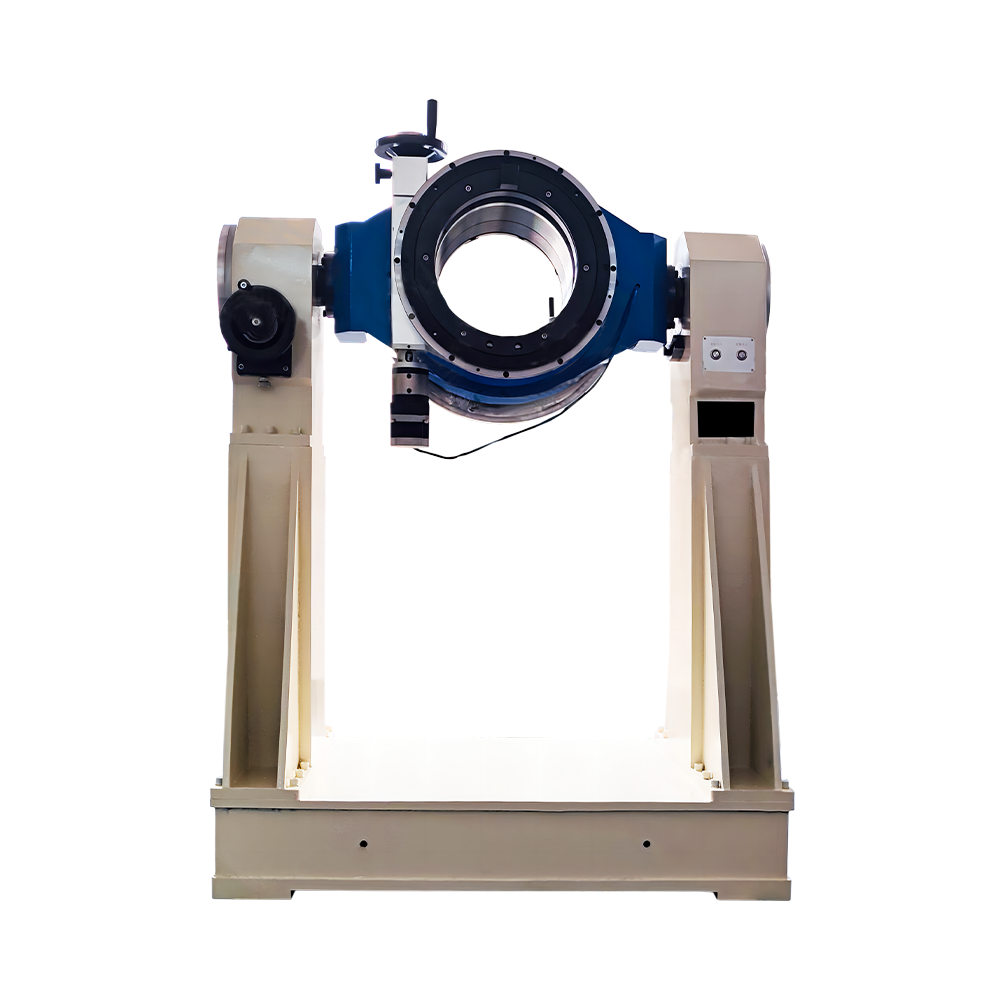

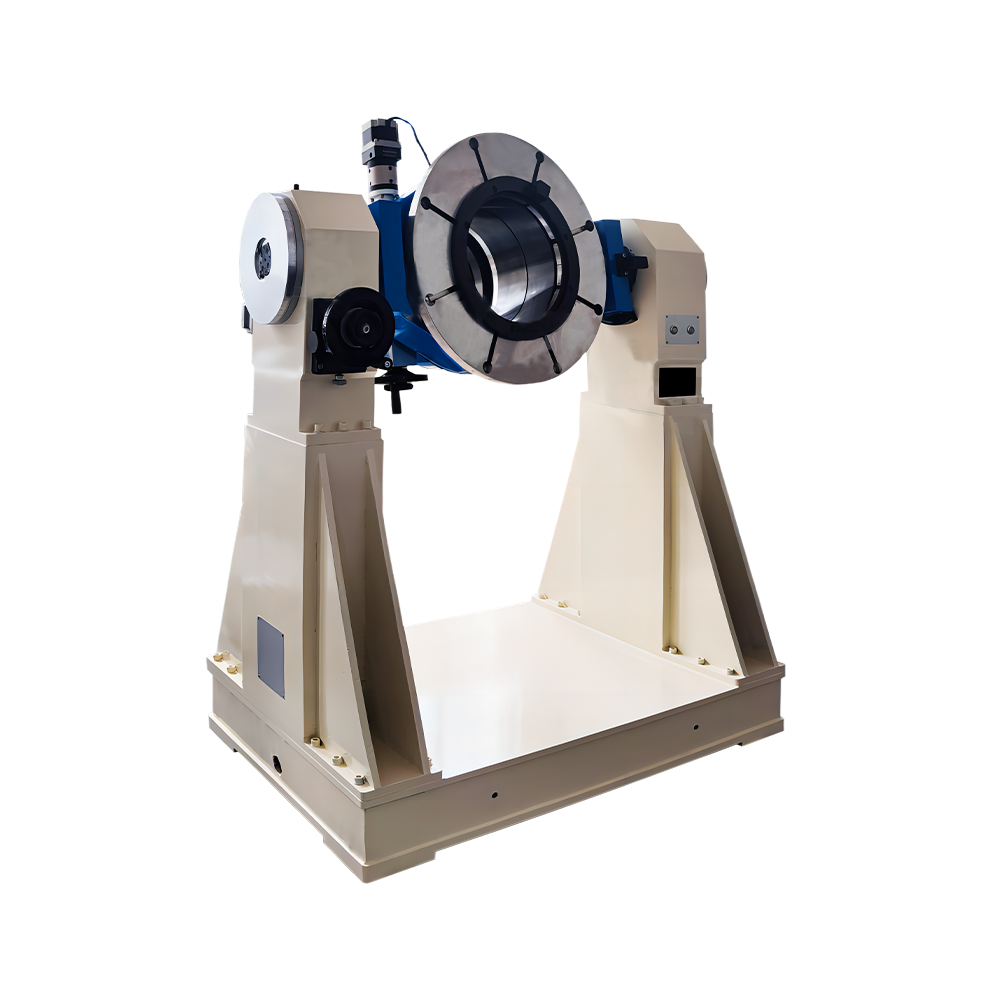

Technical Parameters: Two-Axis Rotary Table
|
|
| Parameter | Specification |
| Table Dimensions |
|
|
|
|
|
| Load Weight | ≥400 kg |
| Platform Area | ≤1.5 m × 1.0 m |
| Operation Mode |
|
|
|
| Fine-tuning & Locking | The shaft system has fine-tuning function and can be locked at any position within the movement range. |
| Rotation Axis | • Rotation angle range: 360° continuous rotation |
| • Position accuracy: ±30'' | |
| • Repeatability: ±5'' | |
| • Locking angular displacement: 10'' | |
| Pitch Axis | • Rotation angle range: -180° ~ +180° |
| • Position accuracy: ±30'' | |
| • Repeatability: ±5'' | |
| • Locking angular displacement: 10'' | |
