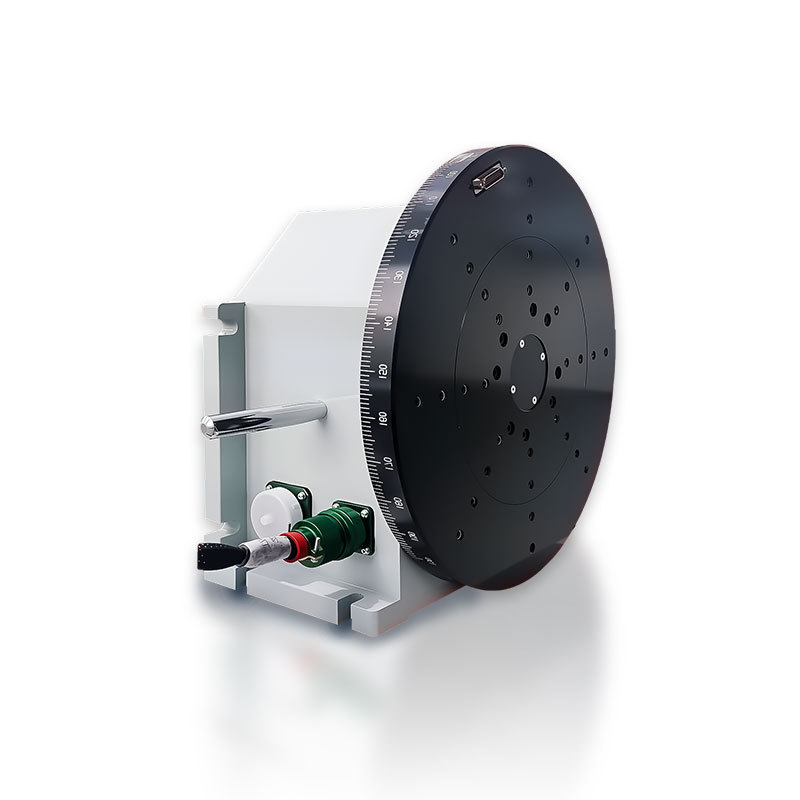

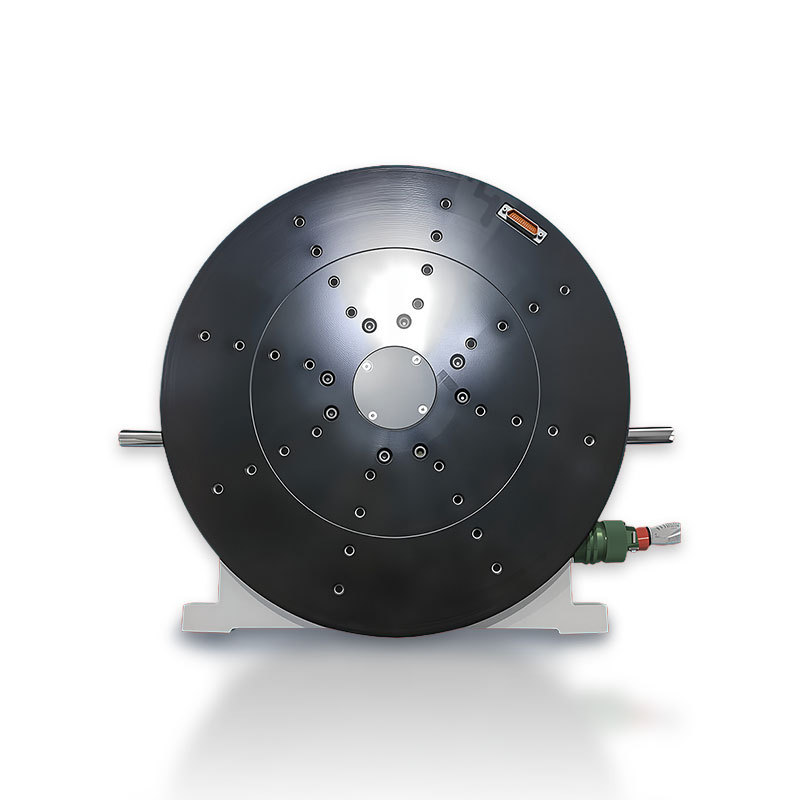

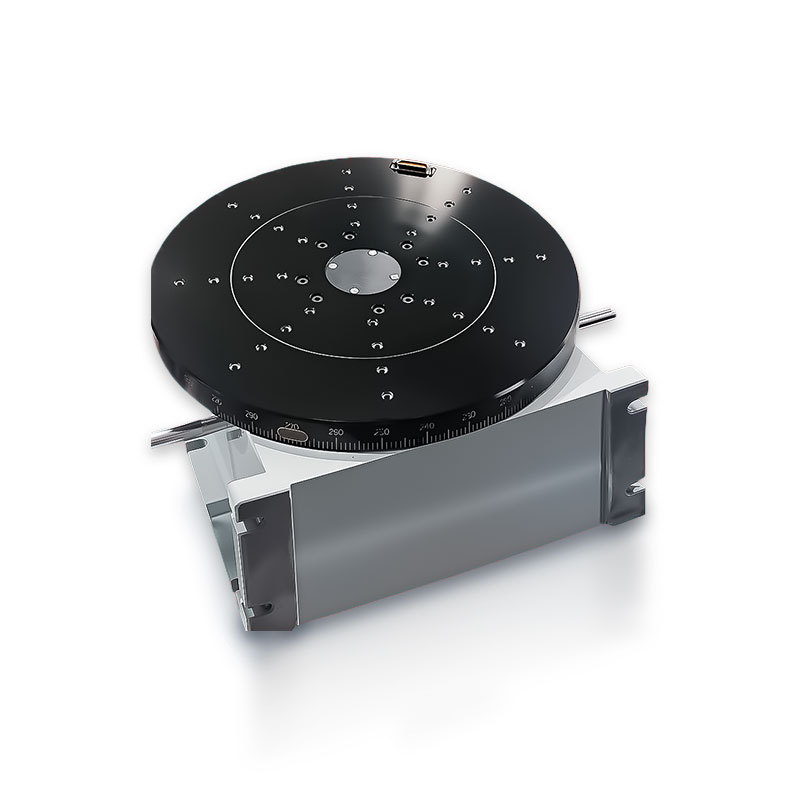

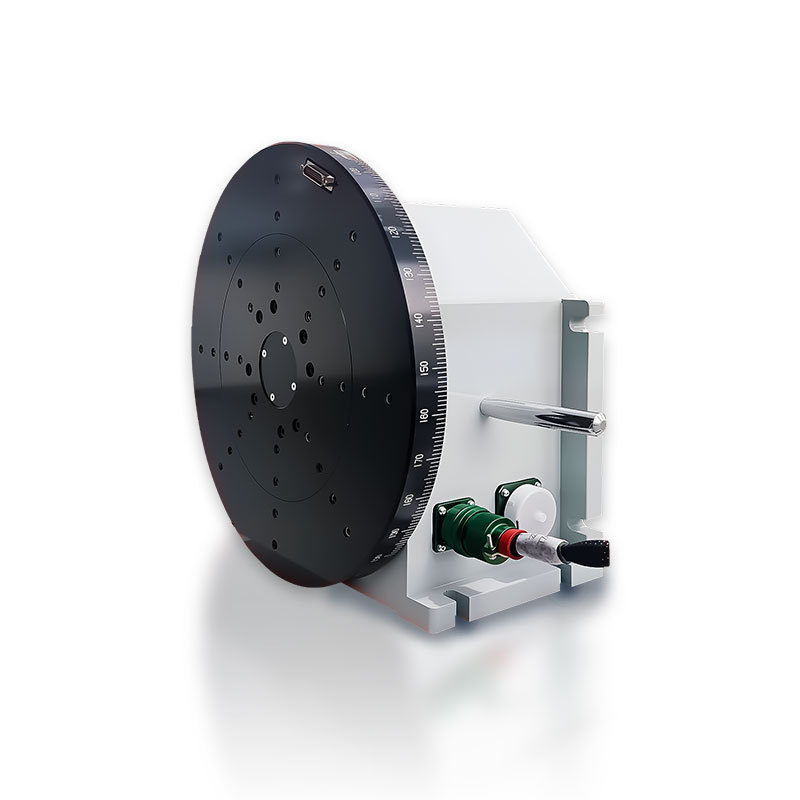

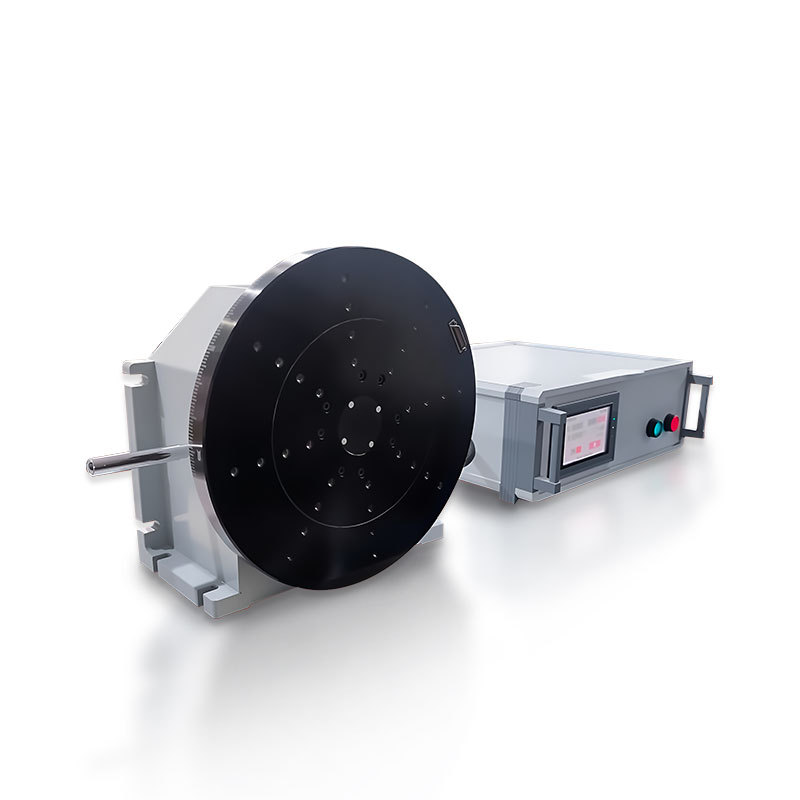

High-precision vertical and horizontal Dual-Purpose single-axis inertial navigation test table

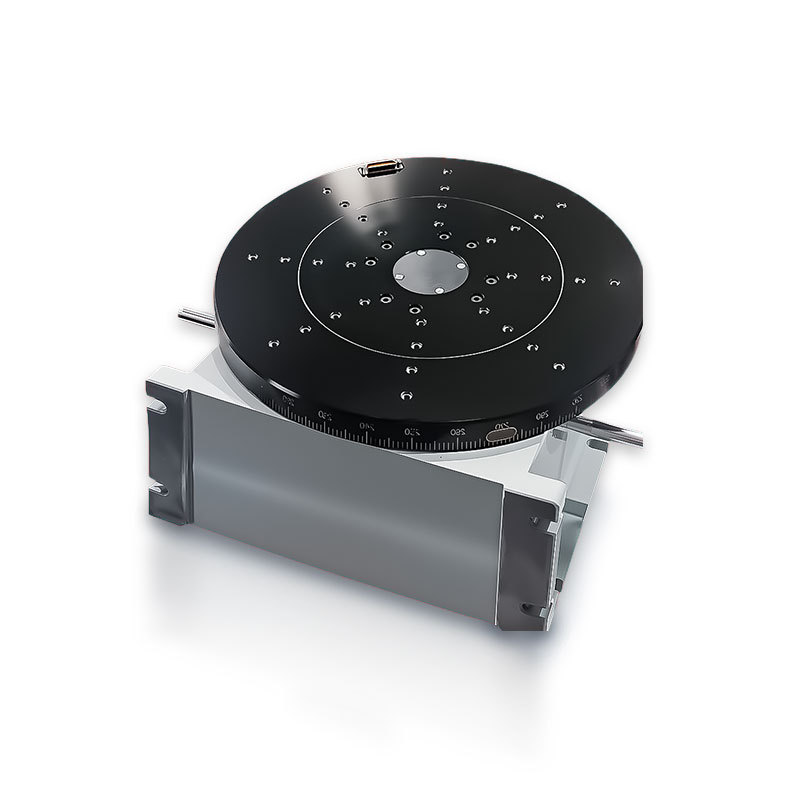

Name: High-precision vertical and horizontal Dual-Purpose single-axis inertial navigation test table
Brand: Blueequator-ai.com
SKU: BE-INS1-24A05
Availability: InStock
Rating: 5 (1 reviews)

No.BE-INS1-24A05

Unlock unparalleled testing capabilities with our High-precision Vertical and Horizontal Single-axis Inertial Navigation Test Table. Boasting a tabletop size of approximately φ320mm and a maximum load capacity of ≥25kg, this versatile table offers exceptional accuracy for inertial navigation system evaluation. With angular positioning precision of ≤±5″ and repeatability of ≤±1″, it ensures reliable and consistent testing results. The 360° continuous rotation range, coupled with a measurement resolution of ≤0.0001°, enables comprehensive testing across various scenarios. Experience a wide range of testing capabilities with speed ranges from ±0.001°/s to ±500°/s. Elevate your testing processes with our precision test table.

Countertop size ::

about φ320mm

Maximum load weight::

≥25kg

Description

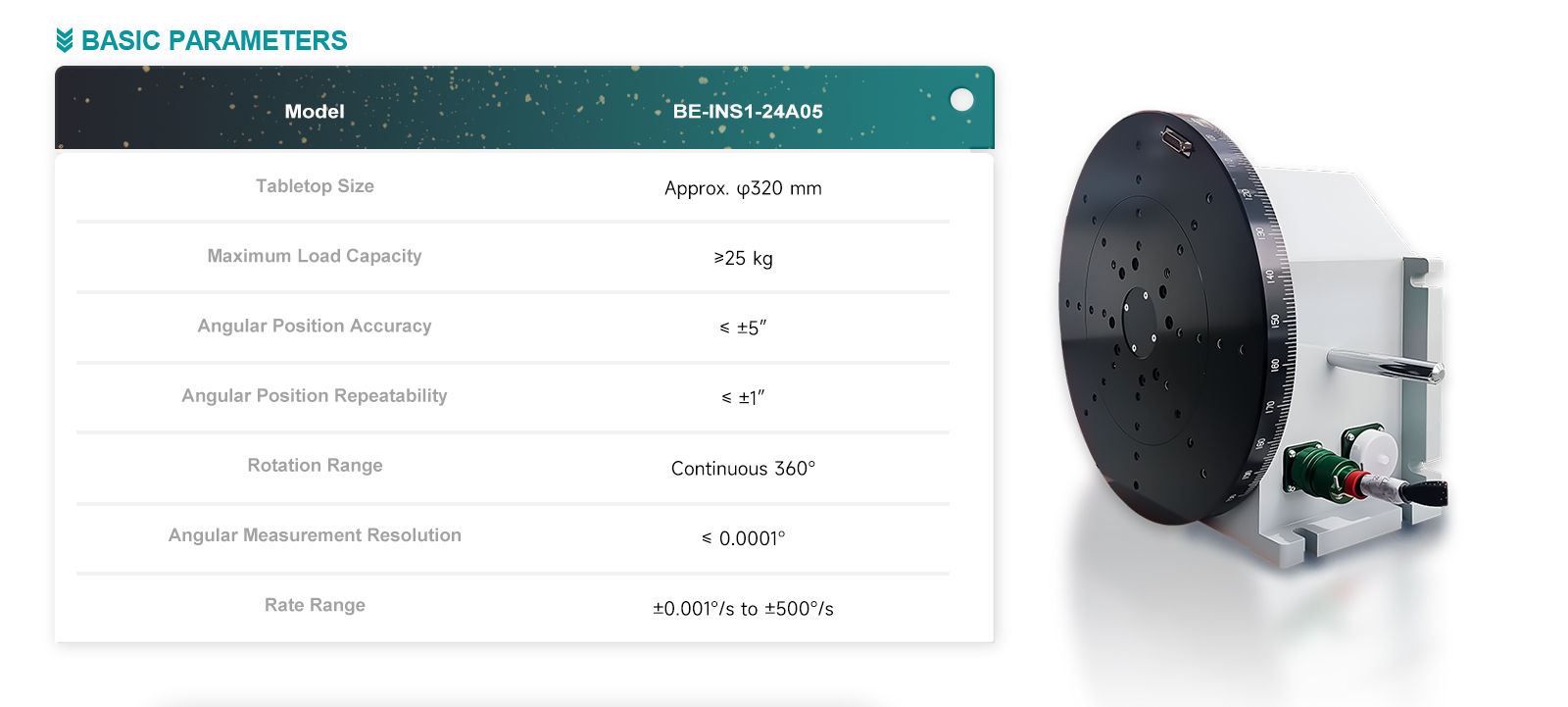

Technical Parameters
Countertop Size	≈ φ320 mm
Maximum Load Weight	≥ 25 kg
Angular Positioning Accuracy	≤ ±5″
Angular Positioning Repeatability	≤ ±1″
Rotation Angle Range	360° continuous rotation
Angular Resolution	≤ 0.0001°
Rate Range	±0.001°/s ~ ±500°/s
