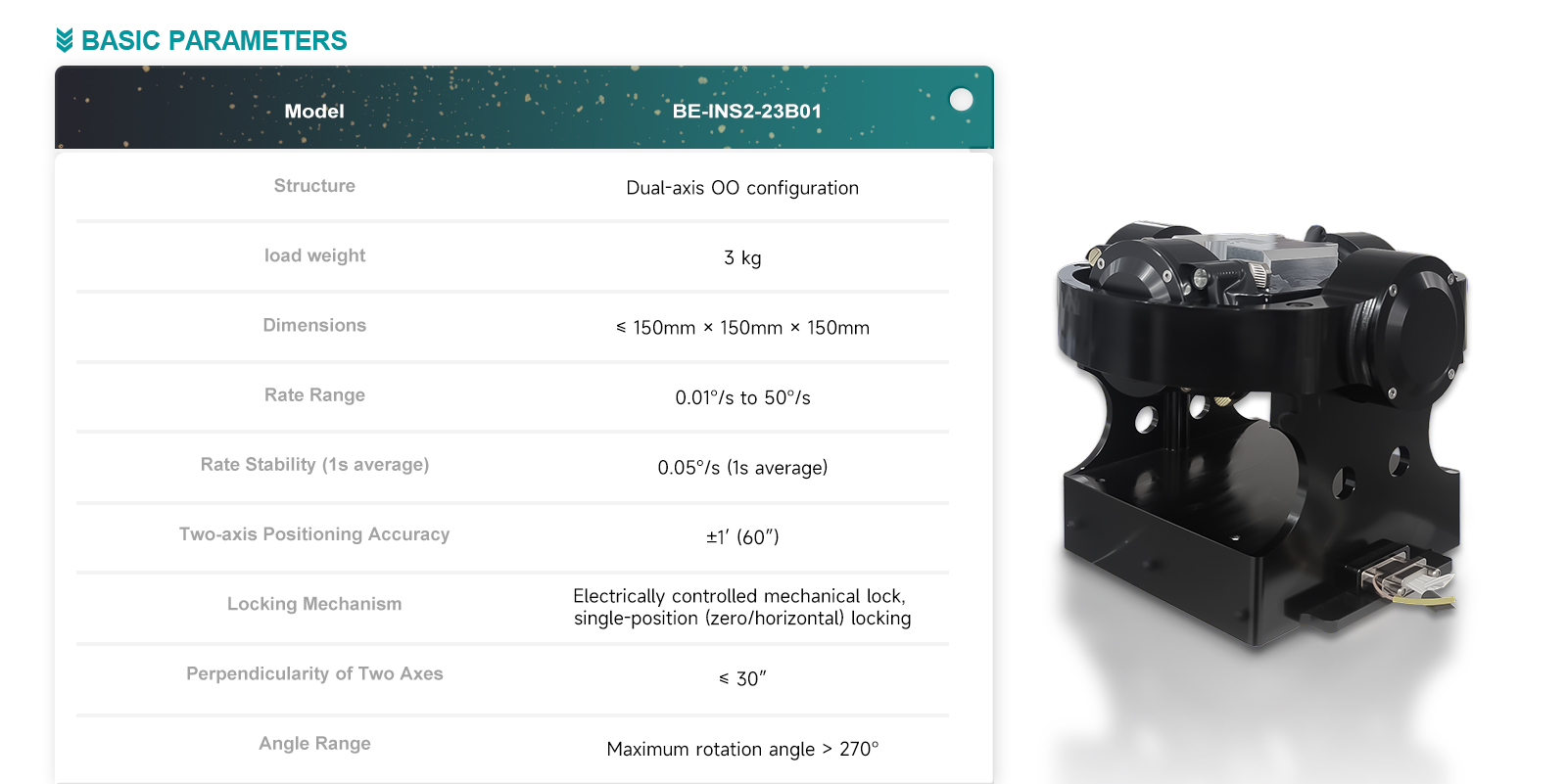

| Indicator name | Indicator parameters / description |

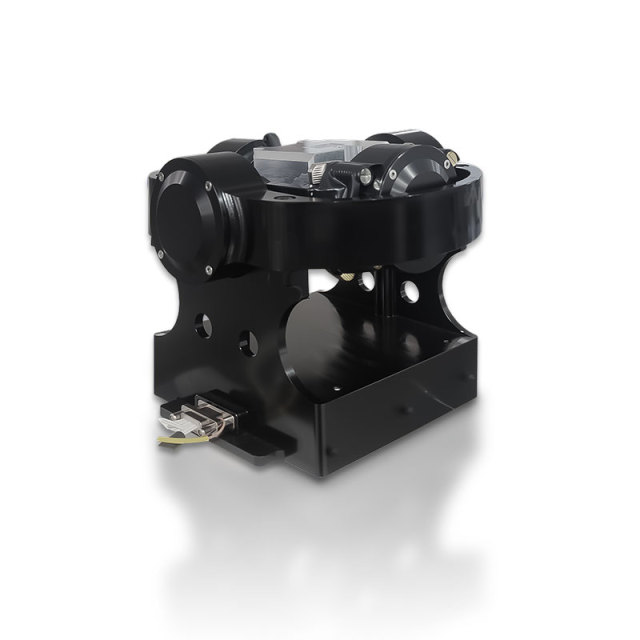

| Structure | Double axis |
| Rate range | 0.01°/s ~ 50°/s |
| Rate stability | 0.05°/s (1 second average) |
| Position accuracy of two axis rotation mechanism | ±1' (60") |
| Locking scheme | Mechanical lock (electric control), unit set (zero, horizontal position is 0) lock |
| Angle range | Maximum rotation angle greater than 270° |
| Time synchronization | IMU sends the time synchronization signal to the dual‑axis rotation mechanism, and supports the dual‑axis rotation mechanism and the IMU data synchronization output |
| Double axis transposition mechanism installation | Design the base for mechanism mounting |
| Weight | 2‑3 kg |
| Volume range | Not larger than 150 mm × 150 mm × 150 mm |

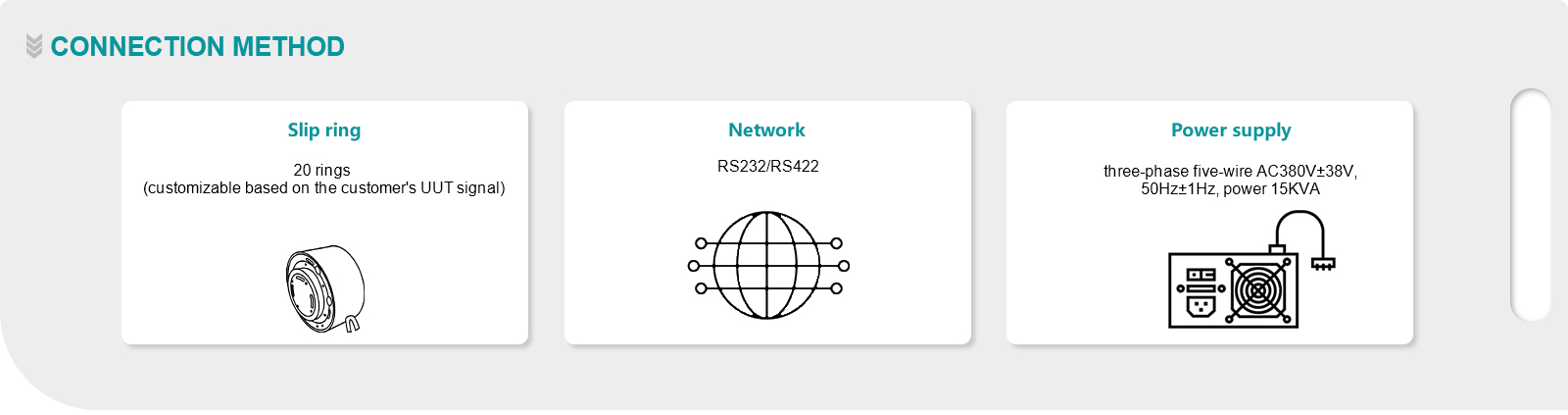

| Communication method | RS232/RS422 |
