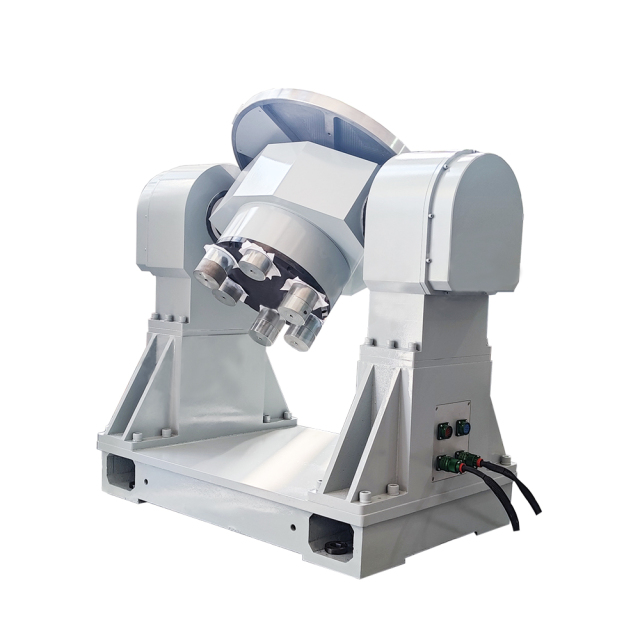

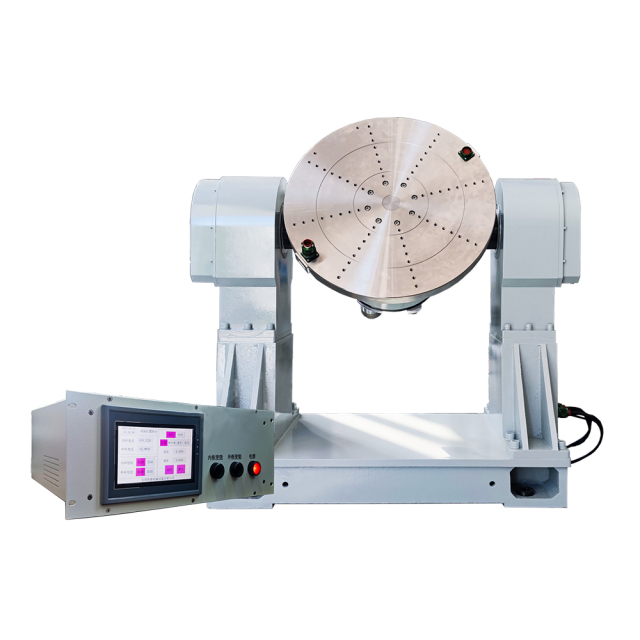

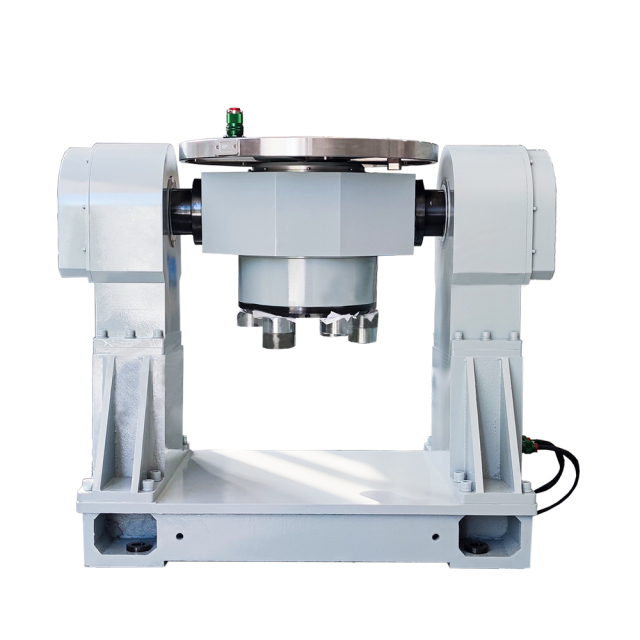

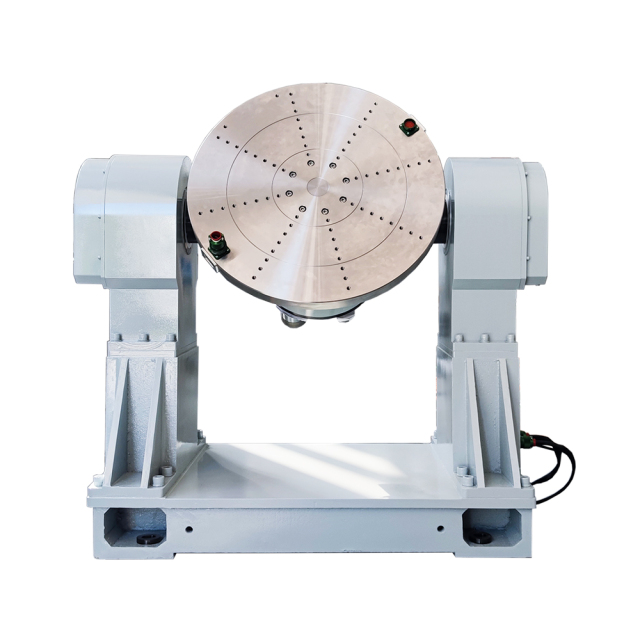

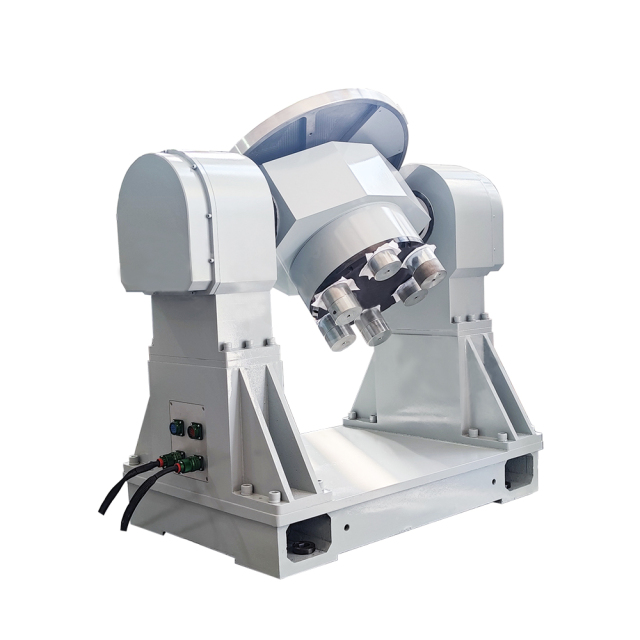

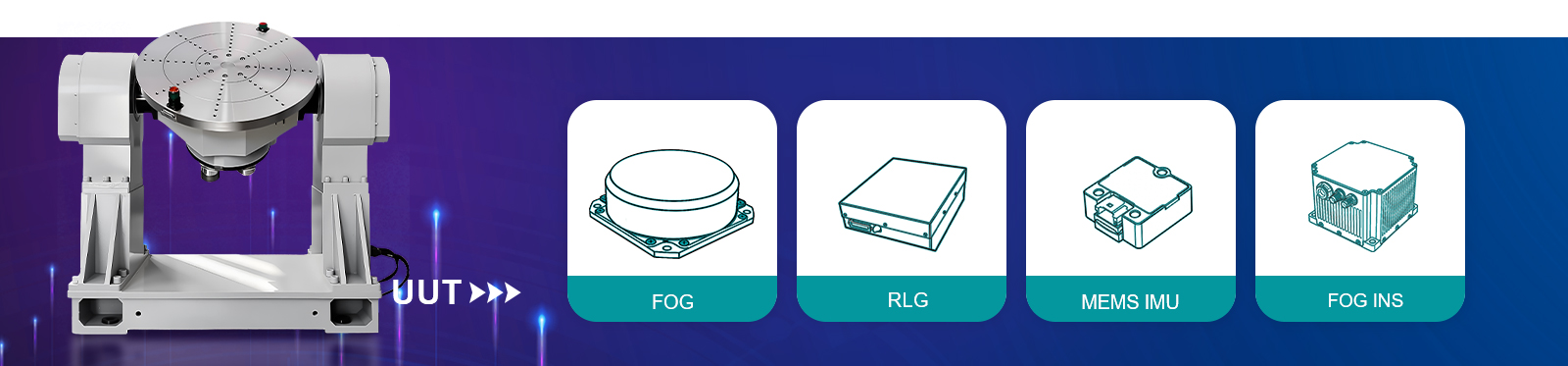

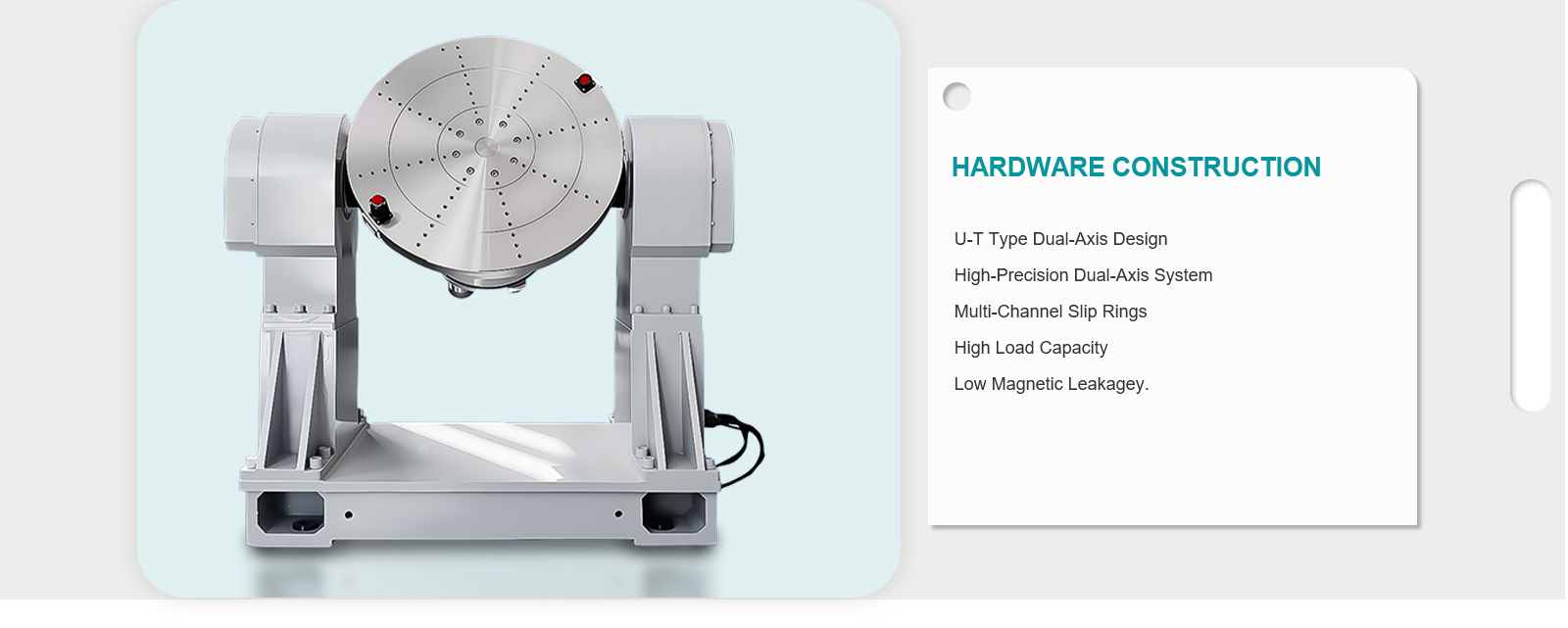

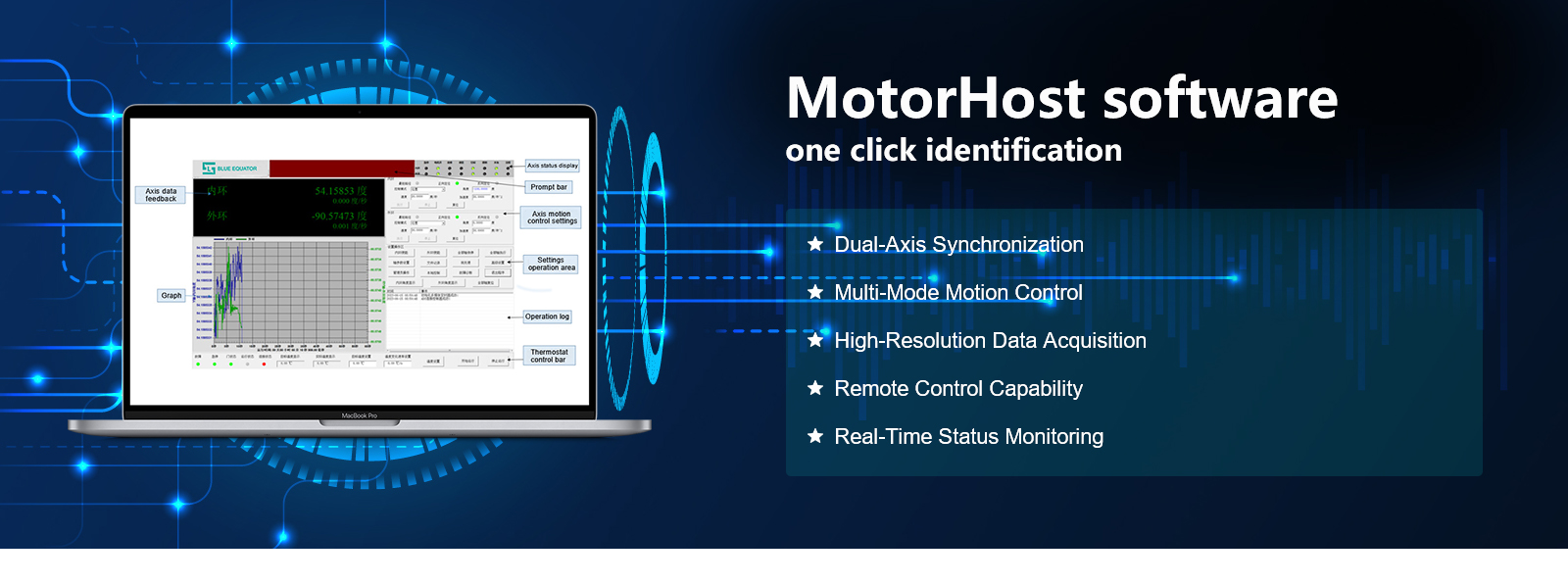

Dual axis rate table designed for inertial navigation testing helps engineers and labs solve accuracy drift and repeatability issues in velocity and position evaluation. This 580mm dual axis rate table integrates position, velocity, and swing control on a durable stainless steel platform, supporting up to 50kg load capacity for stable sensor calibration. With serial and parallel interfaces, remote operation can reduce test setup time by up to 30%, improving overall efficiency. Trusted for precision testing environments
Discover how it can optimize your workflow.

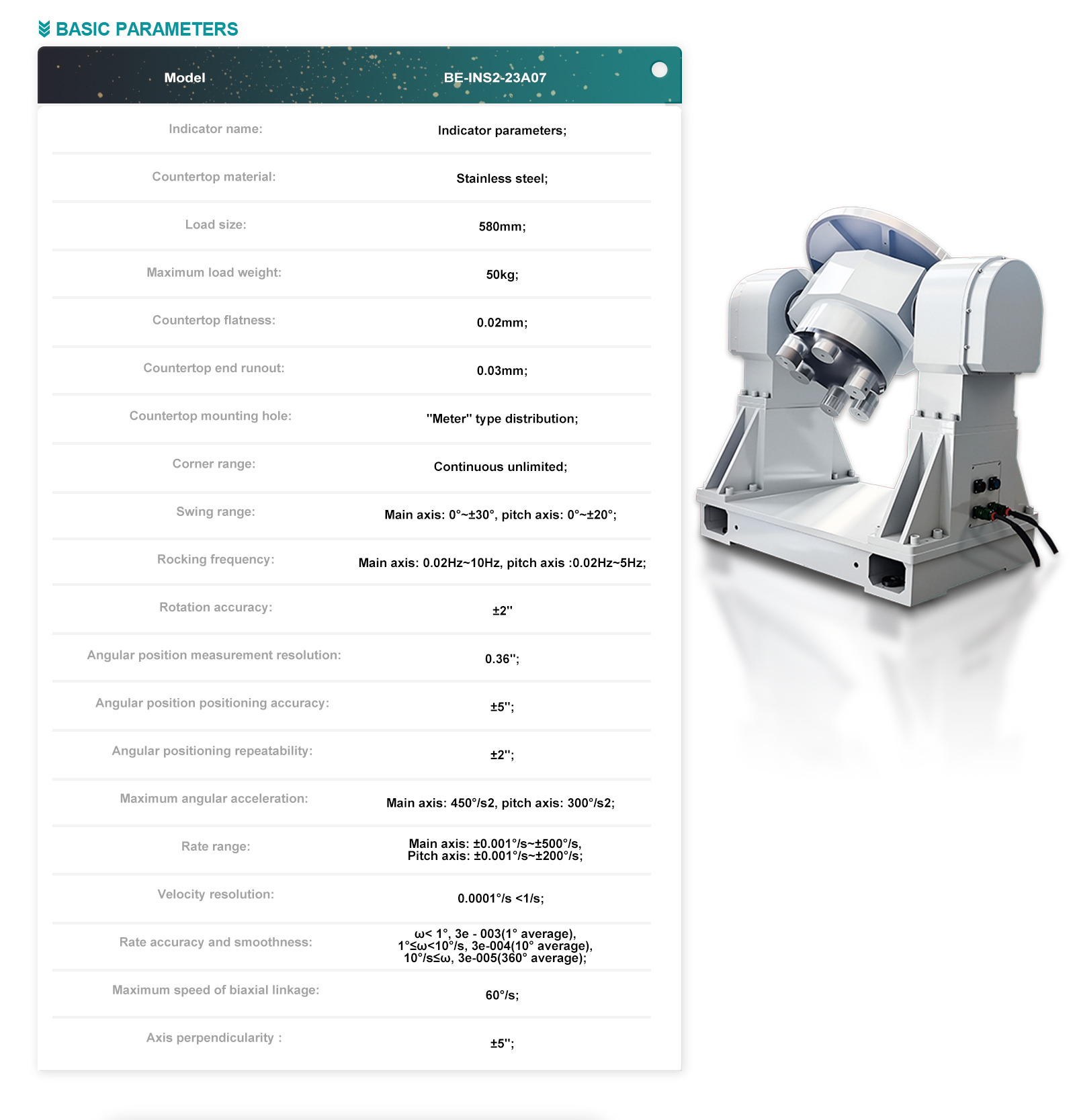

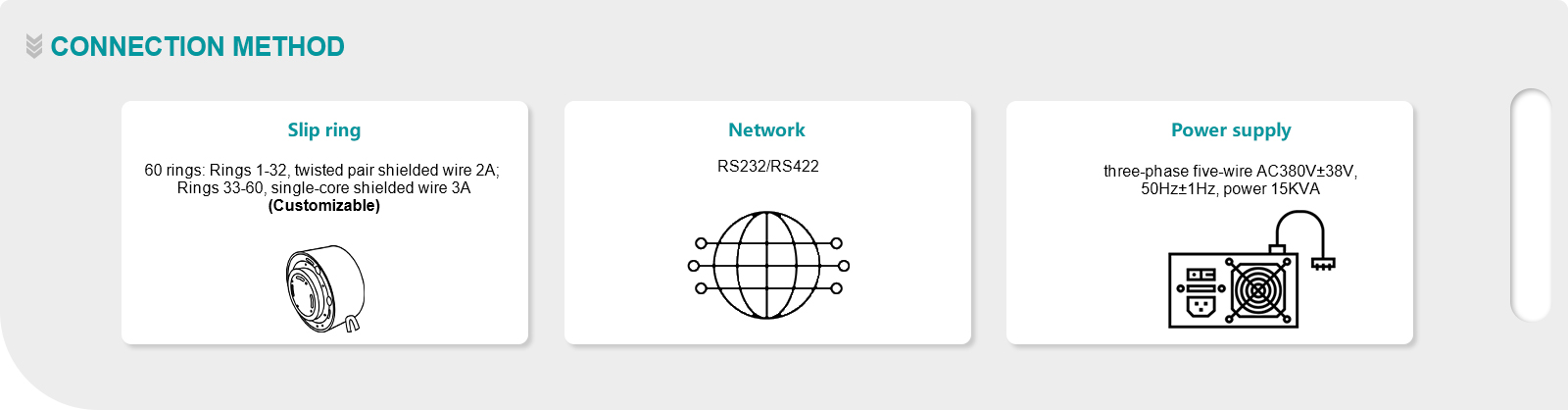

——Technical parameter——
|
Indicator name |
Indicator parameters |
|
Countertop material |
Stainless steel |
|
Load size |
580mm |
|
Maximum load weight |
50kg |
|
Countertop flatness |
0.02mm |
|
Countertop end runout |
0.03mm |
|
Countertop mounting hole |
"Meter" type distribution |
|
Corner range |
Continuous unlimited |
|
Swing range |
Main axis: 0°~±30°, pitch axis: 0°~±20° |
|
Rocking frequency |
Main axis: 0.02Hz~10Hz, pitch axis :0.02Hz~5Hz |
|
Rotation accuracy |
±2" |
|
Angular position measurement resolution |
0.36" |
|
Angular position positioning accuracy |
±5" |
|
Angular positioning repeatability |
±2" |
|
Maximum angular acceleration |
Main axis: 450°/s2, pitch axis: 300°/s2 |
|
Rate range |
Main axis: ±0.001°/s~±500°/s, pitch axis: ±0.001°/s~±200°/s |
|
Velocity resolution |
0.0001°/s <1/s |
|
Rate accuracy and smoothness |
ω< 1°, 3e-003(1° average) 1°≤ω<10°/s, 3e-004(10° average) 10°/s≤ω, 3e-005(360° average) |
|
Maximum speed of biaxial linkage |
60°/s |
|
Axis perpendicularity |
±5" |
