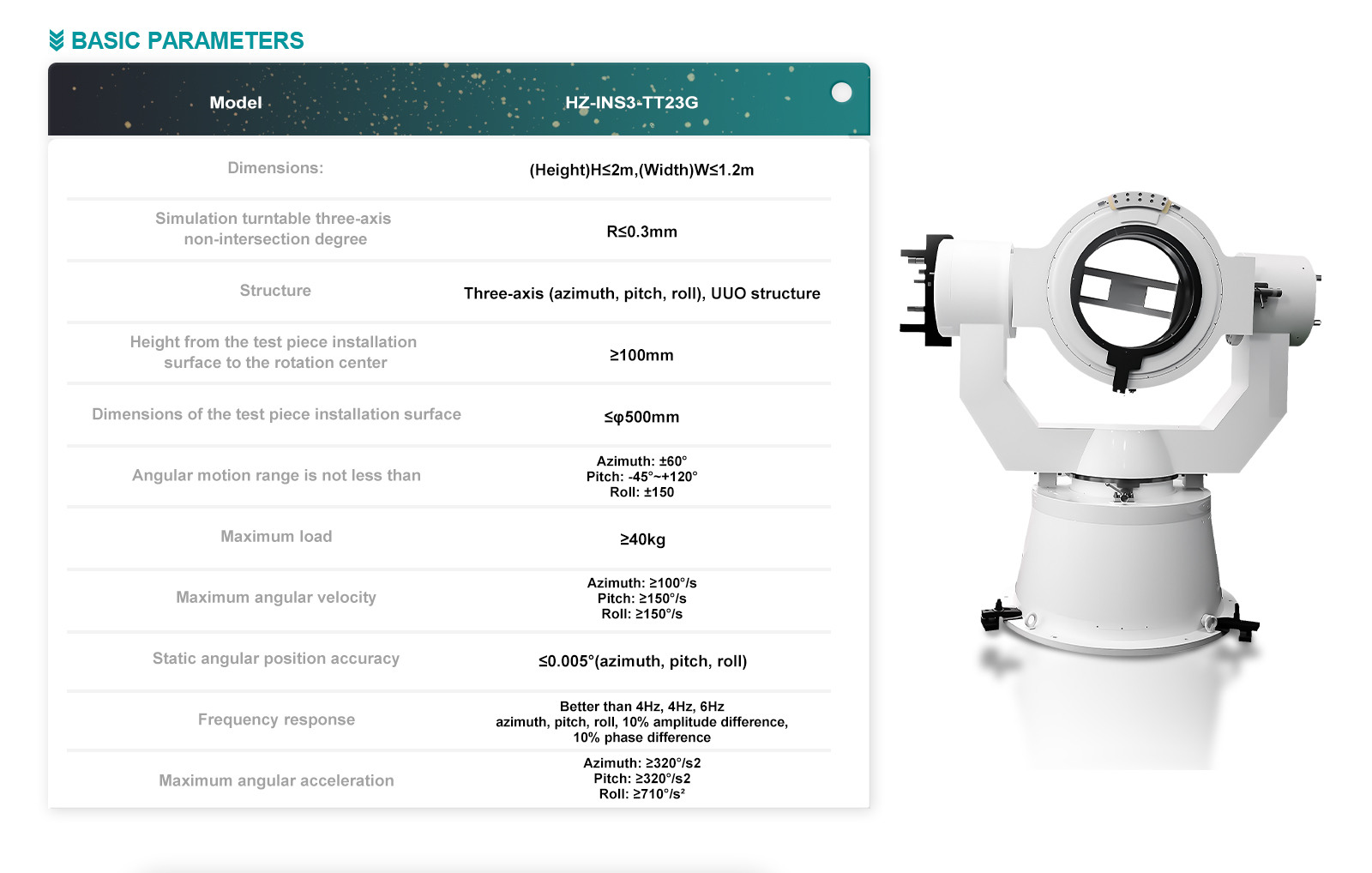

| Technical Parameter | ||
| No. | Indicator | Technical Parameters |
| 1 | Dimensions | (Height)H≤2m,(Width)W≤1.2m |
| 2 | Simulation turntable three-axis non-intersection degree | R≤0.3mm |

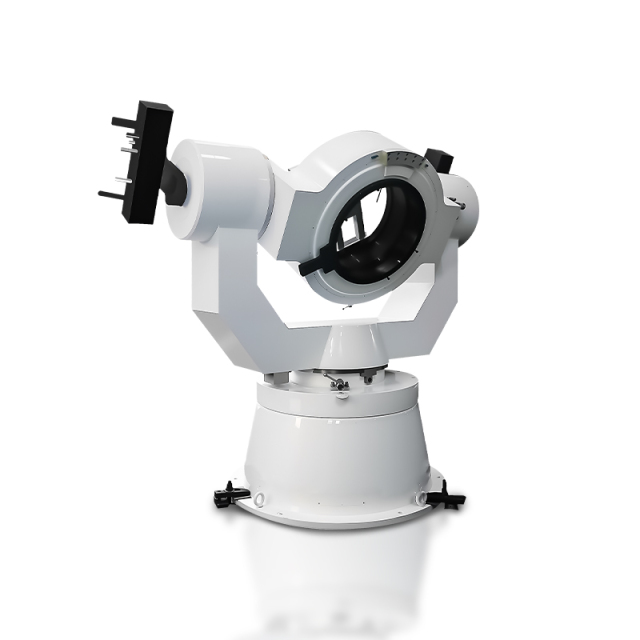

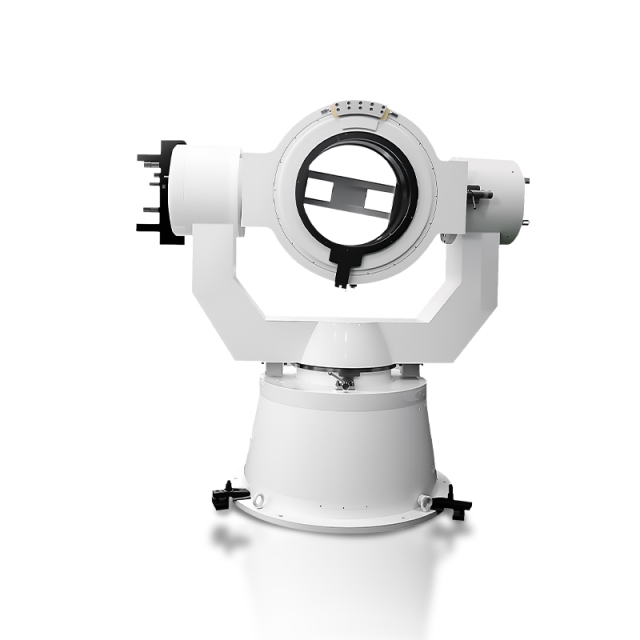

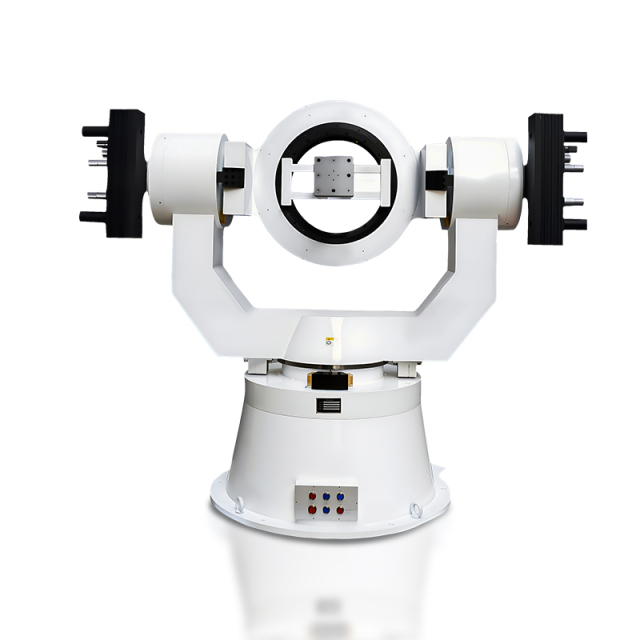

| 3 | Structure | Three-axis (azimuth, pitch, roll), UUO structure |
| 4 | Height from the test piece installation surface to the rotation center | ≥100mm |
| 5 | Dimensions of the test piece installation surface | ≤φ500mm |
| 6 | Angular motion range is not less than | Azimuth: ±60° |
| Pitch: -45°~+120° | ||
| Roll: ±150° | ||
| 7 | Maximum load | ≥40kg |
| 11 | Maximum angular velocity | Azimuth: ≥100°/s |
| Pitch: ≥150°/s | ||
| Roll: ≥150°/s | ||
| 9 | Static angular position accuracy | ≤0.005°(azimuth, pitch, roll) |
| 10 | Frequency response | Better than 4Hz, 4Hz, 6Hz azimuth, pitch, roll, 10% amplitude difference, 10% phase difference) |
| 11 | Maximum angular acceleration | Azimuth: ≥320°/s² |
| Pitch: ≥320°/s² | ||
| Roll: ≥710°/s² | ||
