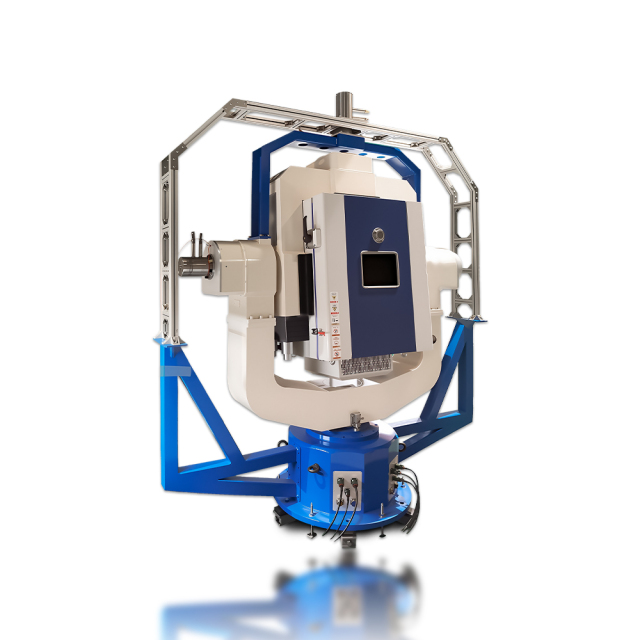

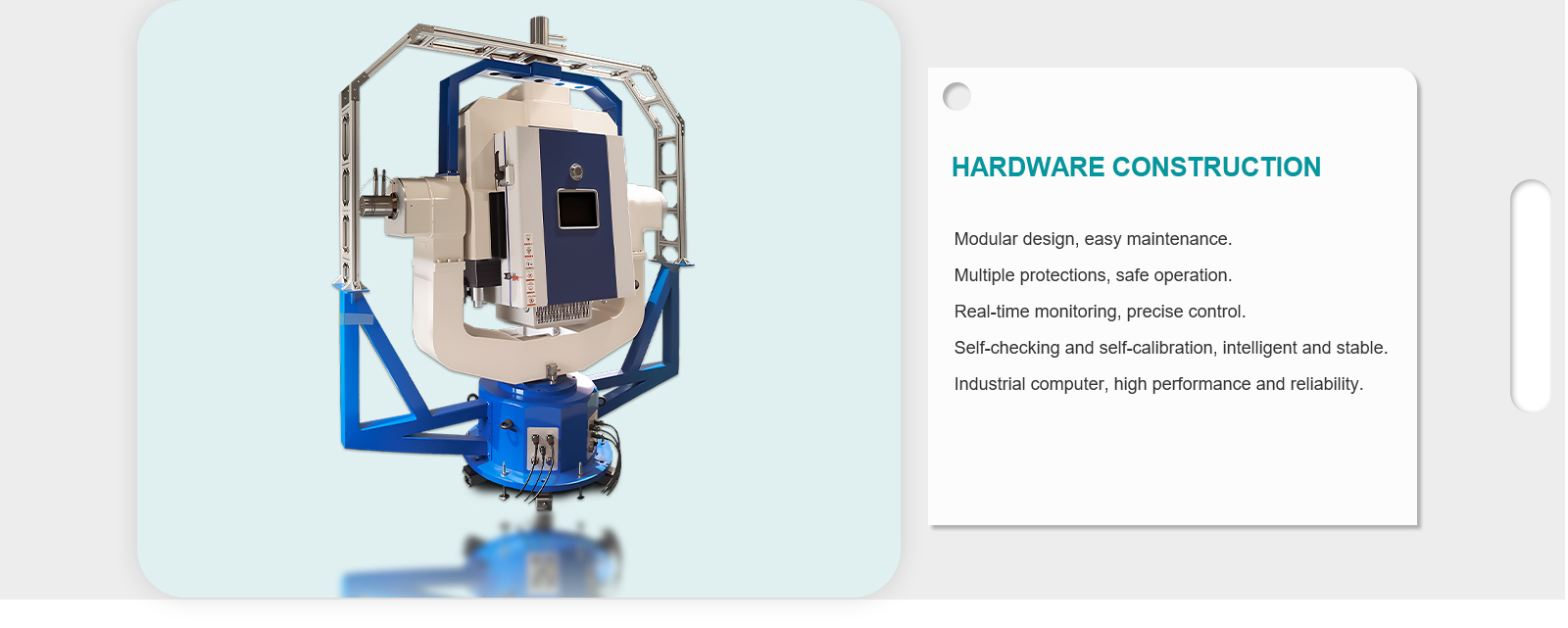

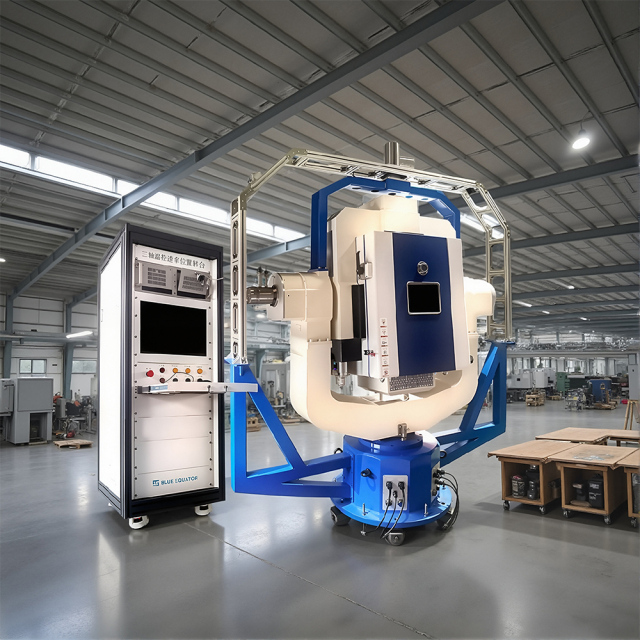

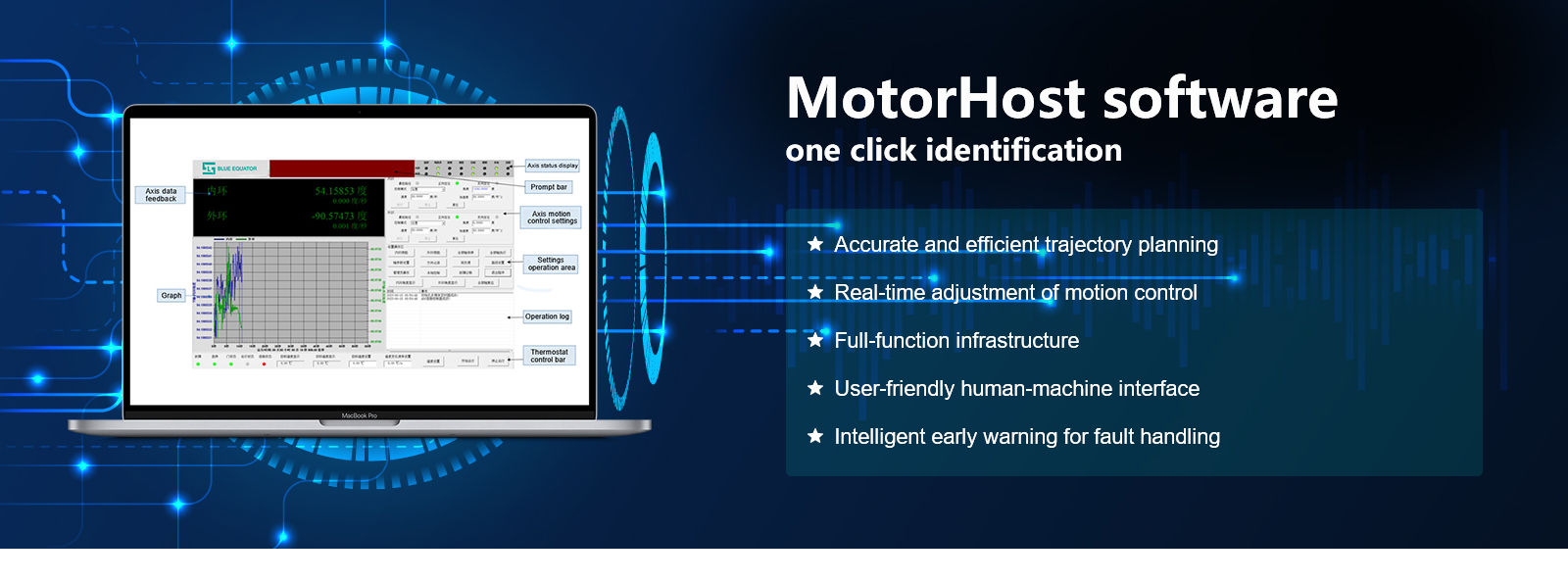

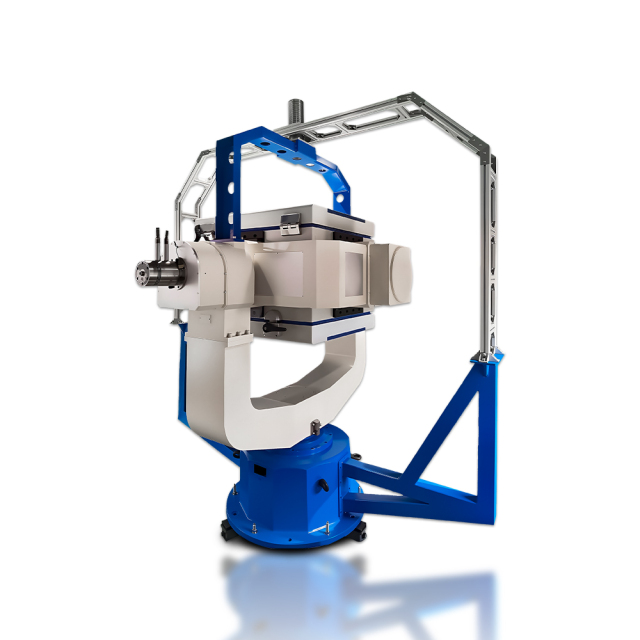

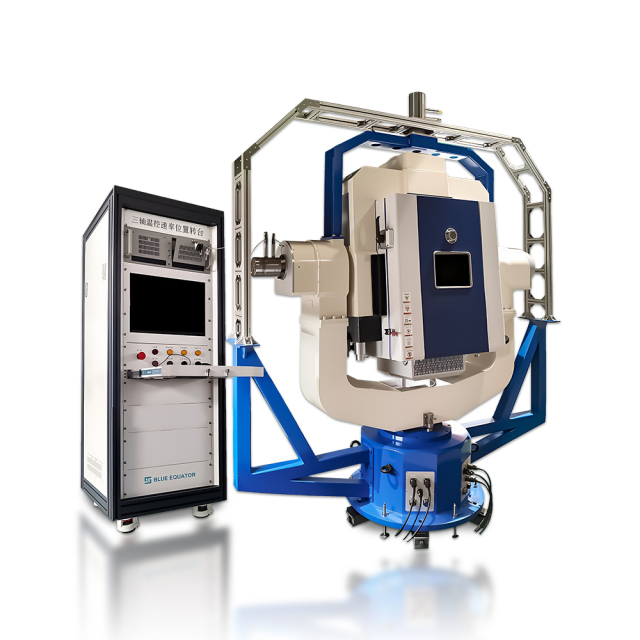

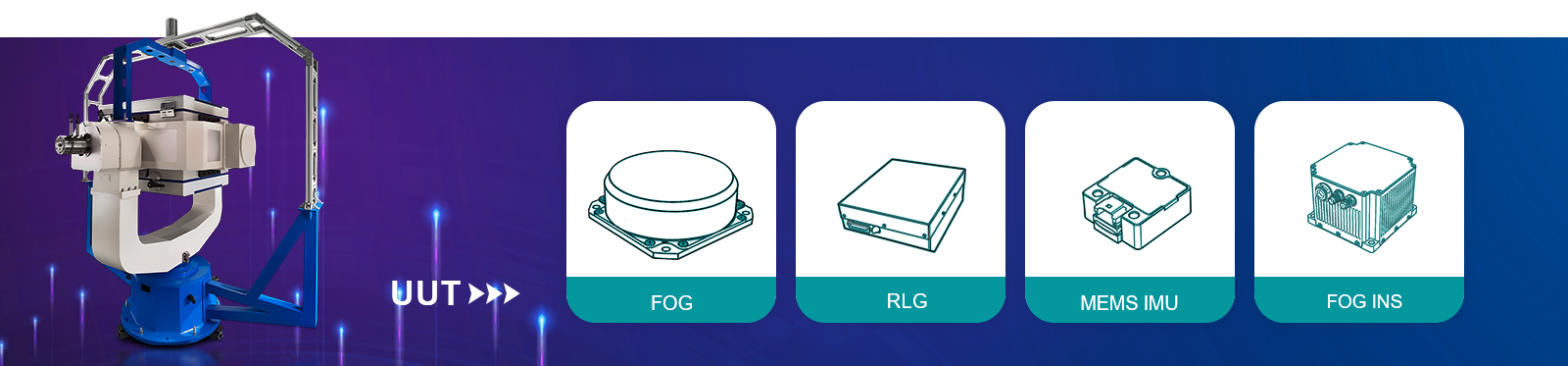

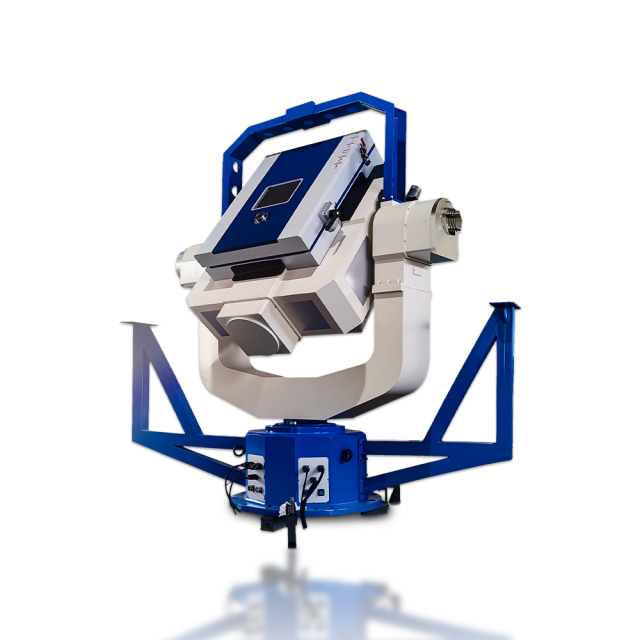

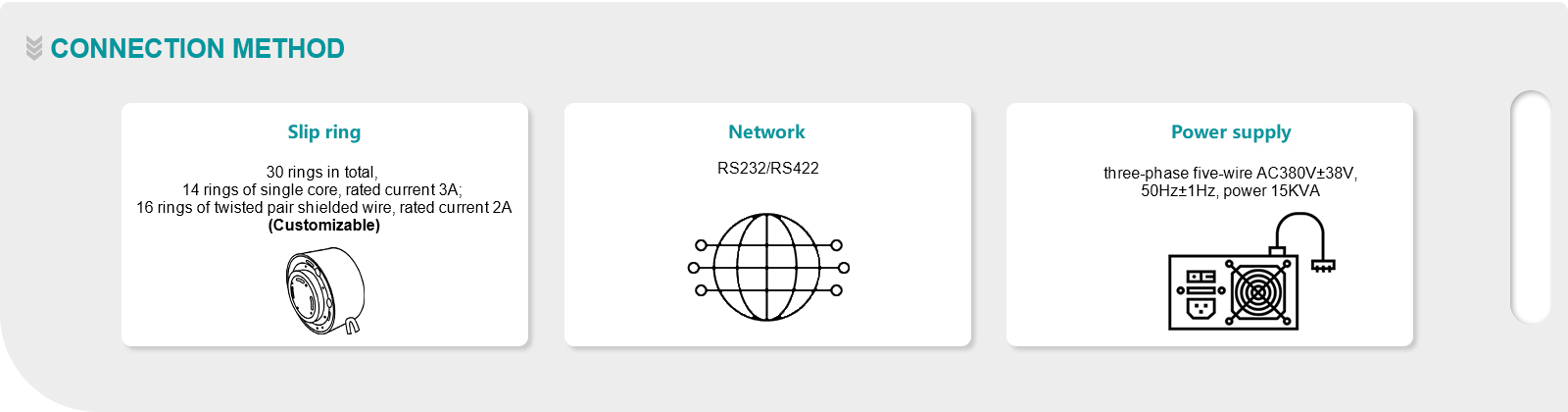

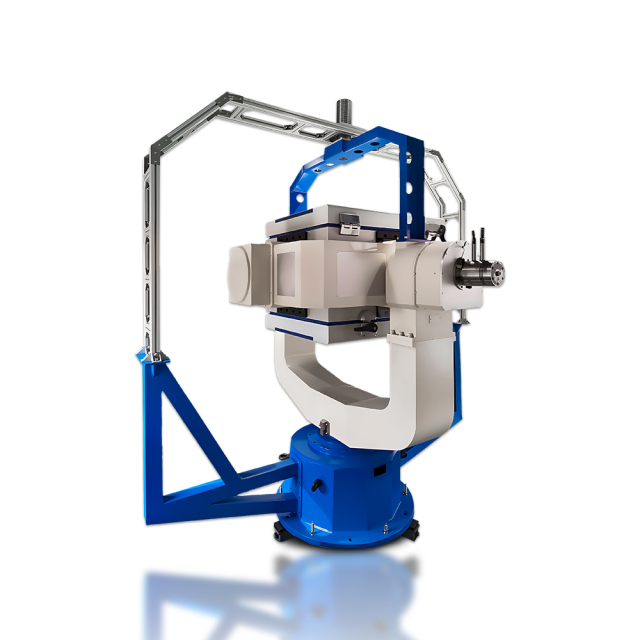

Three-Axis Turntable Technical Parameters
|
|
|
High-Precision Motion System with Temperature Control
|
|
|
|

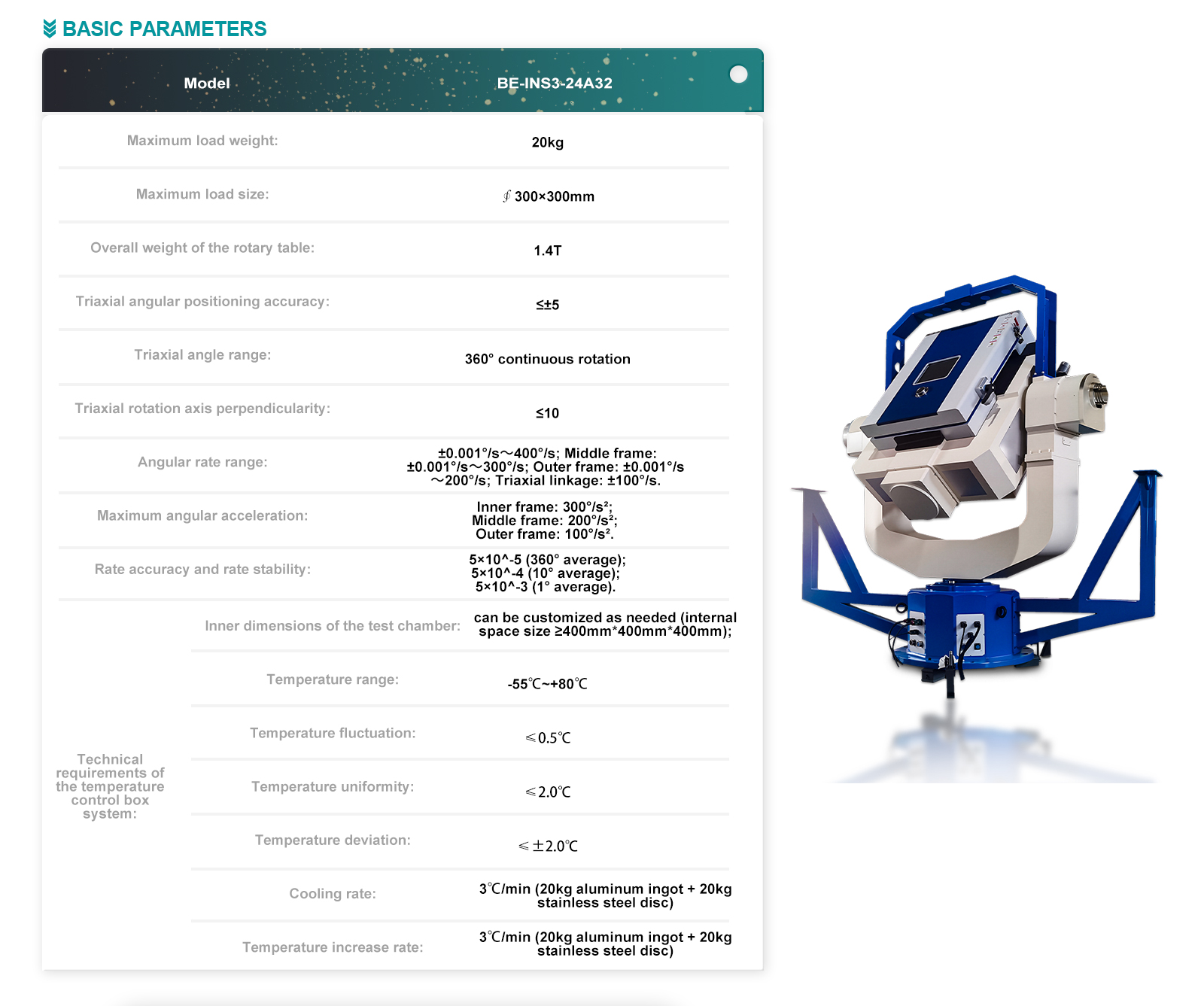

| Parameter | Value |
| Maximum load weight | 20 kg |
| Maximum load size | ϕ300 × 300 mm |
| Overall weight of turntable: 1.4 T | |
|
|
| Parameter | Value |
| Three-axis angular position positioning accuracy | ≤±5 ″ (arcseconds) |
| Three-axis angular range | 360° continuous rotation |
| Three-axis rotation axis verticality | ≤10 ″ (arcseconds) |
|
|
| Frame | Angular Velocity Range |
| Inner Frame | ±0.001°/s ~ 400°/s |
| Middle Frame | ±0.001°/s ~ 300°/s |
| Outer Frame | ±0.001°/s ~ 200°/s |
| Three-Axis Linkage | ±100°/s |
|
|
| Frame | Maximum Angular Acceleration |
| Inner Frame | 300 °/s² |
| Middle Frame | 200 °/s² |
| Outer Frame | 100 °/s² |
|
|
| Measurement Condition | Rate Accuracy & Stability |
| 360° average | 5×10⁻⁸ - 5 |
| 10° average | 5×10⁻⁴ - 4 |
| 1° average | 5×10⁻³ - 3 |
| Temperature Control Box System | |
| Technical Requirements for Temperature Control Box System | |
| Inner dimensions of the test box can be customized as needed | |
| (inner space dimensions ≥ 400mm × 400mm × 400mm) | |
| Temperature range: -55°C ~ +80°C | |
| Temperature fluctuation: ≤0.5°C | |
| Temperature uniformity: ≤2.0°C | |
| Temperature deviation: ≤±2.0°C | |
| Cooling rate: 3°C/min throughout the process (20kg aluminum ingot + 20kg stainless steel disc) | |
