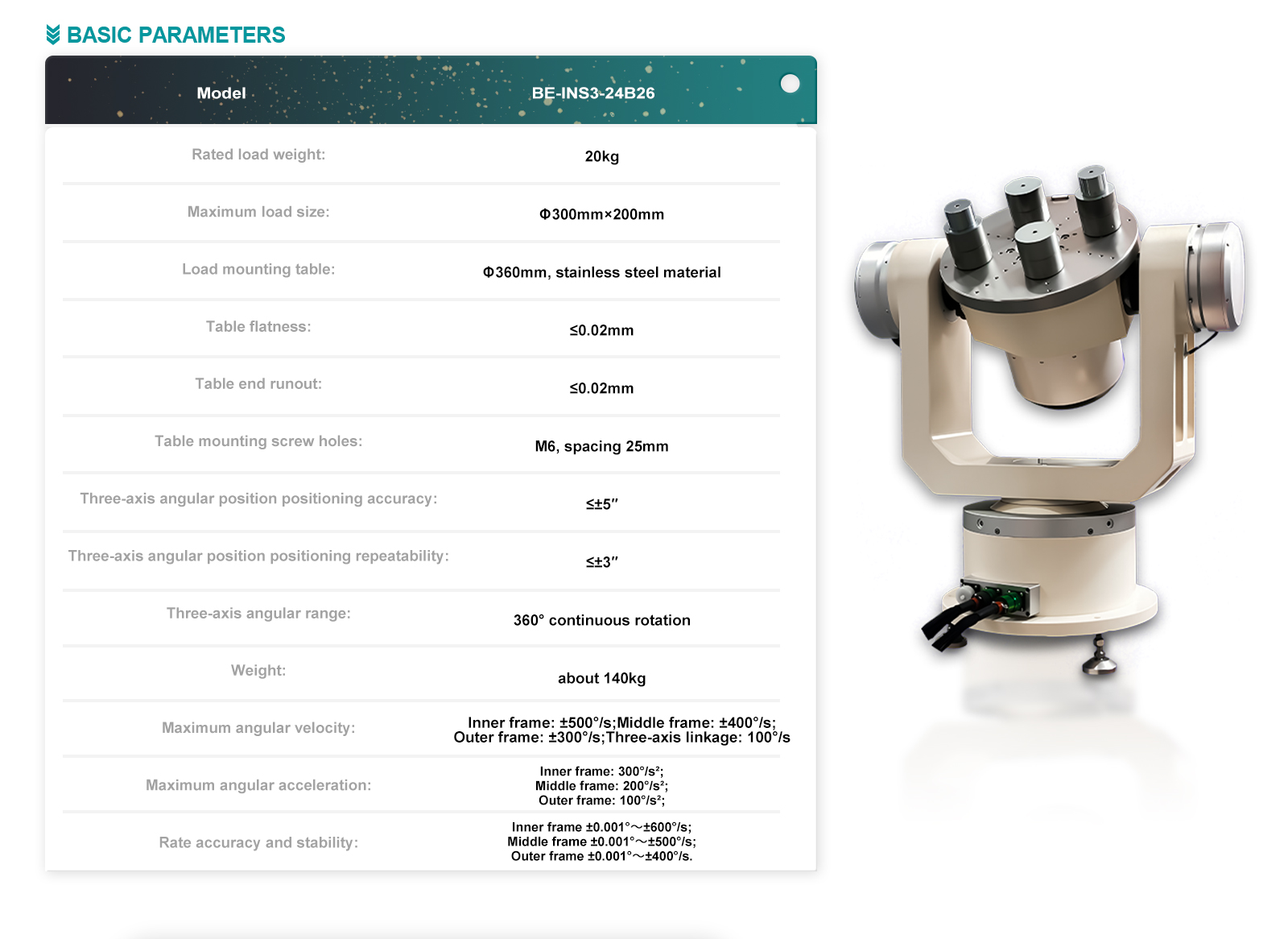

Technical Parameters
|
|
|
Rated load weight: |
20kg |
|
Maximum load size: |
Φ300mm×200mm |
|
Load mounting table: |
Φ360mm, stainless steel material |
|
Table flatness: |
≤0.02mm |
|
Table end runout: |
≤0.02mm |
|
Table mounting screw holes: |
M6, spacing 25mm |
|
Three-axis angular position positioning accuracy: |
≤±5″ |
|
Three-axis angular position positioning repeatability: |
≤±3″ |
|
Three-axis angular range: |
360° continuous rotation |
|
Weight: |
about 140kg |
|
Maximum angular velocity: |
Inner frame: ±500°/s; Middle frame: ±400°/s; Outer frame: ±300°/s; Three-axis linkage: 100°/s |
|
Maximum angular acceleration: |
Inner frame: 300°/s²; Middle frame: 200°/s²; Outer frame: 100°/s²; |
|
Rate accuracy and stability:
|
5×10^-5 (360° average); 5×10^-4 (10° average); 5×10^-3 (1° average). |
