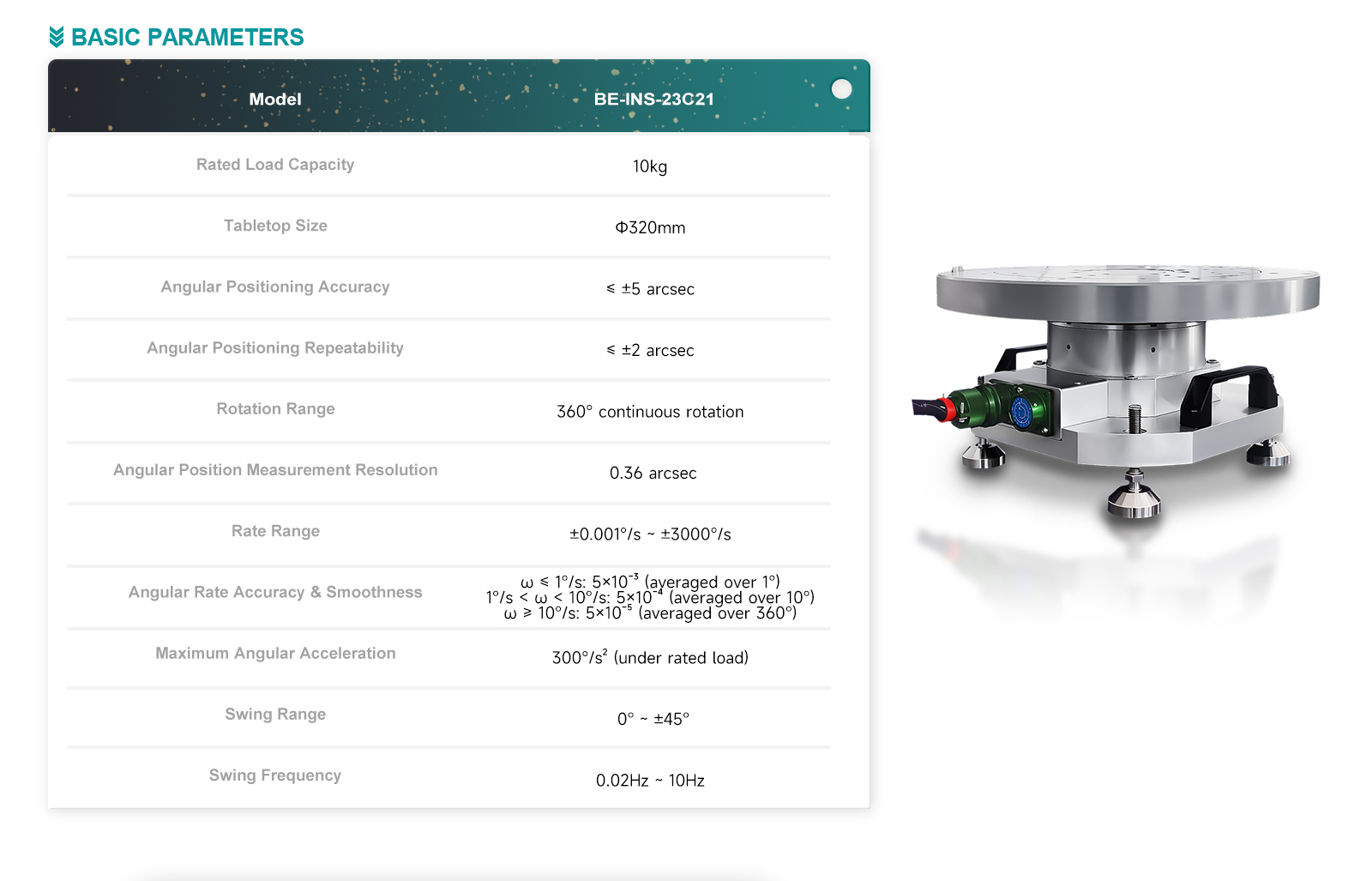

| Technical parameter | |
| Rated load weight | 10kg |
| Table size | Φ320mm |
| Angular position positioning accuracy | ≤±5″ |
| Angular position positioning repeatability | ≤±2″ |
| Rotation angle range | 360° continuous rotation |
| Angular position measurement resolution | 0.36″ |
| Rate range | ±0.001°/s ~ ±3000°/s |
| Angular rate accuracy and stability | ω≤1°/s, 5×10⁻³ (1° average); |
| 1°/s < ω < 10°/s, 5×10⁻⁴ (10° average); | |
| 10°/s≥ω, 5×10⁻⁵ (360° average) | |
| Maximum angular acceleration | 300°/s² (rated load) |
| Swing range | 0° ~ ±45° |
| Swing frequency | 0.02Hz ~ 10Hz |
