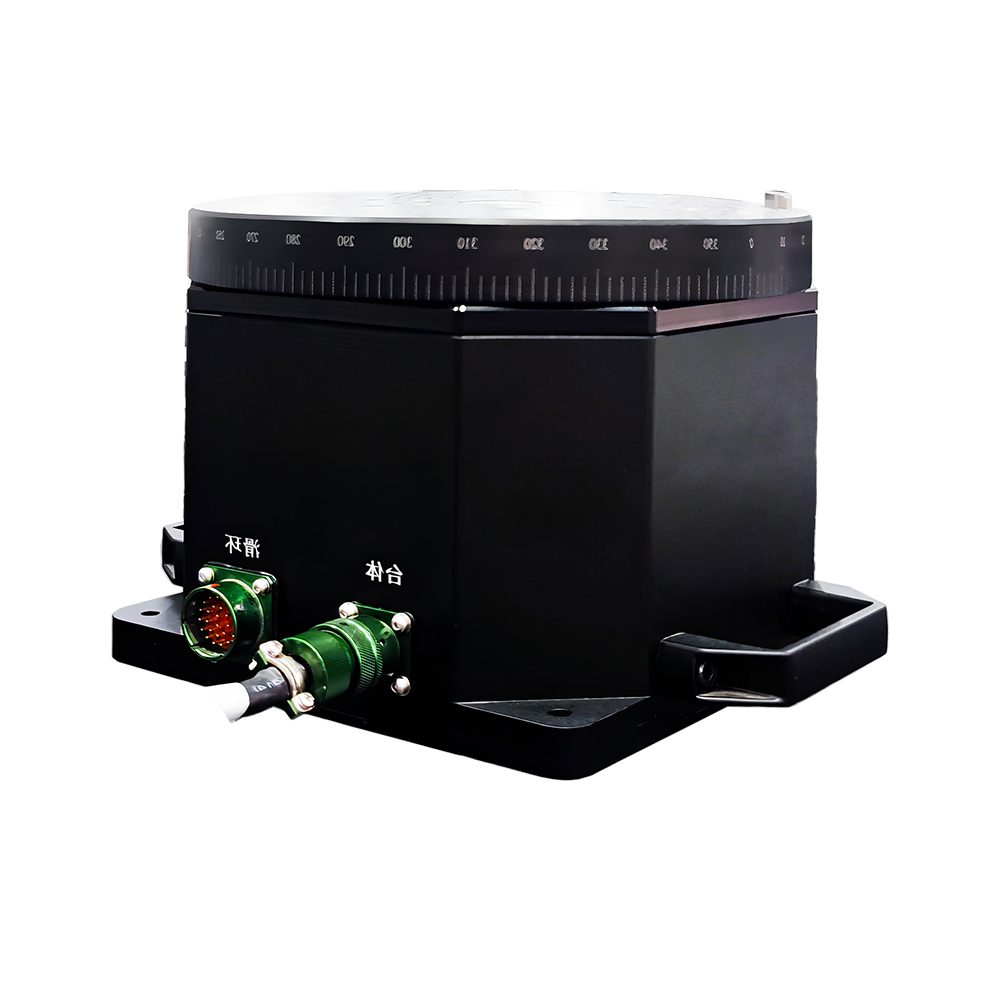

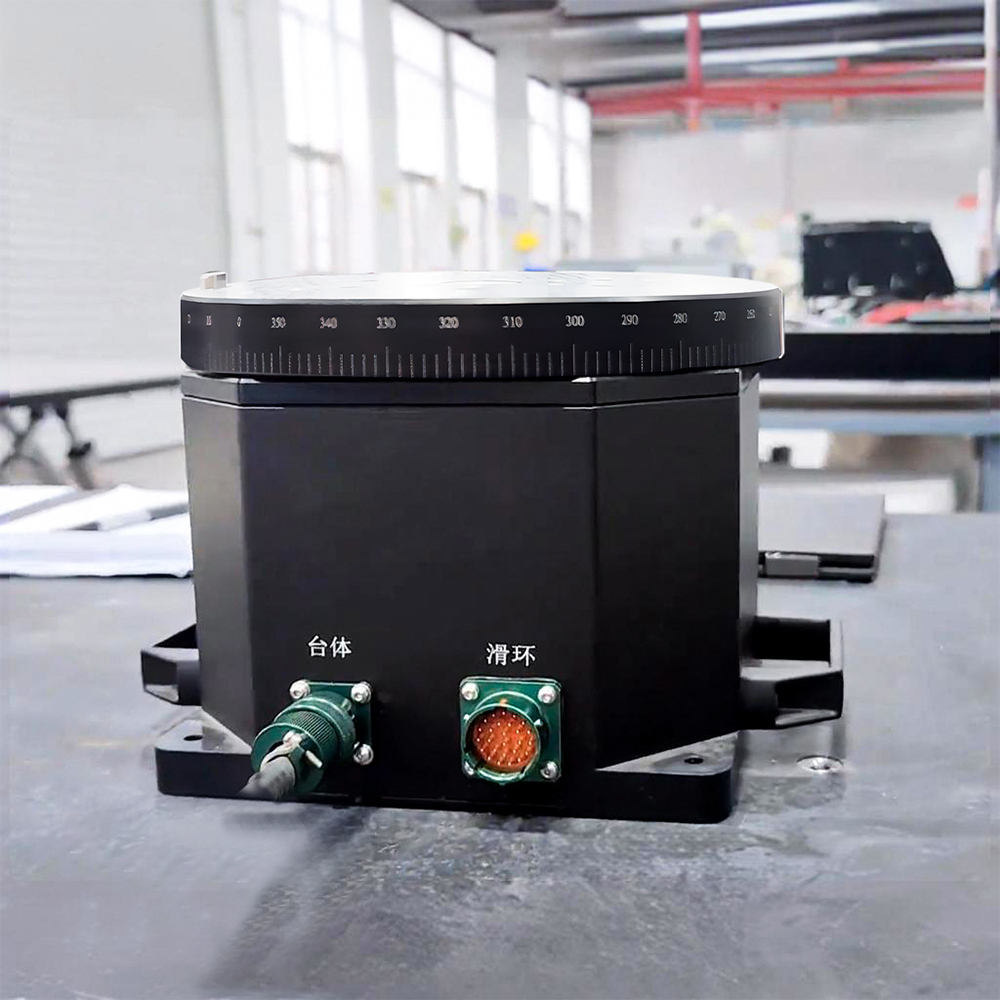

| Two-Axis Turntable Technical Parameters | |
| Rated Load Capacity | 20 kg |
| Positioning Accuracy | ±30 arcsec |
| Positioning Repeatability | ±18 arcsec |
| Speed Range (Single Axis) | 0.001°/s ~ 500°/s |
| Maximum Angular Velocity | ±500°/s |
| Dual-Axis Linkage Speed | ±100°/s |
| Speed Accuracy & Stability | 5×10⁻⁵ (360° average); 5×10⁻⁴ (10° average); 5×10⁻³ (1° average) |
| Continuous Working Time | 24 hours |
| Azimuth Range | ±180° |
| Pitch Range | ±90° |
| Power Supply | AC 220V, 50 Hz |
| Power Consumption | ≤ 300 W |
| Dimensions (L×W×H) | 400 mm × 400 mm × 400 mm |
| Weight | 45 kg |
| Working Environment Temperature | -10℃ ~ +50℃ |
| Working Environment Humidity | 5%RH ~ 85%RH (Non-condensing) |
