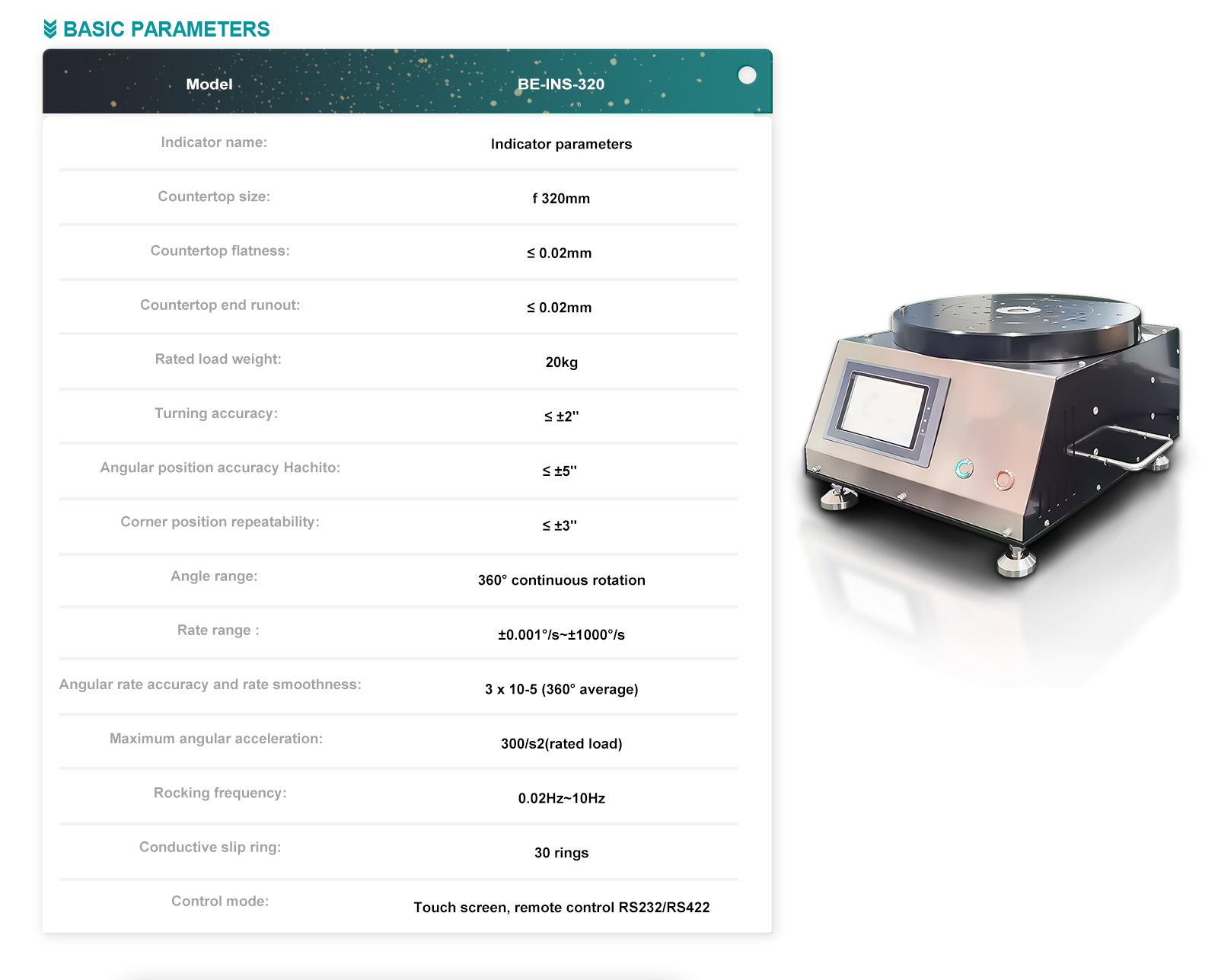

Indicator name |
Indicator parameters |
|
Countertop size |
f 320mm |
|
Countertop flatness |
≤ 0.02mm |
|
Countertop end runout |
≤ 0.02mm |
|
Rated load weight |
20kg |
|
Turning accuracy |
≤ ±2" |
|
Angular position accuracy Hachito |
≤ ±5" |
|
Corner position repeatability |
≤ ±3" |
|
Angle range |
360° continuous rotation |
|
Rate range |
±0.001°/s~±1000°/s |
|
Angular rate accuracy and rate smoothness |
3 x 10-5 (360° average) |
|
Maximum angular acceleration |
300/s2(rated load) |
|
Rocking frequency |
0.02Hz~10Hz |
|
Conductive slip ring |
30 rings |
|
Control mode |
Touch screen, remote control RS232/RS422 |
