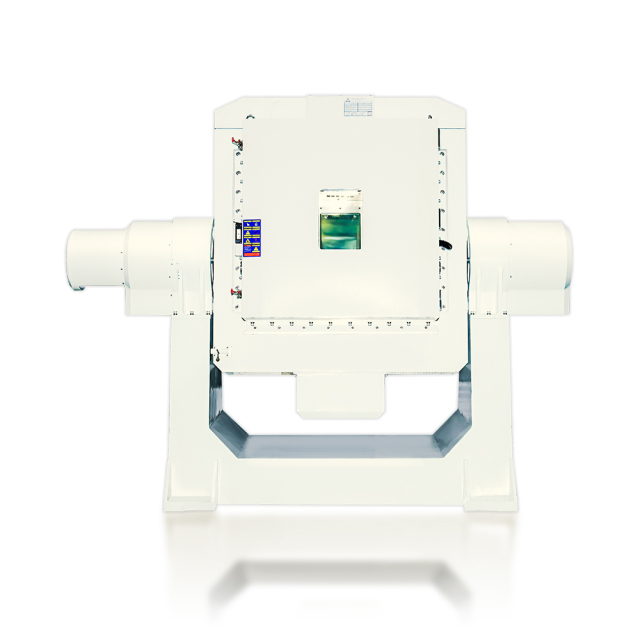

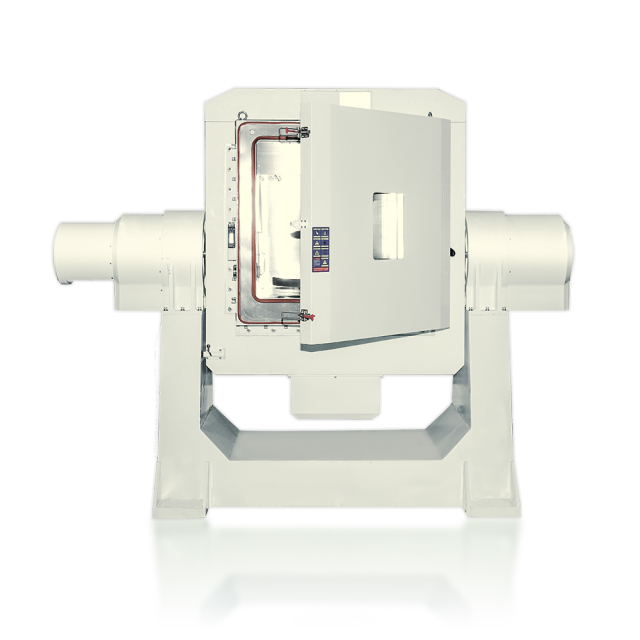

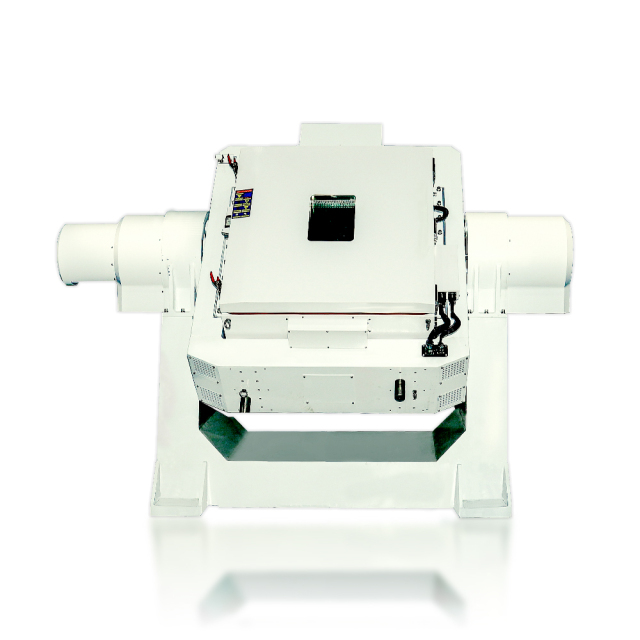

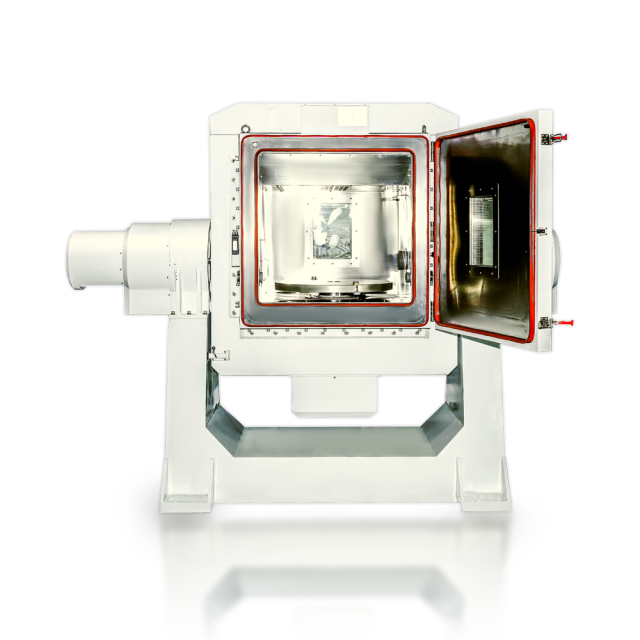

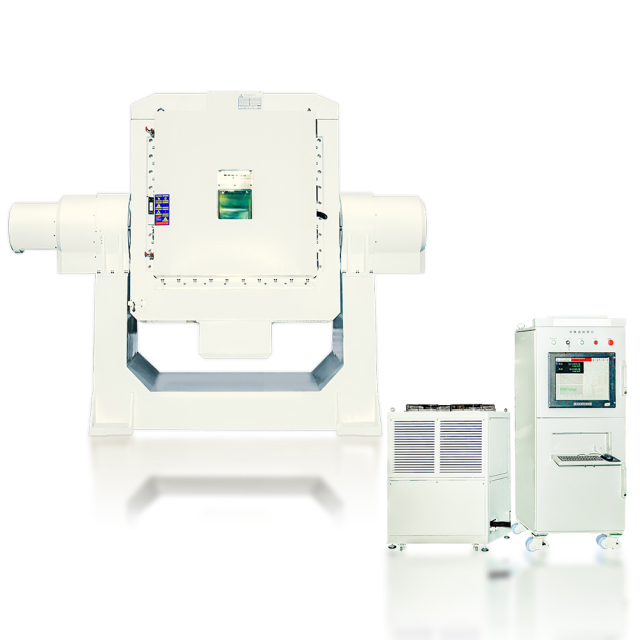

| HY-INS2-520CW 2-axis temperature chamber turntable, designed for inertial navigation device testing across full temperature ranges. Features high-precision angular position and rate control, combined with wide temperature simulation capabilities for accurate testing. Supports gyroscopes, accelerometers, IMUs, and more. Ideal for aerospace, military, and research fields. Large load capacity, wide temperature variation, and low humidity control meet complex testing needs, enhancing device performance and reliability. | ||
| Unit Under Test (UUT) | ||
| Load weight | 40KG | |
| Load height less than | ≤350mm | |
| Load table size | ≥Φ520mm | |
| Slip rings to UUT | Signal 140 ways, 3A @ 380VAC/50Hz, 45KW(Max) | |
| Specifications | ||
| Inner Axis | Outer Axis | |
| Angular freedom | continuous | continuous |
| Position | ||
| Accuracy | ≤±3 arc sec | ≤±3 arc sec |
| Resolution | 0.36 arc sec | 0.36 arc sec |
| Repeatability | ≤±1 arc sec | ≤±1 arc sec |
| Rate | ||
| Range | ±0.001 deg/sec ~ ±1000 deg/sec | ±0.001 deg/sec ~ ±600 deg/sec |
| Accuracy and stability | When θ＜1 deg/sec | ≤1×10-3 (1 deg average) |
| When 1 deg/sec＜θ＜10 deg/sec | ≤1×10-4 (10 deg average); | |
| When θ≥10 deg/sec | ≤1×10-5 (360 deg average) | |
| Dynamic | ||
| Acceleration(with load) | 400 deg/sec2 | 100 deg/sec2 |
| Mechanical | ||
| Wobble | ≤±2 arc sec | ≤±2 arc sec |
| Orthogonality | ≤±2 arc sec | ≤±2 arc sec |
| Temperature Chamber (TC) | ||
| Working volume | 600*600*500mm | |
| Temperature range | -55℃~+150℃ | |
| Temperature stability | ≤±0.5℃ | |
| Temperature change rate | not less than 5℃/min, linear temperature change rate not less than 1℃/min; | |
| Temperature deviation: | ≤±2℃ | |
| Temperature gradient: | ≤2℃ | |
| Dimensions | ||
| Machine platform dimensions | 2500*1005*2100mm | |
| Total weight | 2300kg | |
