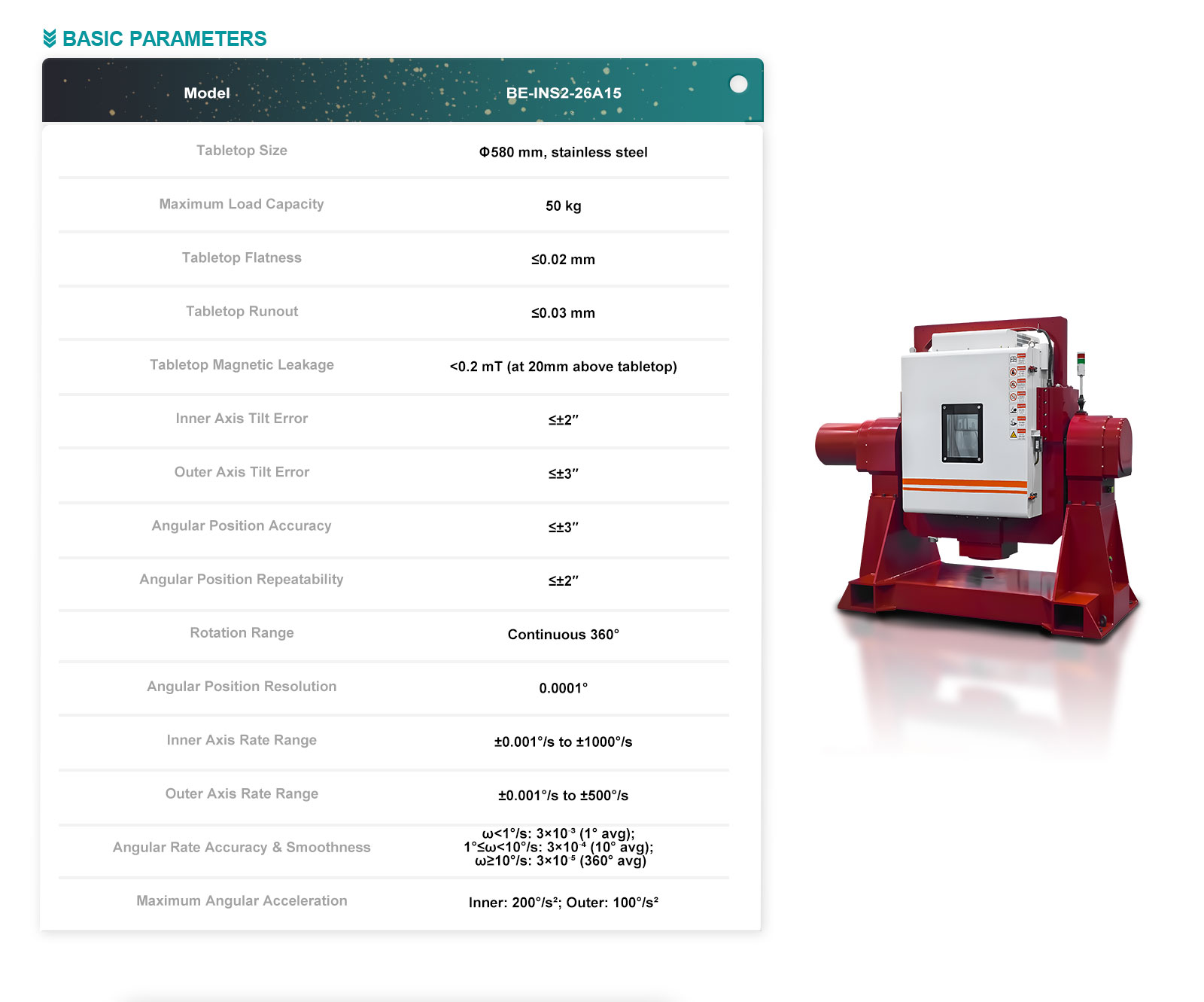

| Item | Parameters |
|---|---|
| Load mounting table | Diameter580mm |
| Maximum load weight | 50kg |
| Table flatness | ≤0.02mm |
| Table end face runout | ≤0.03mm |
| Table leakage | <0.2mT |
| Table mounting screw holes | M8, 8 ray distribution or array distribution |
| Angular position positioning accuracy | <±3″ |
| Angular position positioning repeatability | ≤±2″ |
| Rotation range | 360° continuous rotation |
| Angular position measurement resolution | 0.36" |
| Rate range | Inner axis ±0.001°/s~±1000°/s Outer axis ±0.001°/s~±500°/s |
| Rate resolution | 0.001°/s |
| Angular rate accuracy and rate stability | ω<1°/s: 3×10-3 (1° average) 1°/s≤ω<10°/s: 3×10-4 (10° average) ω≥10°/s: 3×10-5 (360° average) |
| Maximum angular acceleration | Inner frame: 200°/s² (rated load) Outer frame: 100°/s² (rated load) |
