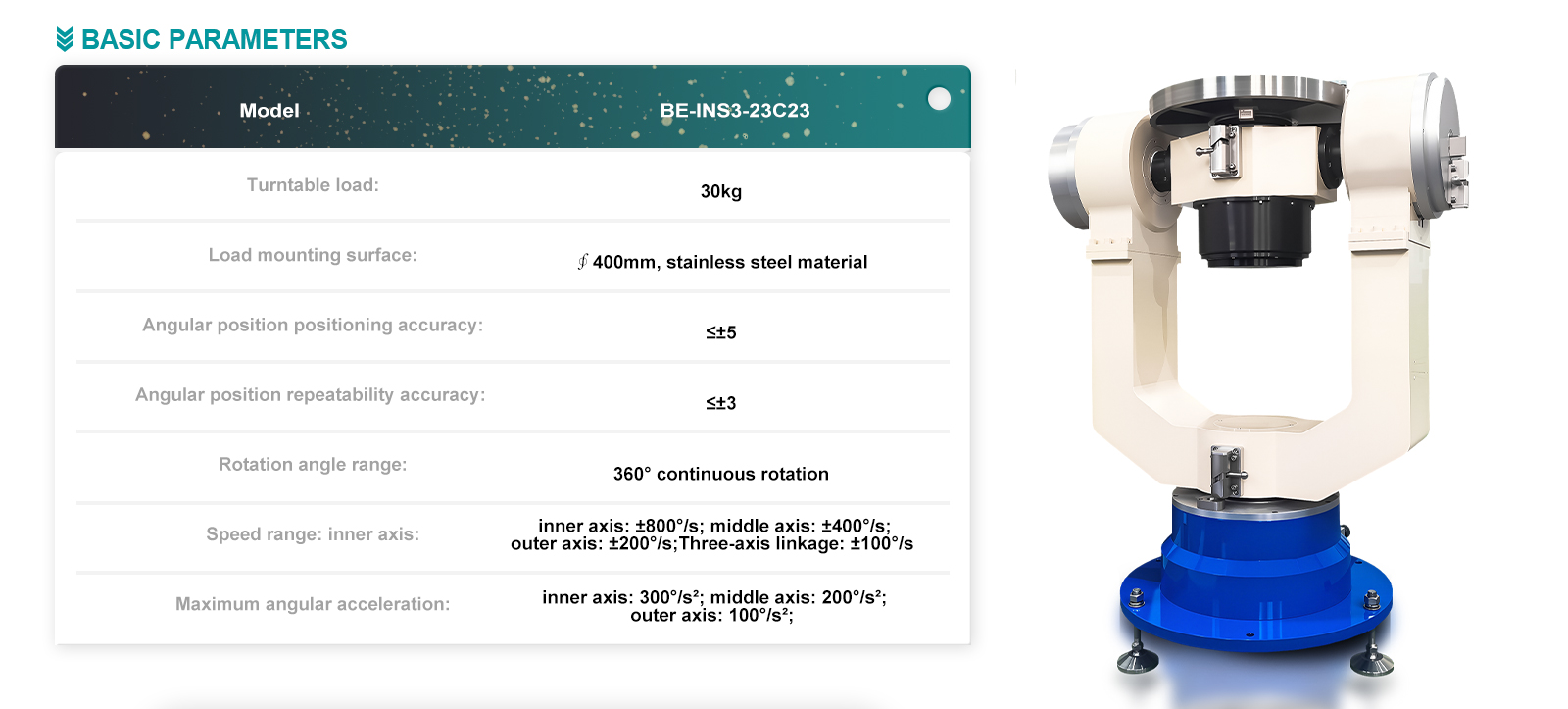

| No. | Item | Specifications |
|---|---|---|
| 1 | Turntable Load | 30kg |
| 2 | Load Mounting Surface | φ400mm, stainless steel |
| 3 | Angular Positioning Accuracy | ≤ ±5 arcseconds |
| 4 | Angular Position Repeatability | ≤ ±3 arcseconds |
| 5 | Rotation Range | 360° continuous rotation |
| 6 | Device Weight | Approx. 200kg |
| 7 | Overall Dimensions | 814mm × 520mm × 1031mm |
| 8 | Rate Range | Inner frame: ±0.001°/s ~ ±800°/s Middle frame: ±0.001°/s ~ ±400°/s Outer frame: ±0.001°/s ~ ±200°/s Three-axis linkage: ±100°/s |
| 9 | Maximum Angular Acceleration | Inner frame: 300°/s² Middle frame: 200°/s² Outer frame: 100°/s² |
| 10 | Speed Accuracy & Rate Stability | 5×10⁻⁵ (average over 360°) 5×10⁻⁴ (average over 10°) 5×10⁻³ (average over 1°) |
