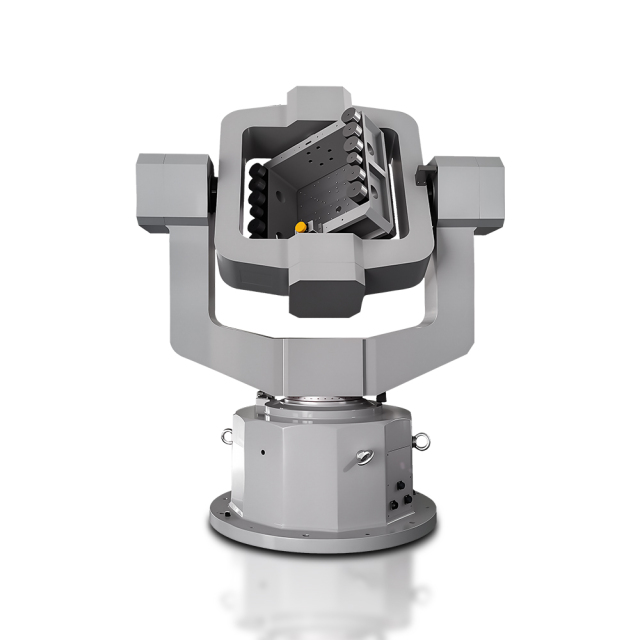

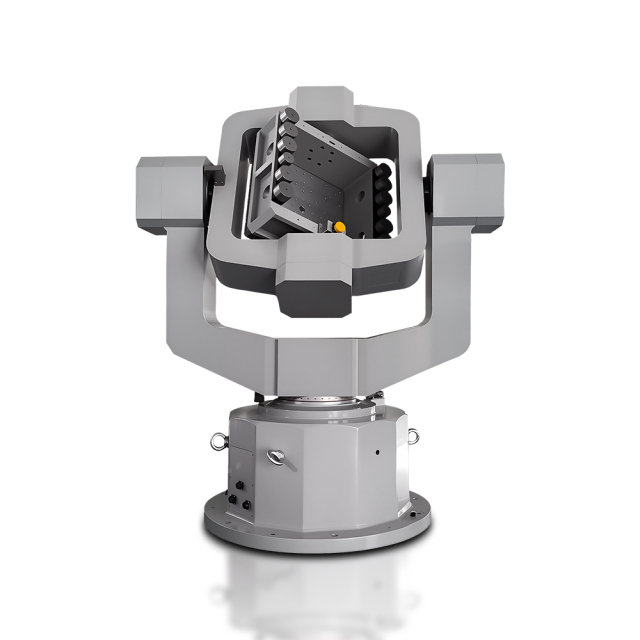

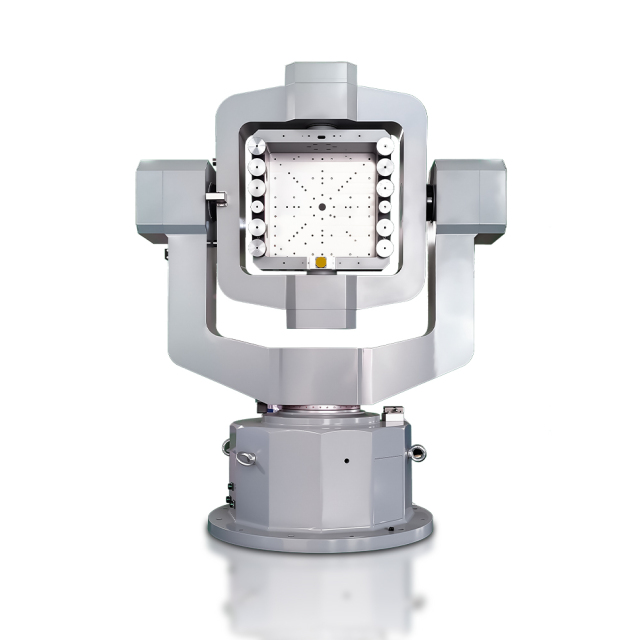

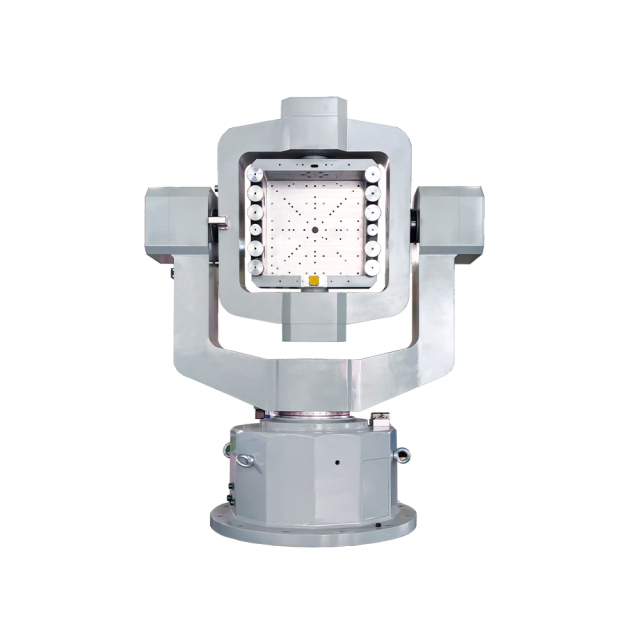

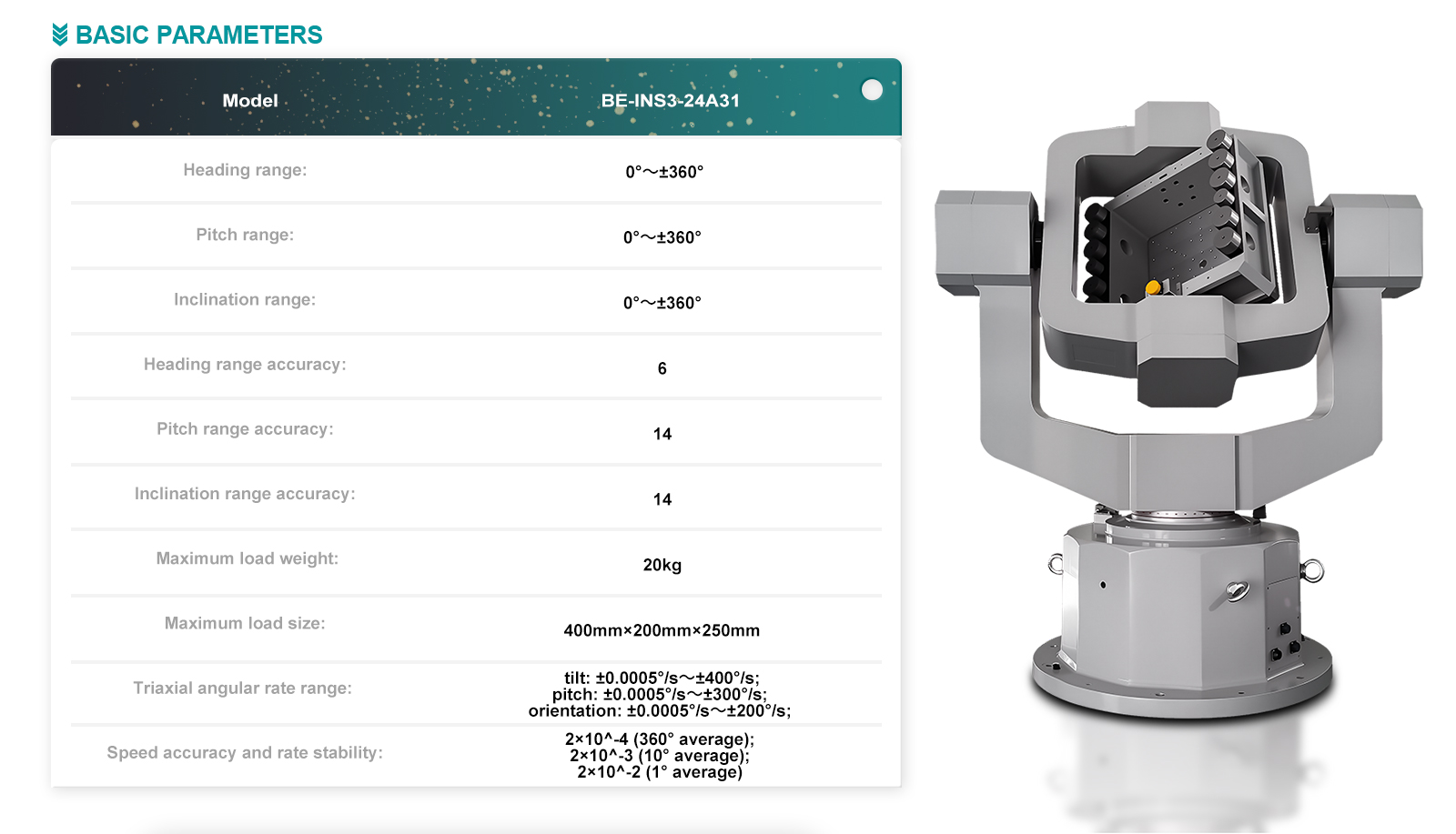

| Three-Axis Motion System Technical Parameters | |
| High-Precision Positioning and Motion Control Specifications | |
|
|
| Axis | Range |
| Heading | 0° ~ ±360° |
| Pitch | 0° ~ ±360° |
| Tilt | 0° ~ ±360° |
|
|
| Axis | Accuracy |
| Heading range accuracy | 6 ″ (arcseconds) |
| Pitch range accuracy | 14 ″ (arcseconds) |
| Tilt range accuracy | 14 ″ (arcseconds) |
|
|
| Parameter | Value |
| Maximum load weight | 20 kg |
| Maximum load size | 400 mm × 200 mm × 250 mm |
|
|
| Axis | Angular Rate Range |
| Tilt | ±0.0005°/s ~ ±400°/s |
| Pitch | ±0.0005°/s ~ ±300°/s |
| Azimuth (Heading) | ±0.0005°/s ~ ±200°/s |
|
|
| Measurement Condition | Accuracy & Stability |
| 360° average | 2 × 10-4 |
| 10° average | 2 × 10-3 |
| 1° average | 2 × 10-2 |
