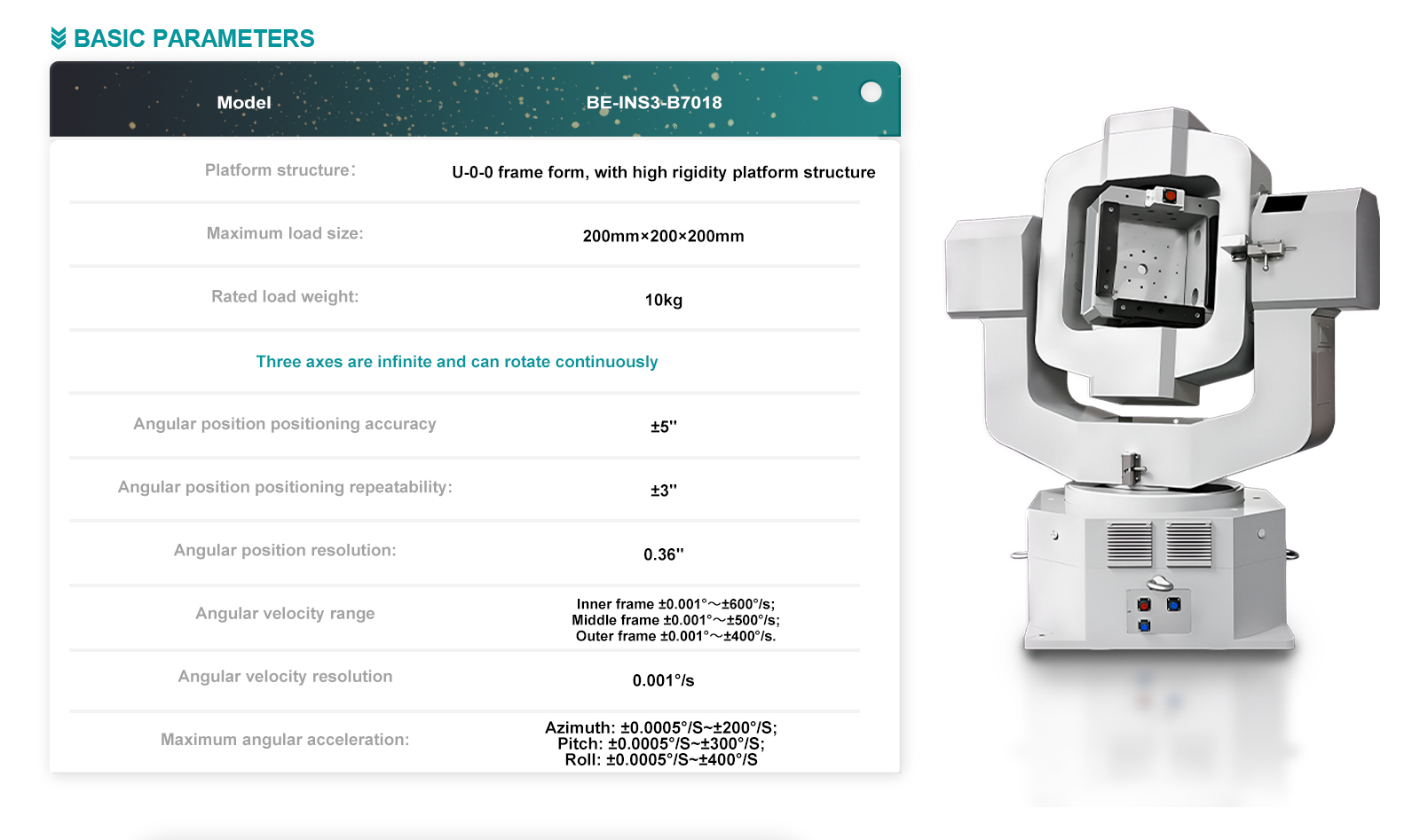

| Technical parameter | |

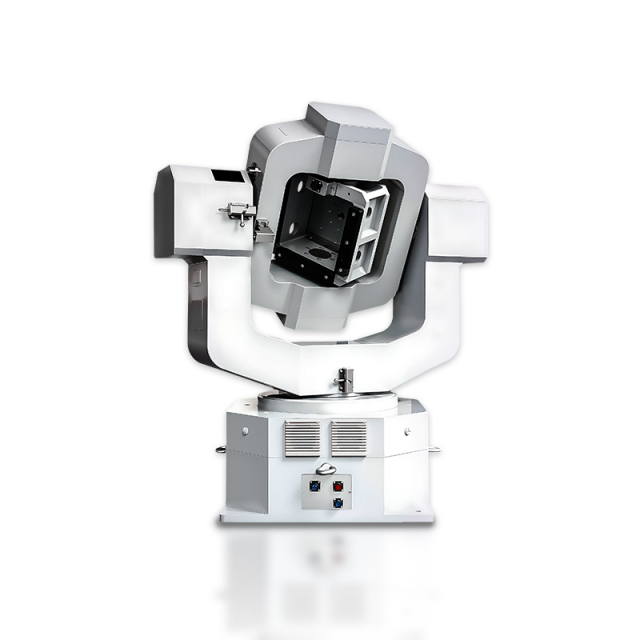

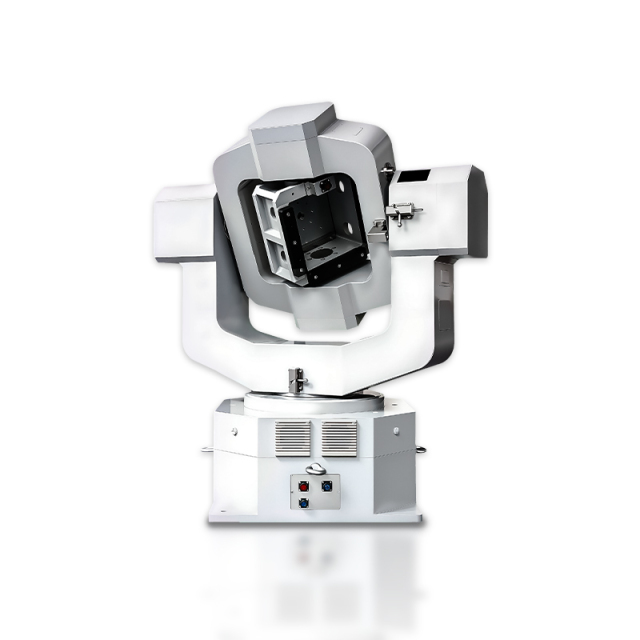

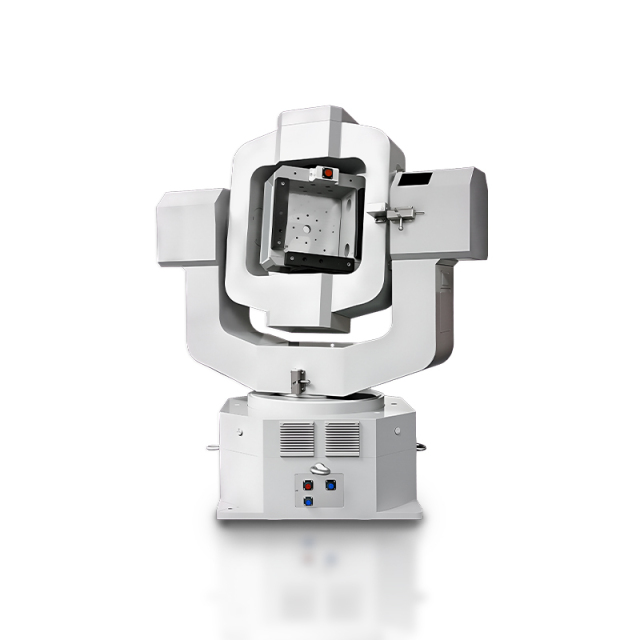

| Platform structure: | U-0-0 frame form, with high rigidity platform structure |
| Maximum load size: | 200mm×200×200mm |
| Rated load weight: | 10kg |
| Three axes are infinite and can rotate continuously | |
| Angular position positioning accuracy | ±5" |
| Angular position positioning repeatability: | ±3" |
| Angular position resolution: | 0.36" |
| Angular velocity range | Inner frame ±0.001° ~ ±600°/s; |
| Middle frame ±0.001° ~ ±500°/s; | |
| Outer frame ±0.001° ~ ±400°/s. | |
| Angular velocity resolution | 0.001°/s |
| Maximum angular acceleration: | Inner frame ±800°/s²; |
| Middle frame ±800°/s²; | |
| Outer frame ±800°/s². | |
