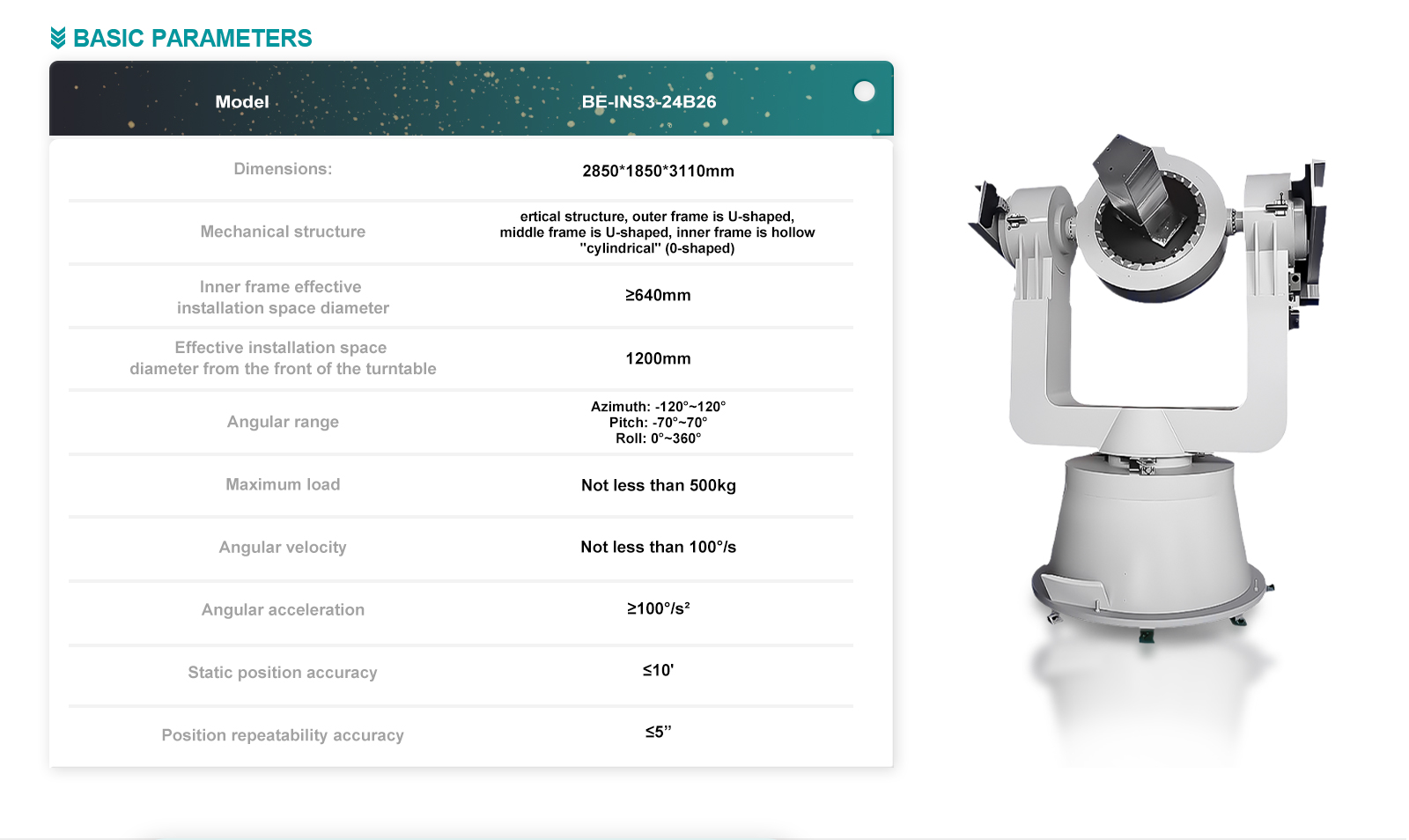

| Technical Parameters | |
| Mechanical System Specifications | |
| Parameter | Value |
| Dimensions | 2850 × 1850 × 3110 mm |

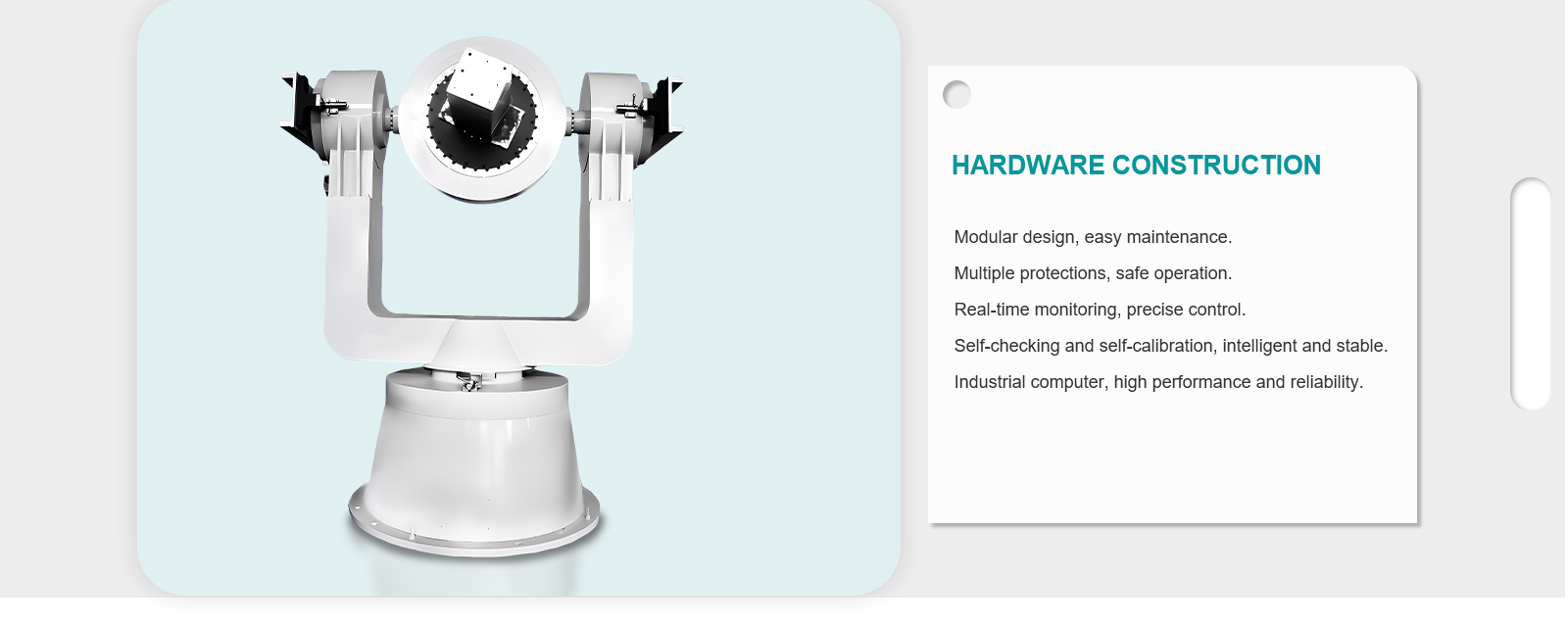

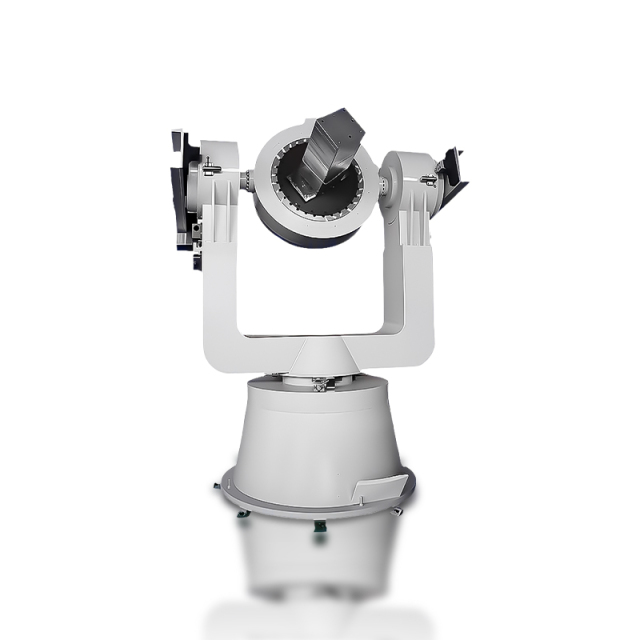

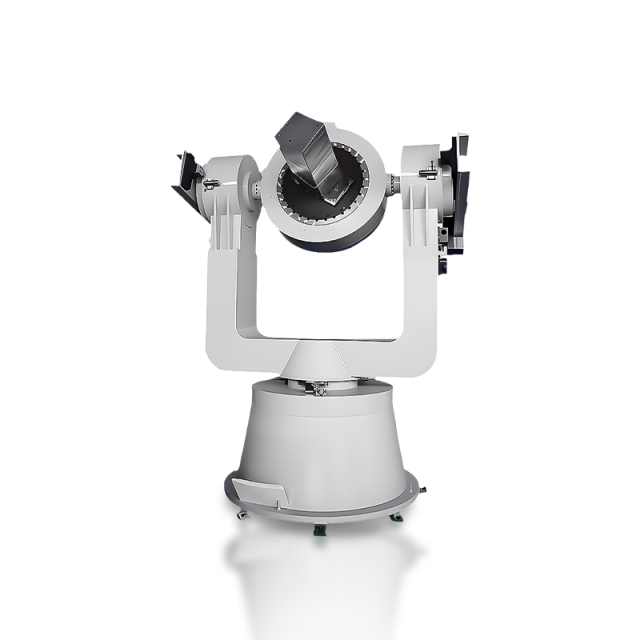

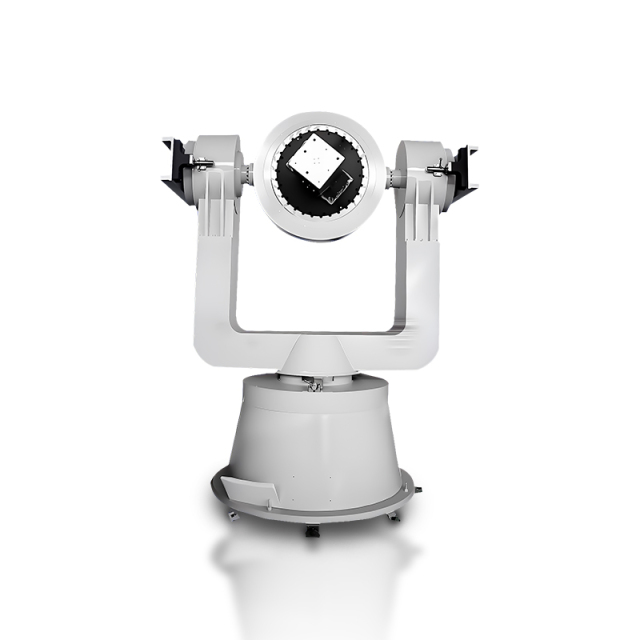

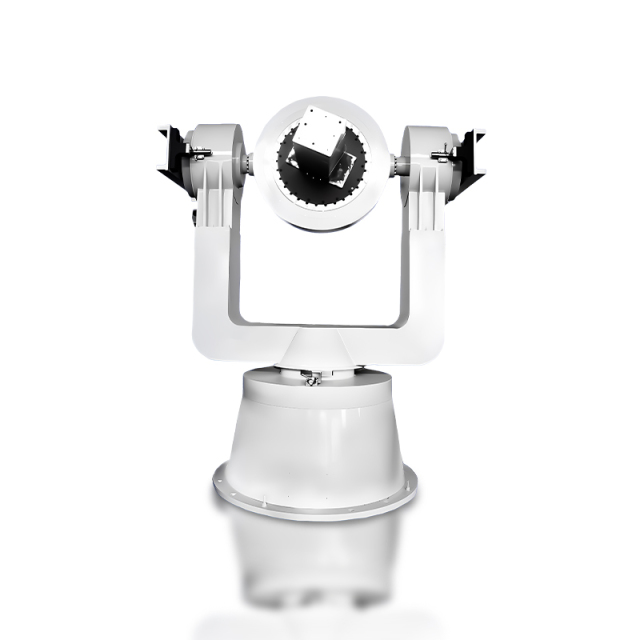

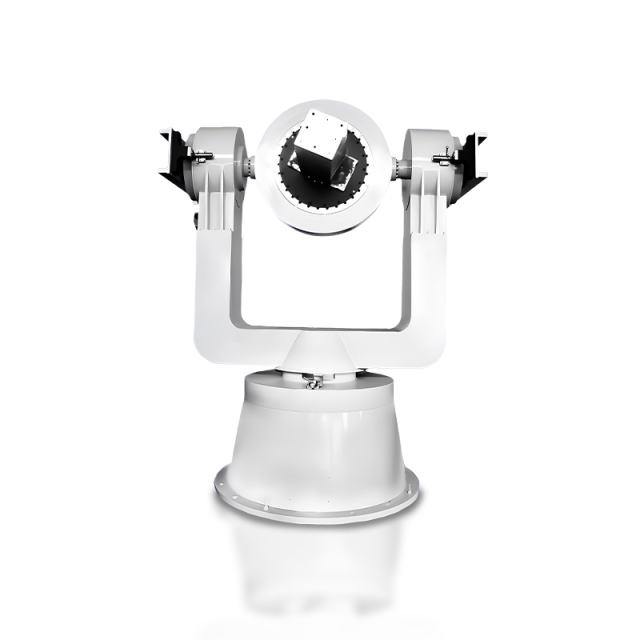

| Mechanical structure | Vertical structure, |
| Outer frame is U-shaped, | |
| Middle frame is U-shaped, | |

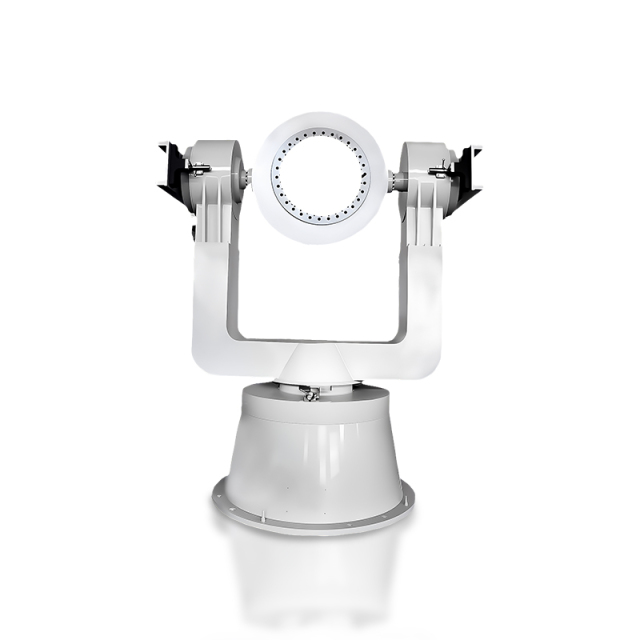

| Inner frame is hollow "cylindrical" (O-shaped) | |
| Inner frame effective installation space diameter | ≥640 mm |
| Effective installation space diameter from the front of the turntable | 1200 mm |
| Angular range | Azimuth: -120° ~ 120° |
| Pitch: -70° ~ 70° | |
| Roll: 0° ~ 360° | |
| Maximum load | Not less than 500 kg |
| Angular velocity | Not less than 100 °/s |
| Angular acceleration | ≥100 °/s² |
| Static position accuracy | ≤10 ′ (arcminutes) |
| Position repeatability accuracy | ≤5 ″ (arcseconds) |
