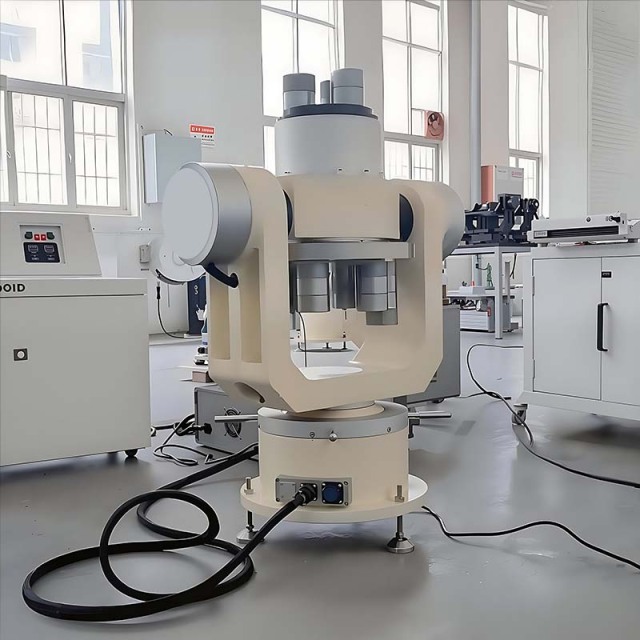

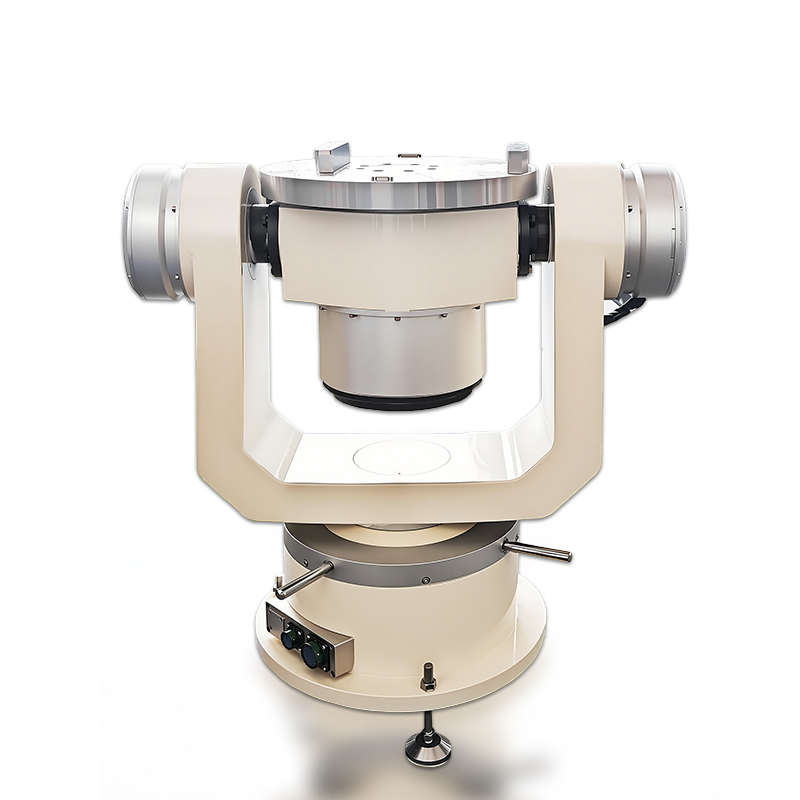

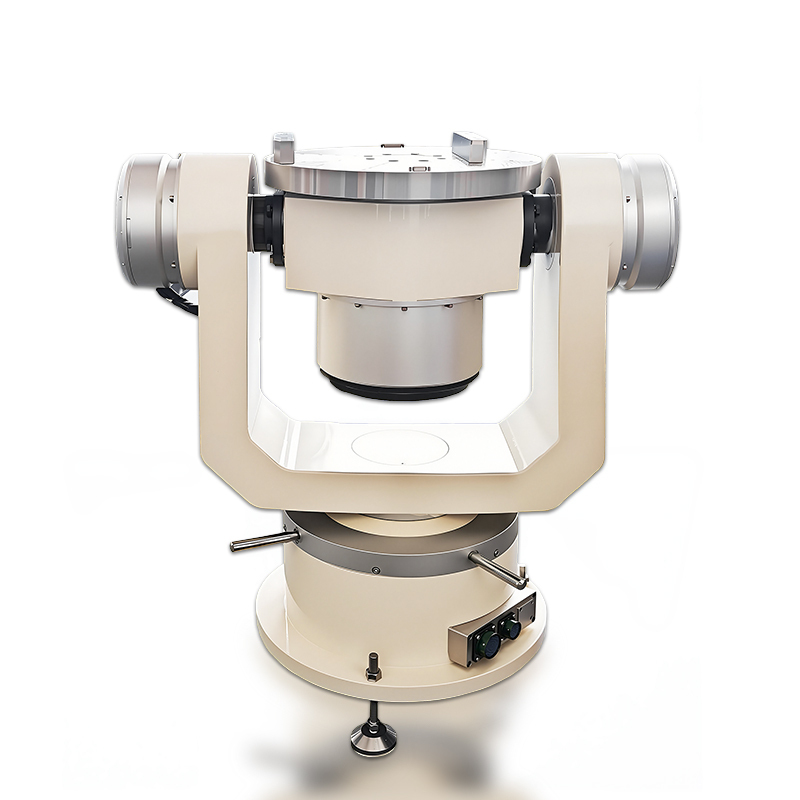

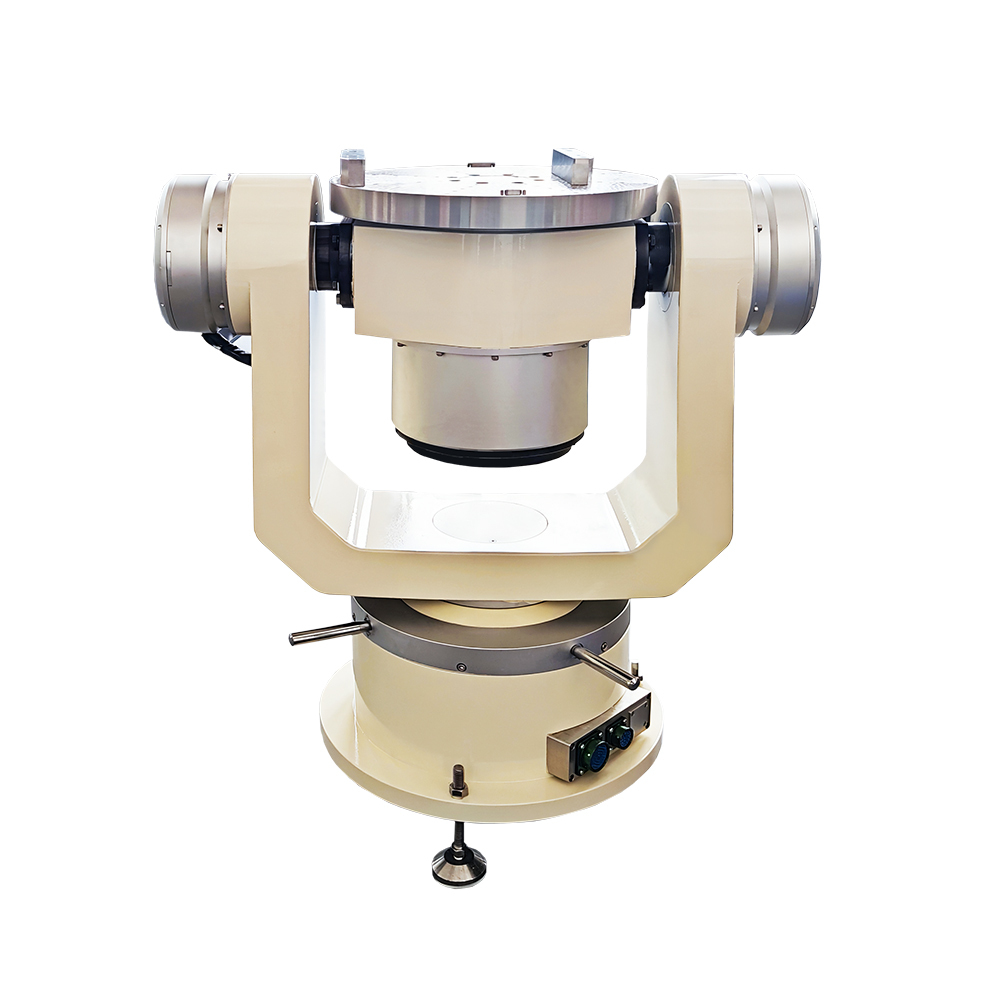

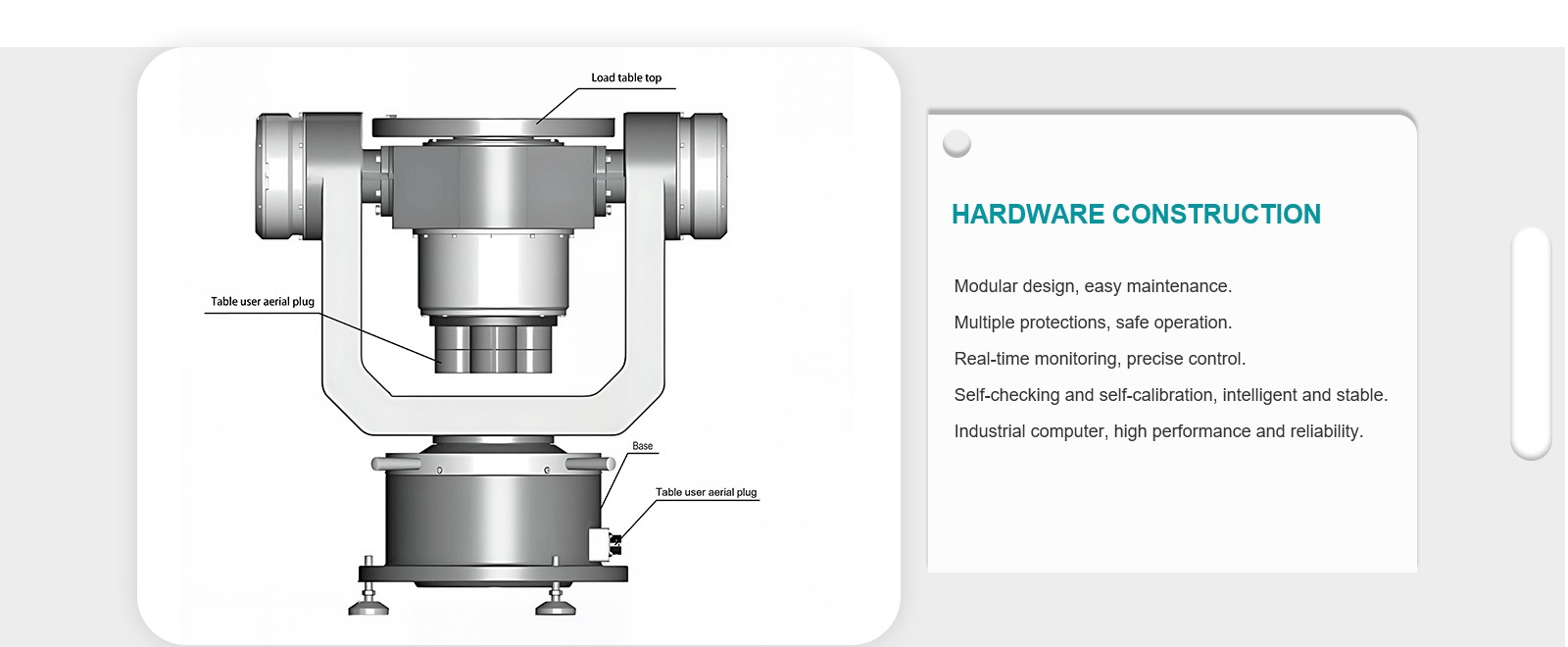

| Technical Specifications | |
|---|---|
| 2.1 Countertop and Load | |

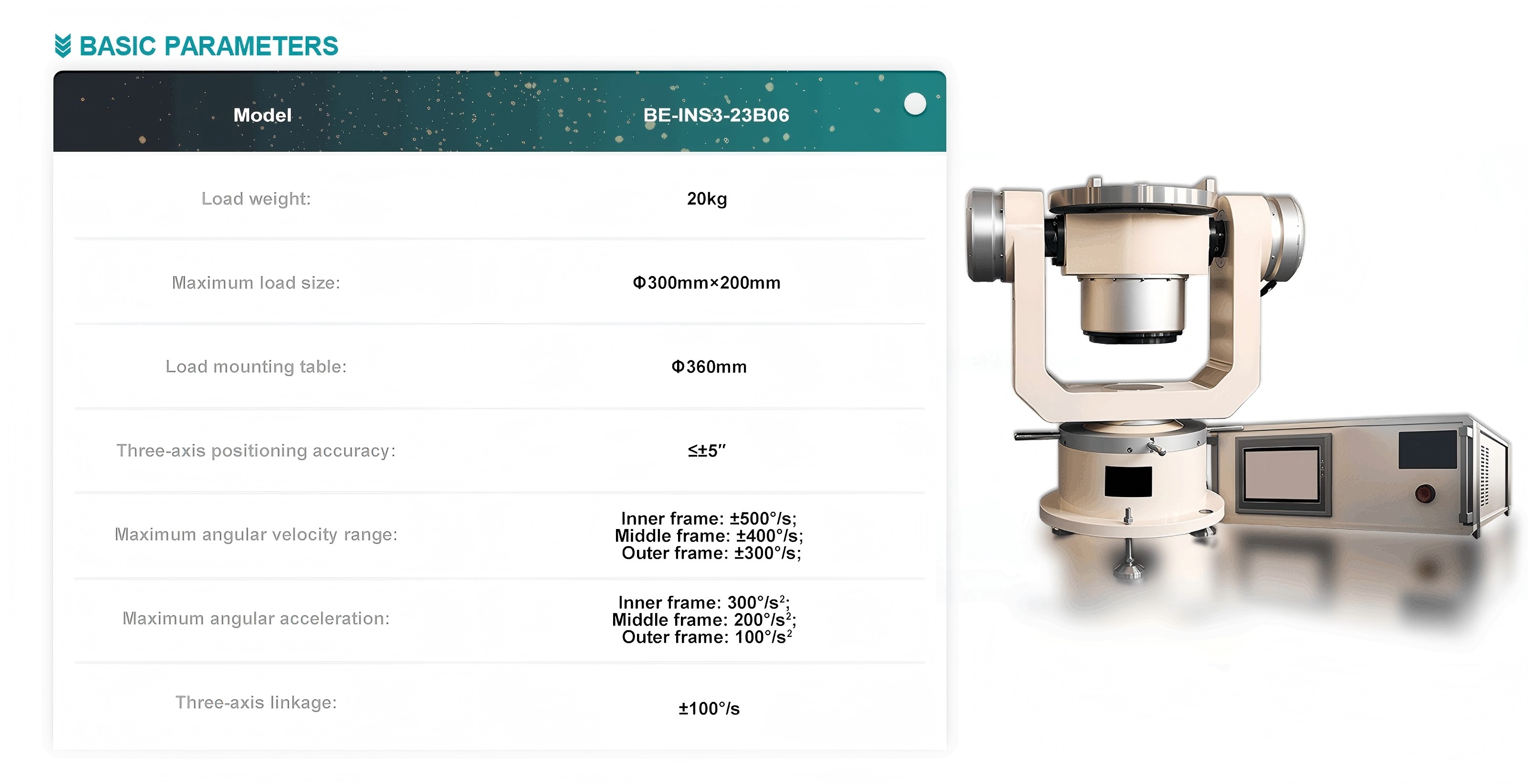

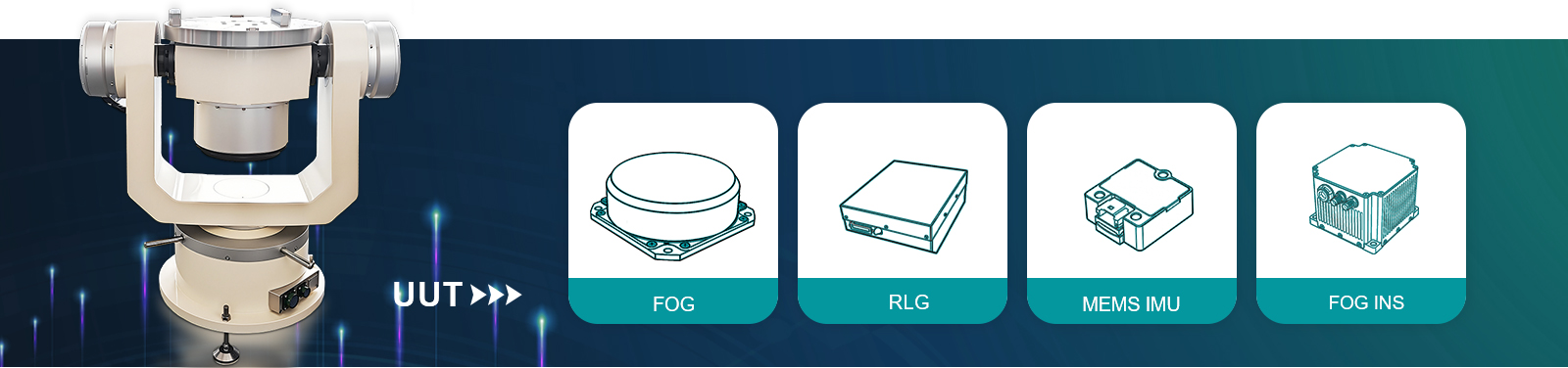

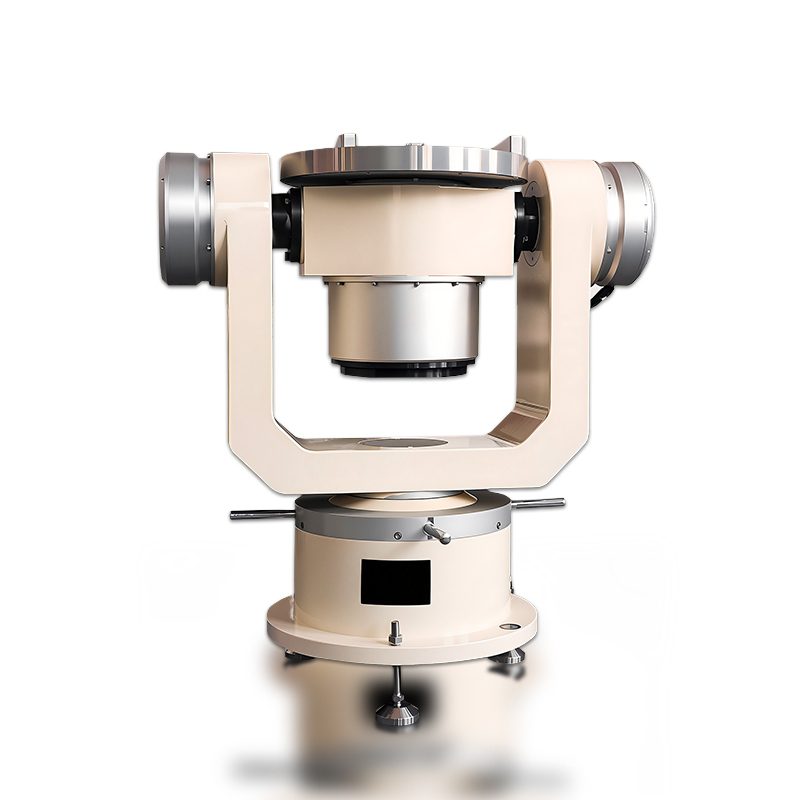

| Rated Load Weight | 20 kg |
| Maximum Load Dimensions | Φ300 mm × 200 mm |
| Countertop (Mounting Surface) | Φ360 mm, Stainless Steel |
| Countertop Flatness | ≤ 0.02 mm |
| Countertop Face Runout | ≤ 0.02 mm |
| Countertop Mounting Screw Holes | M6, Pitch 25 mm |
| 2.2 Main Technical Specifications | |
| Three-Axis Position Accuracy | ≤ ±5″ |
| Three-Axis Angular Position Repeatability | ≤ ±3″ |
| Three-Axis Rotation Axis Perpendicularity | ≤ ±5″ |
| Three-Axis Rotation Angle Range | 360° Continuous Rotation |
| Three-Axis Rotation Axis Intersection Accuracy | Within a Φ0.5 mm Sphere |
| Equipment Weight | Approx. 120 kg |
| Maximum Angular Rate Range | Inner Frame: ±500°/s Middle Frame: ±400°/s Outer Frame: ±300°/s Three-Axis Linkage: ±100°/s |
| Maximum Angular Acceleration | Inner Frame: 300°/s² Middle Frame: 200°/s² Outer Frame: 100°/s² |
| Three-Axis Rate Accuracy and Stability | 5×10⁻⁵ (360° average) 5×10⁻⁴ (10° average) 5×10⁻³ (1° average) |

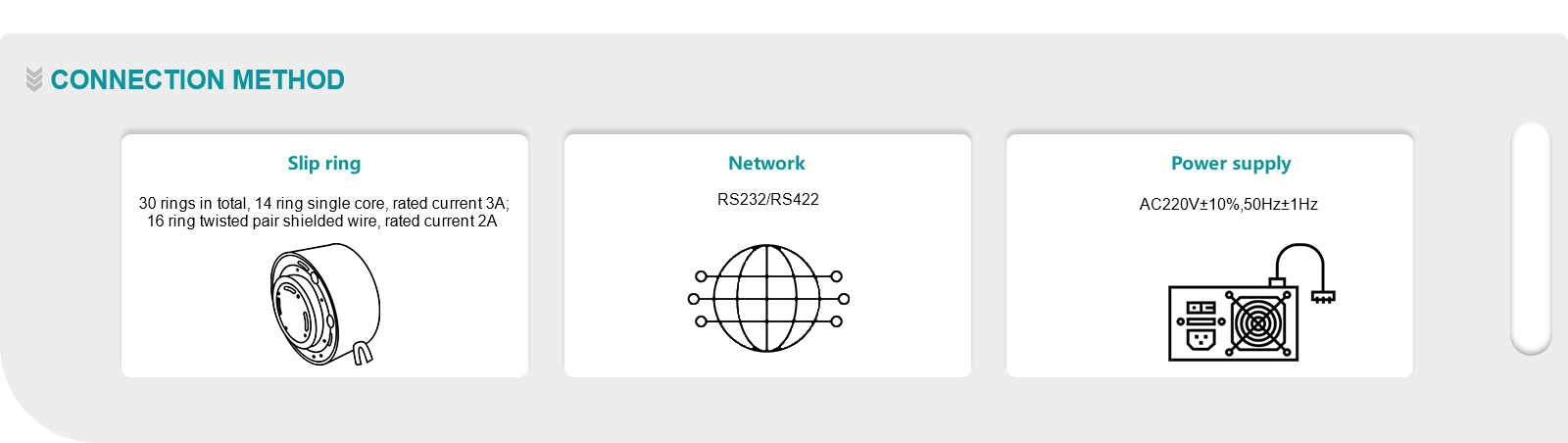

| Slip Ring | Total 30 channels: • 14 single-core, rated current 3 A • 16 twisted-pair shielded lines, rated current 2 A |

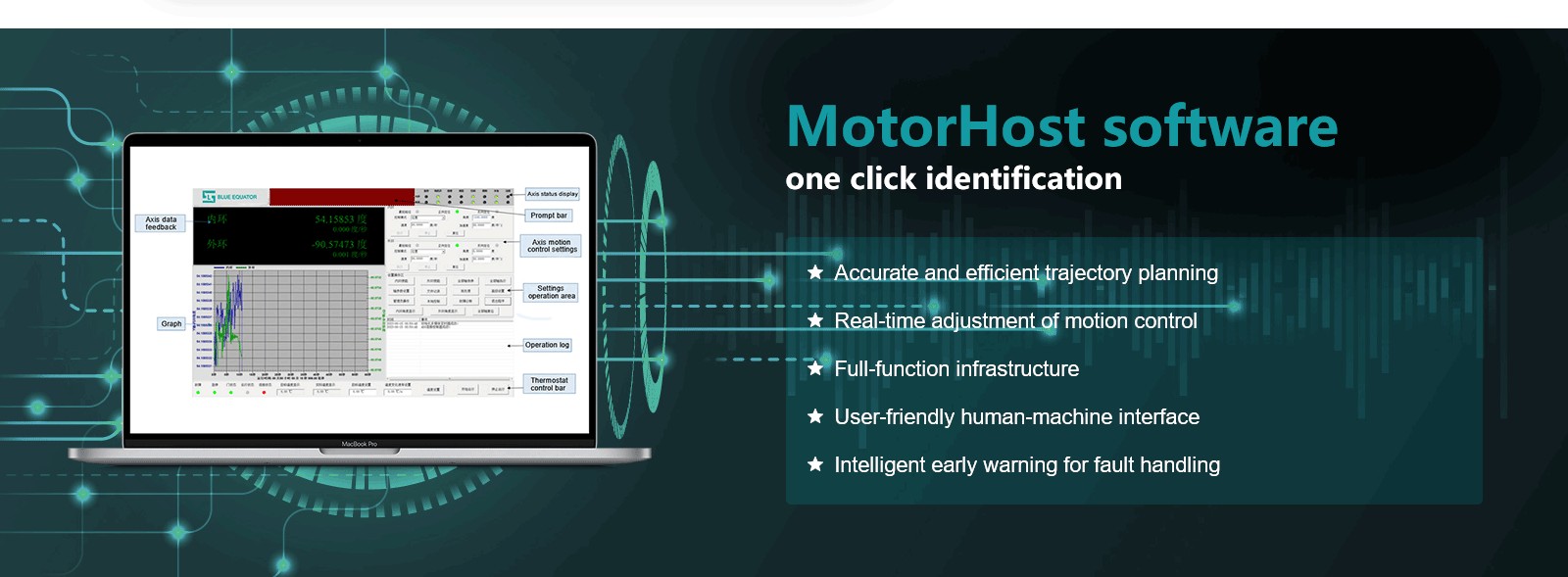

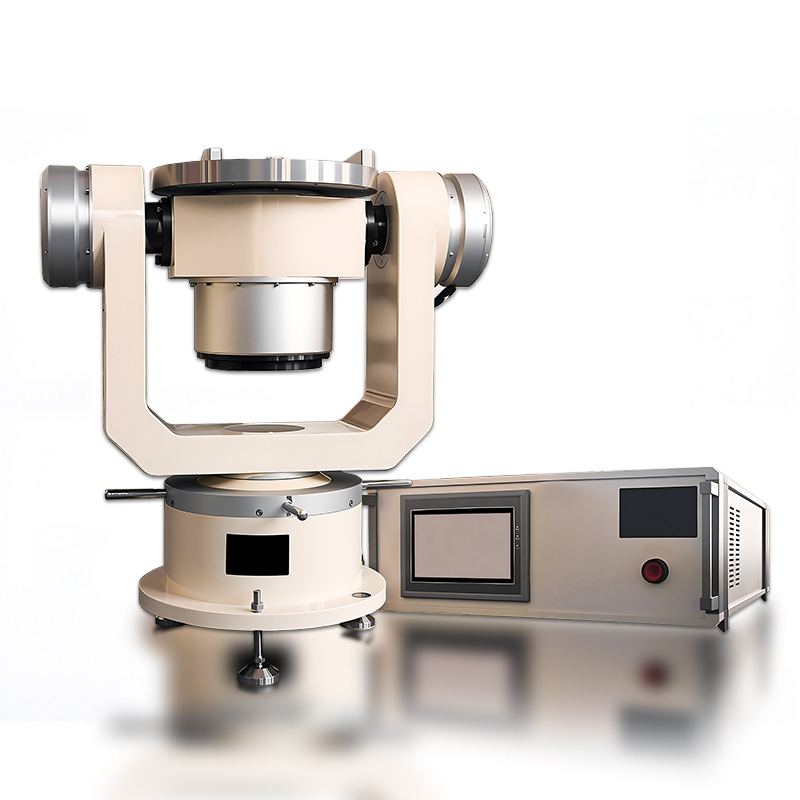

| Control Software | Computer-automated status control, data acquisition, processing, and display |
| Communication Interface | RS232 / RS422 |
| 2.3 Operating Environment | |
| Power Supply | 220 V ±10% / 50 Hz |
| Ambient Temperature | -10 ℃ to 35 ℃ |
| Relative Humidity | ≤ 80% RH |
