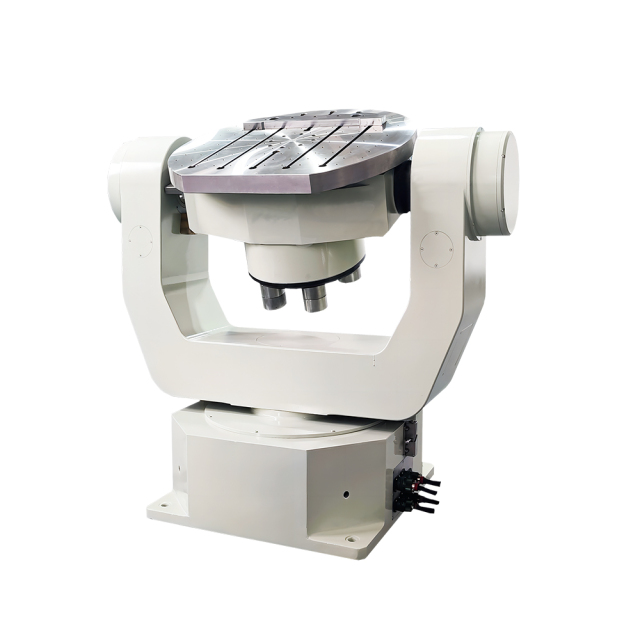

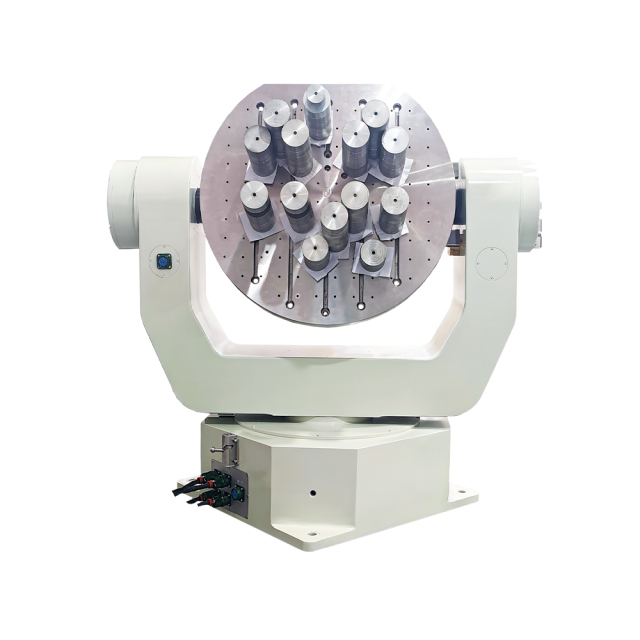

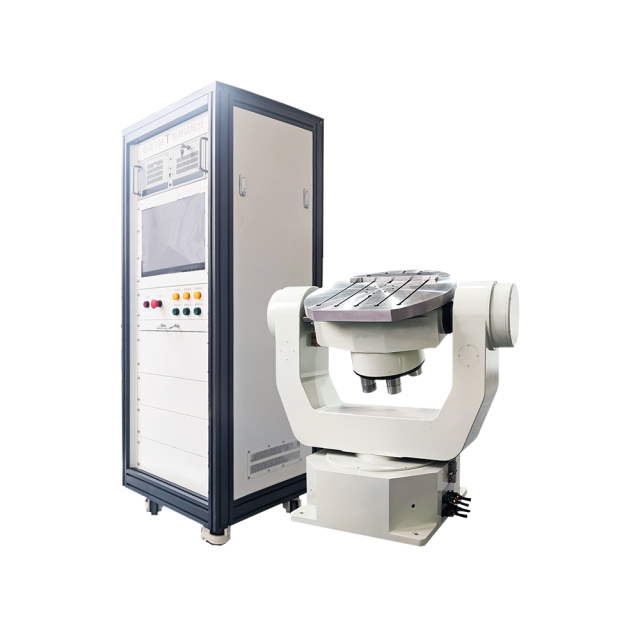

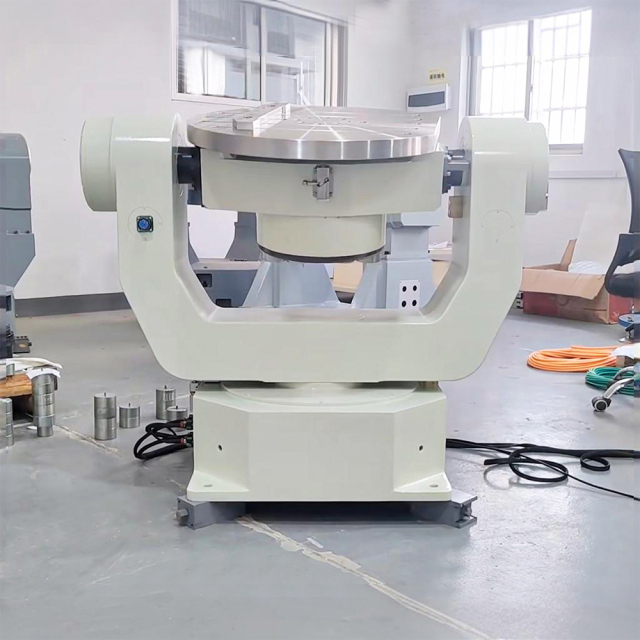

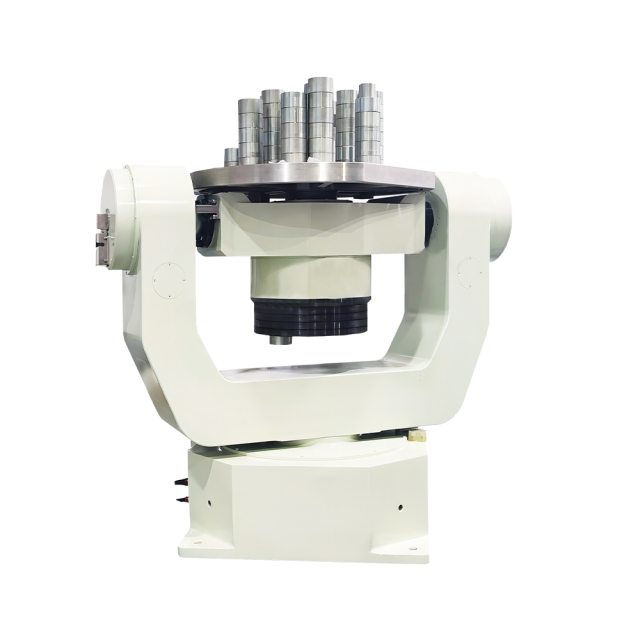

| Three-Axis Turntable | |

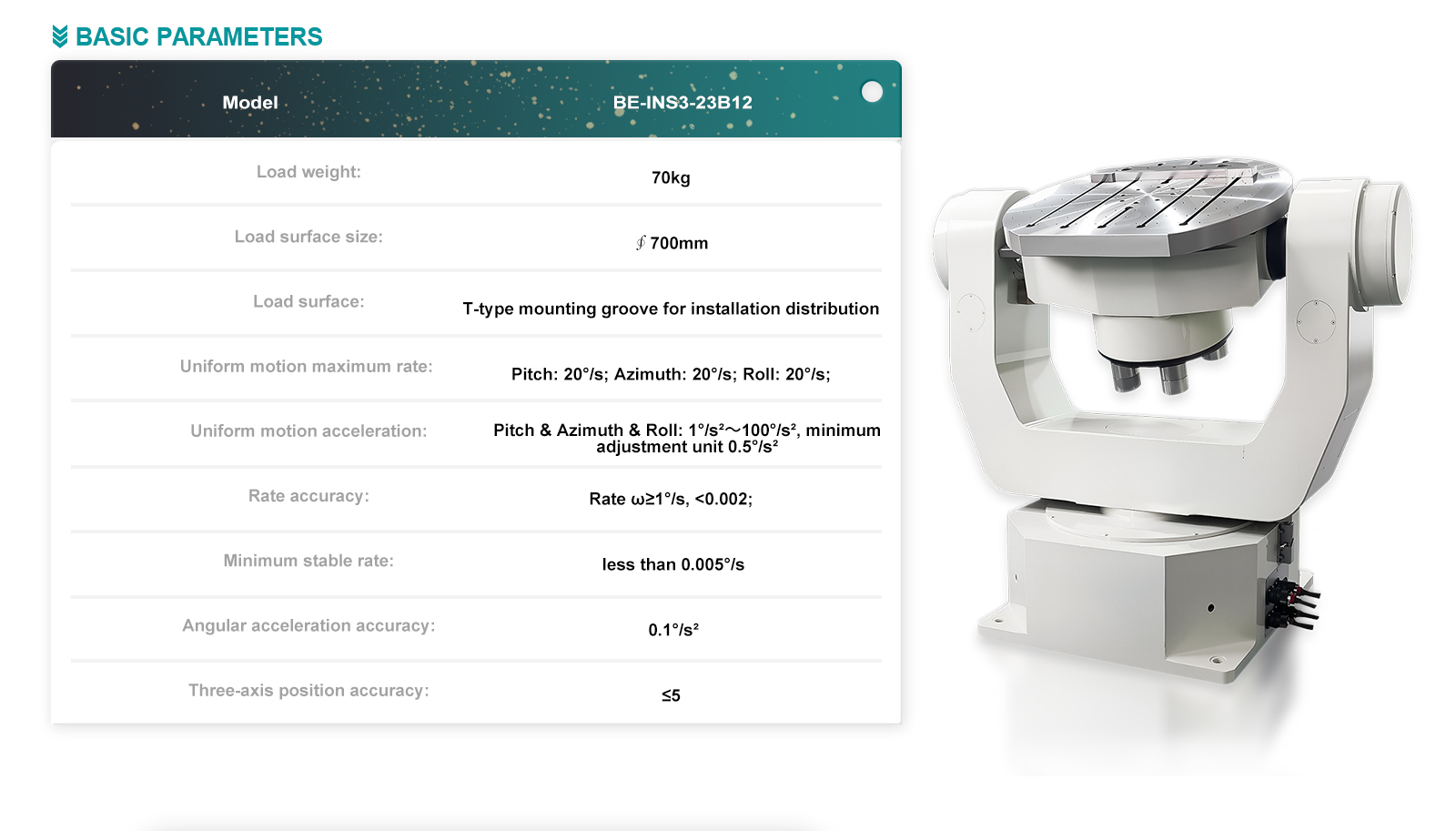

| Technical Specifications | |
| Turntable Load | Not less than 70 kg |
| Load Surface Size | Not less than φ700 mm |
| Load Surface | T-shaped mounting grooves for installation distribution |
| Maximum Rate of Uniform Motion |
|
|
|
|
|
| Uniform Motion Acceleration |
|
|
|
|
|
| Rate Accuracy | When rate ω < 1°/s: less than 1 × 10⁻² |
| When rate ω ≥ 1°/s: less than 2 × 10⁻³ | |
| Rate Stability | When rate ω < 1°/s: less than 2 × 10⁻² |
| When rate ω ≥ 1°/s: less than 5 × 10⁻³ | |
| Rate Resolution | Less than 0.001°/s |
| Minimum Stable Rate | Less than 0.005°/s |
| Angular Acceleration Accuracy | 0.1°/s² |
| Three-Axis Position Accuracy | Not more than 5″ (arcseconds) |
