Indicator name |
Indicator parameters |
|

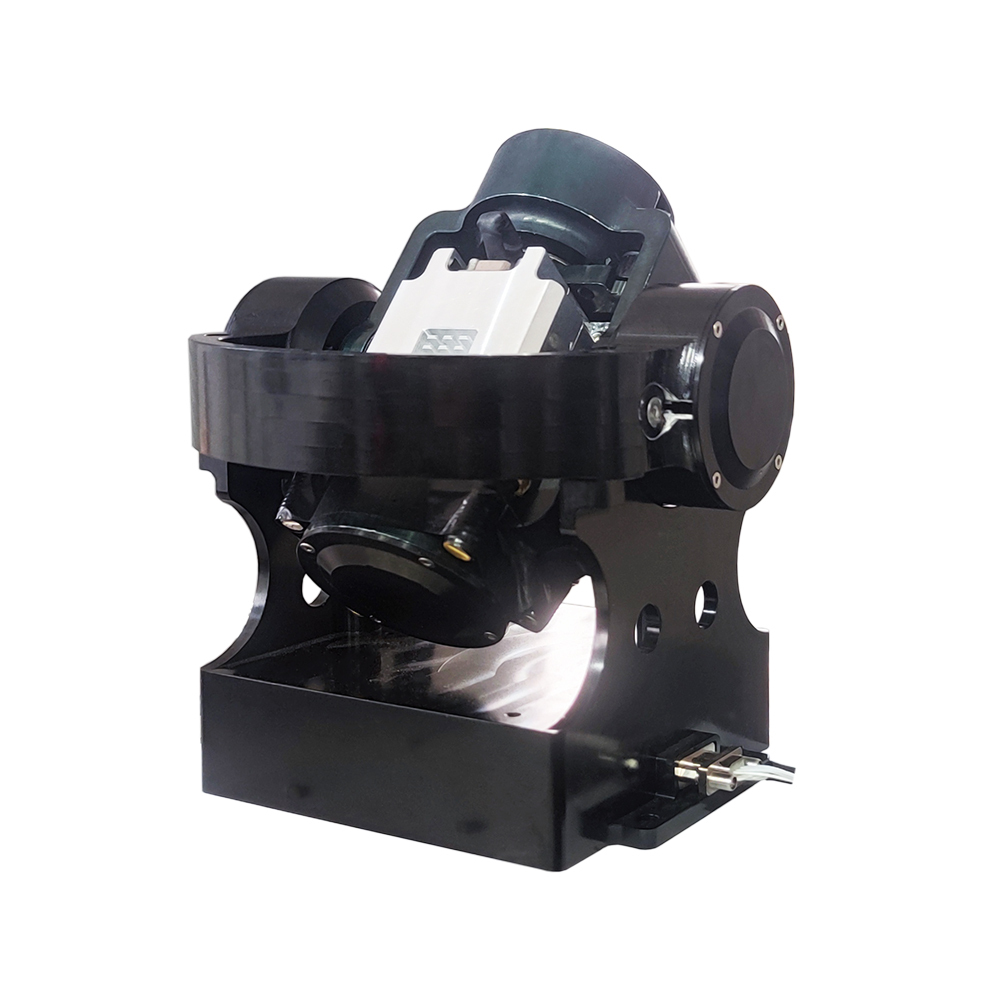

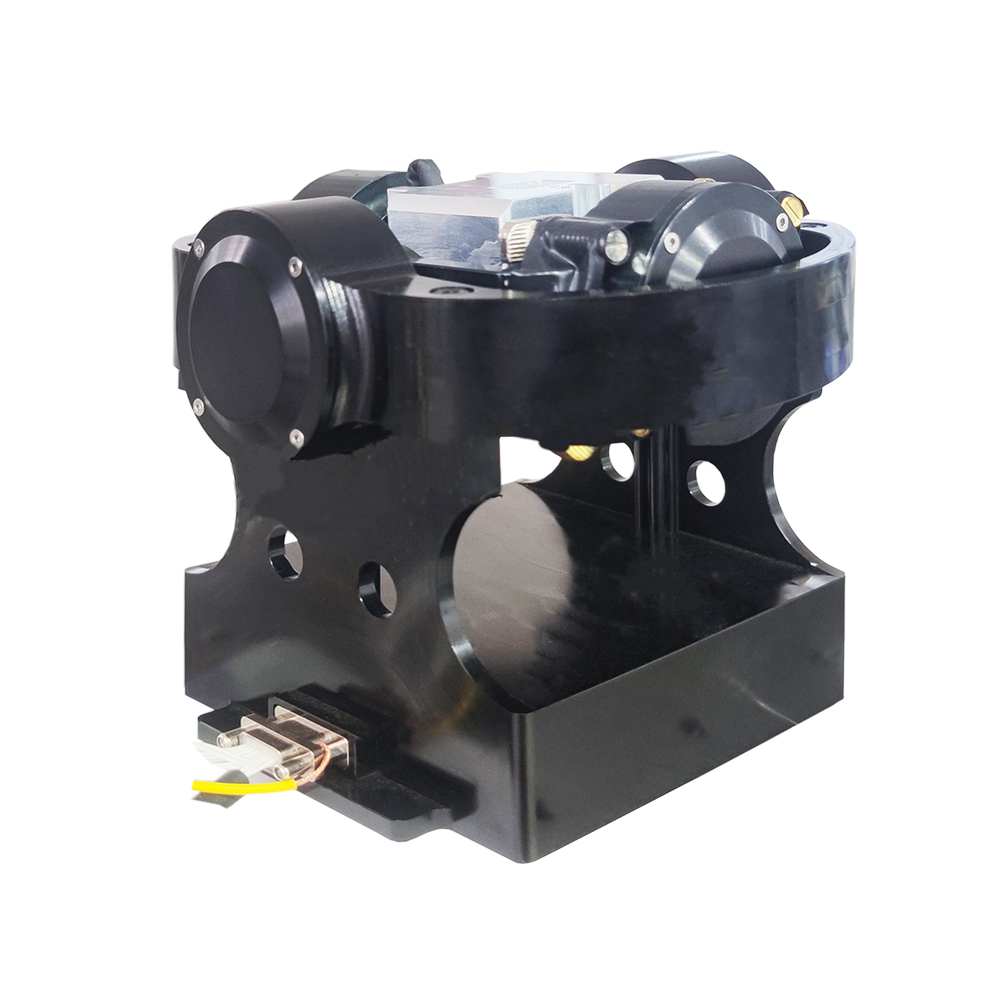

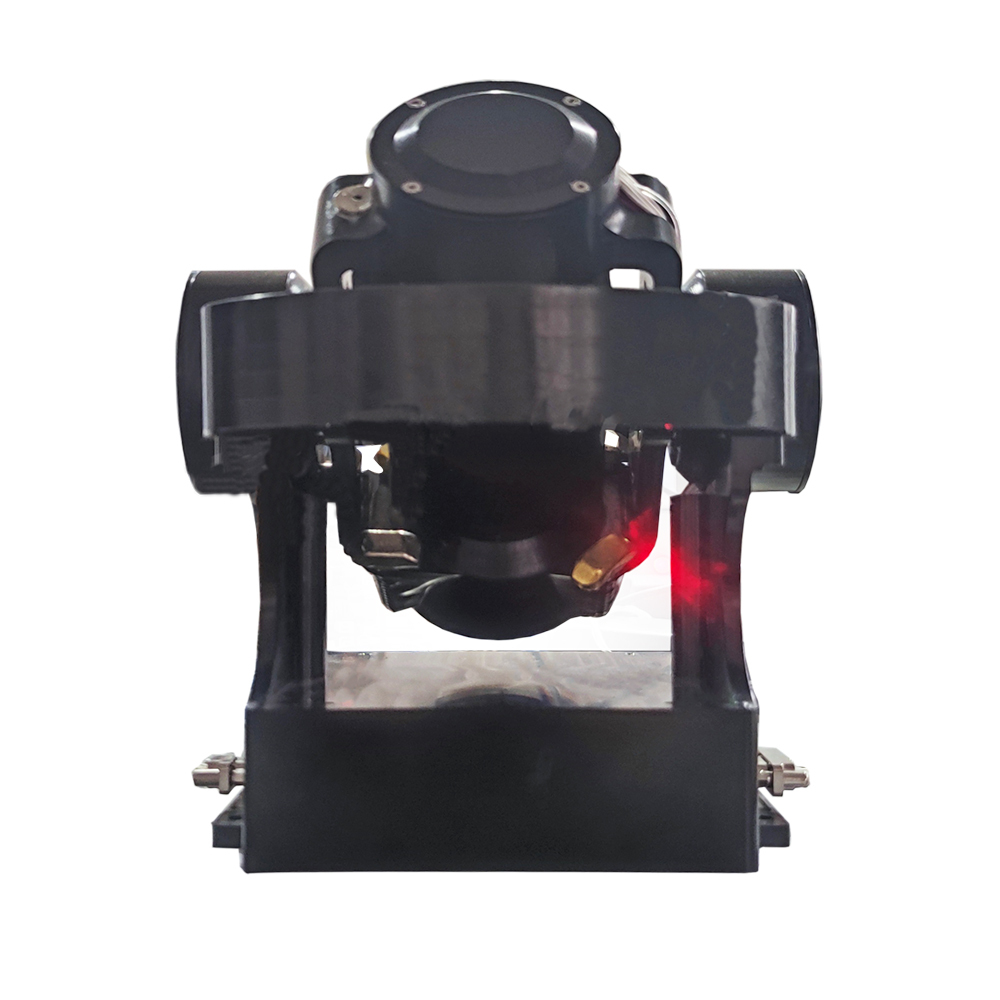

Structure |
Double axis |
|
Rate range |
0.01°/s ~ 50°/s |
|
Rate stability |
0.05°/s (1 second average) |
|
Position accuracy of two axis rotation mechanism |
±1' (60") |
|
Locking scheme |
Mechanical lock (electric control), unit set (zero, horizontal position is 0) lock |
|
Angle range |
Maximum rotation angle greater than 270° |
|
Time synchronization |
IMU sends the time synchronization signal to the dual-axis rotation mechanism, and supports the dual-axis rotation mechanism and the IMU data synchronization output |
|
Double axis transposition mechanism installation |
Design the base for mechanism mounting |
|
Weight |
2-3kg |
|
Volume range |
Not larger than 150mm x 150mm x 150mm |
|
Communication method |
RS232/RS422 |
