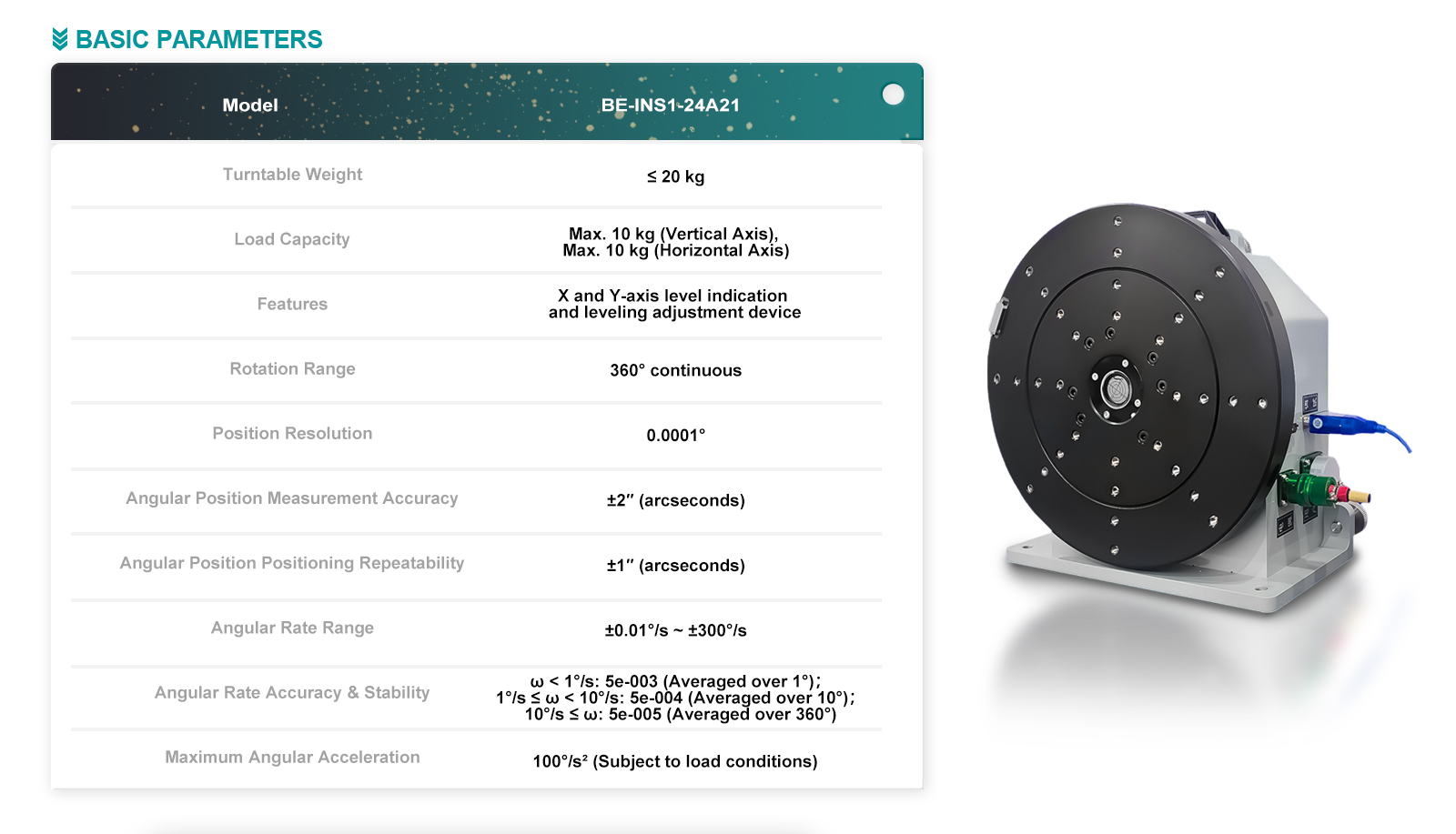

| Parameter | Specification |
| Platform Weight | ≤20kg |
| Load Capacity | Maximum 10kg (vertical), 10kg (horizontal) |

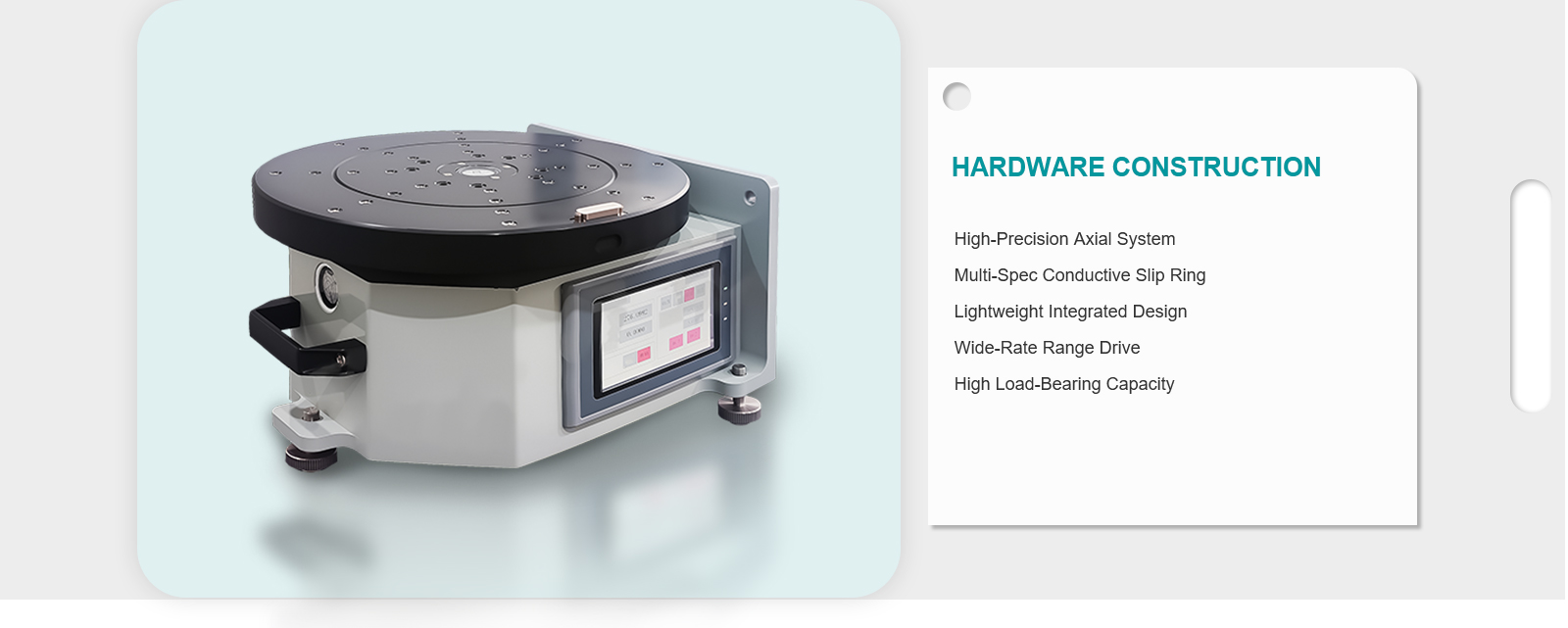

| Function | The turntable features X and Y level indicators and a leveling device |
| Rotational Range | 360° continuous |
| Position Resolution | 0.0001° |
| Angular Position Measurement Accuracy | ±2" |
| Angular Position Control Repeatability | ±1" |
| Angular Rate Range | ±0.01°/s to ±300°/s |
| Angular Rate Accuracy and Rate Smoothness | ω < 1°/s: 5e-003 (1° average) 1° ≤ ω < 10°/s: 5e-004 (10° average) 10°/s ≤ ω: 5e-005 (360° average) |
| Maximum Angular Acceleration | 100°/s² |
