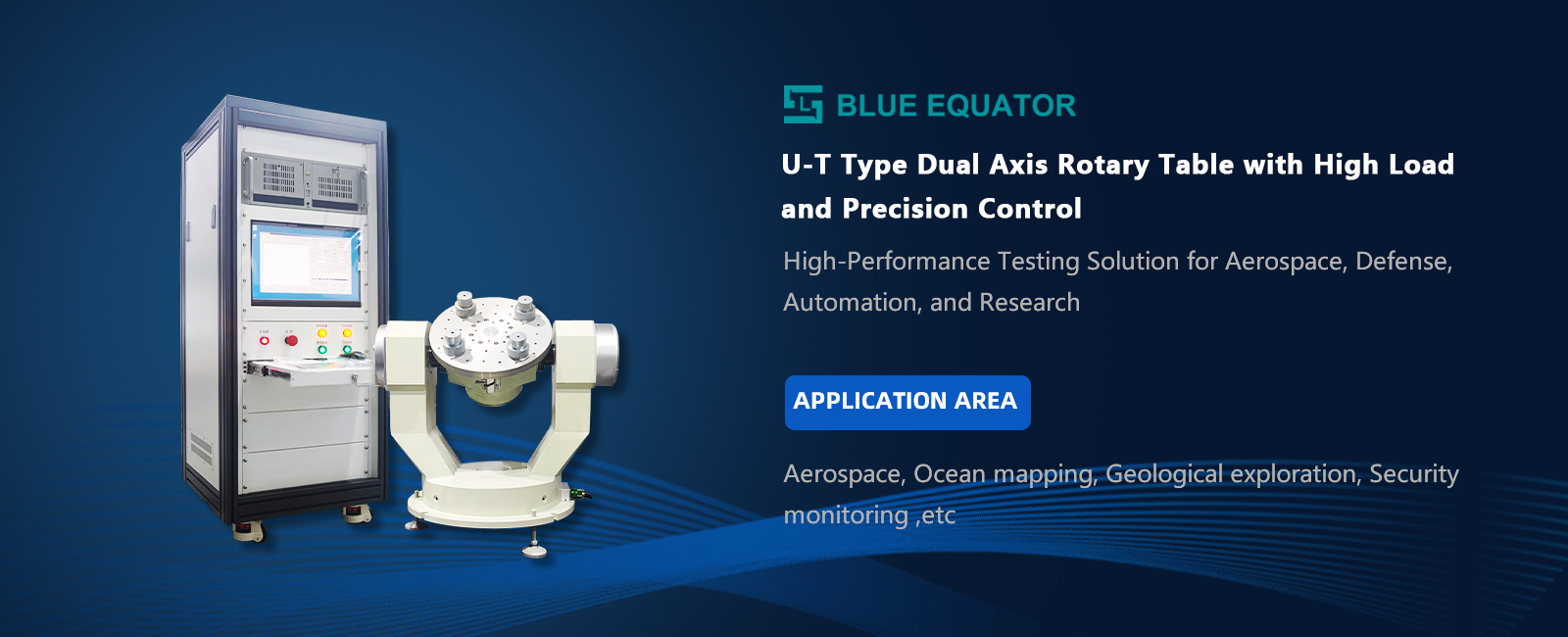

Recently, the U-T type automated dual-axis position test turntable has emerged as a leading high precision testing device in the market due to its outstanding performance and innovative design. This turntable boasts a rated load capacity of up to 40kg and features a load plate size of Φ400mm, equipped with "zero position" positioning pins, pin holes, and mechanical locking devices to ensure no deviation during testing, achieving optimal stability.
With a pitch angle range of -60° to +60° and an azimuth angle range of 0° to ±170°, the turntable offers a maximum uniform motion rate of 20°/s, a rate resolution of less than 0.001°/s, a minimum stable rate of less than 0.005°/s, a repeated positioning accuracy of no more than ±5″, and a non-perpendicularity of the two axes of no more than ±15″. These technical parameters highlight its superior performance in high precision testing.
The U-T type turntable is widely used in aerospace, defense and military, automation and robotics, optical and electronic equipment, and scientific research fields, suitable for inertial components R&D, MEMS sensors in-process testing, instruments calibration, and final inspection. Its high-precision sensors and control systems ensure stable and reliable test results in various complex testing environments, making it the ideal choice for high-precision testing needs.
